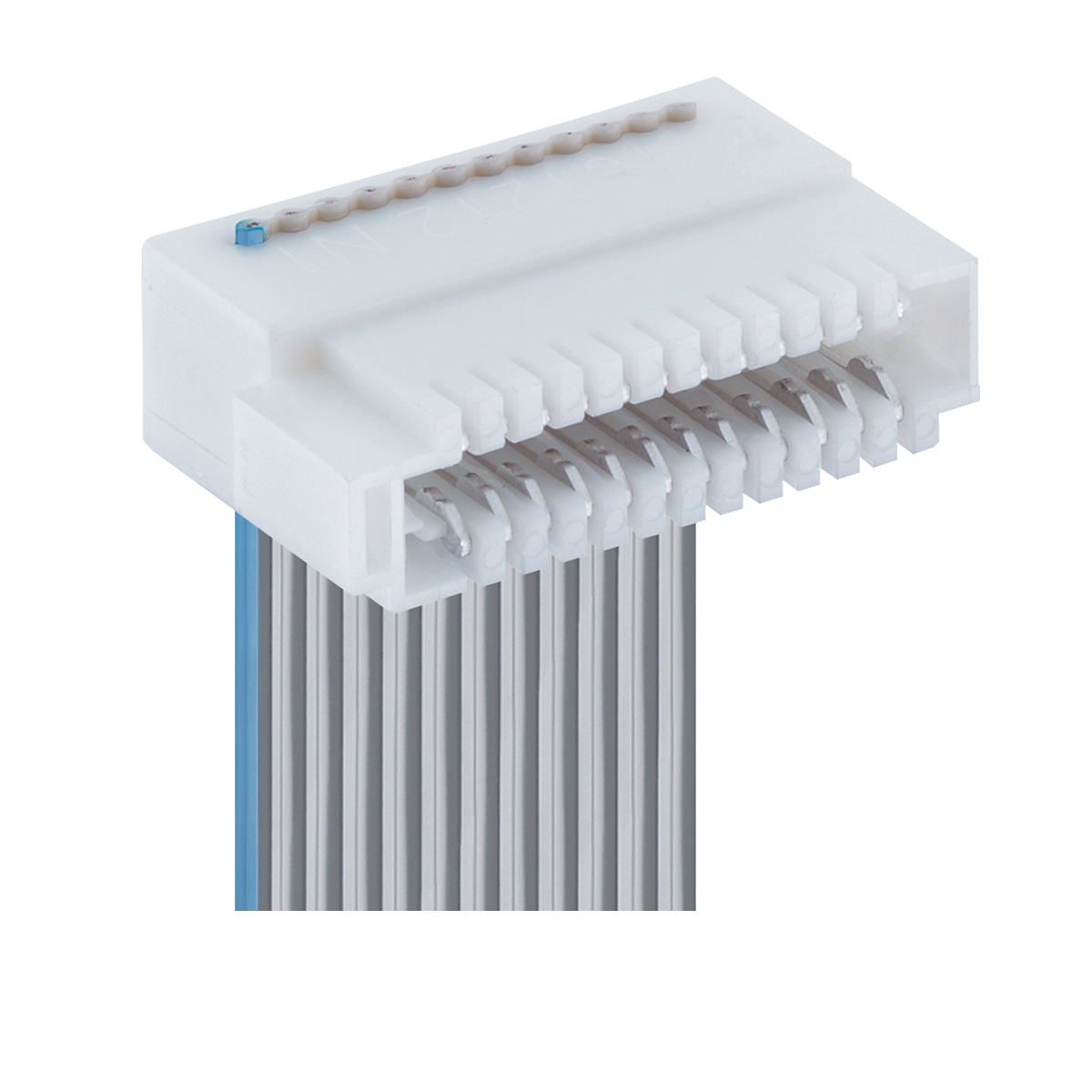

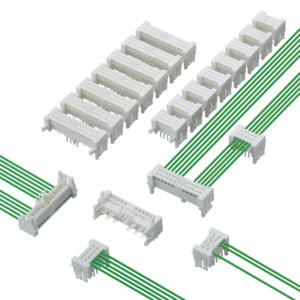

302299

Micromodul™ connector for direct mating, insulation displacement technology (IDT), with locking on printed circuit board by means of locking hooks and toes, with closed sides

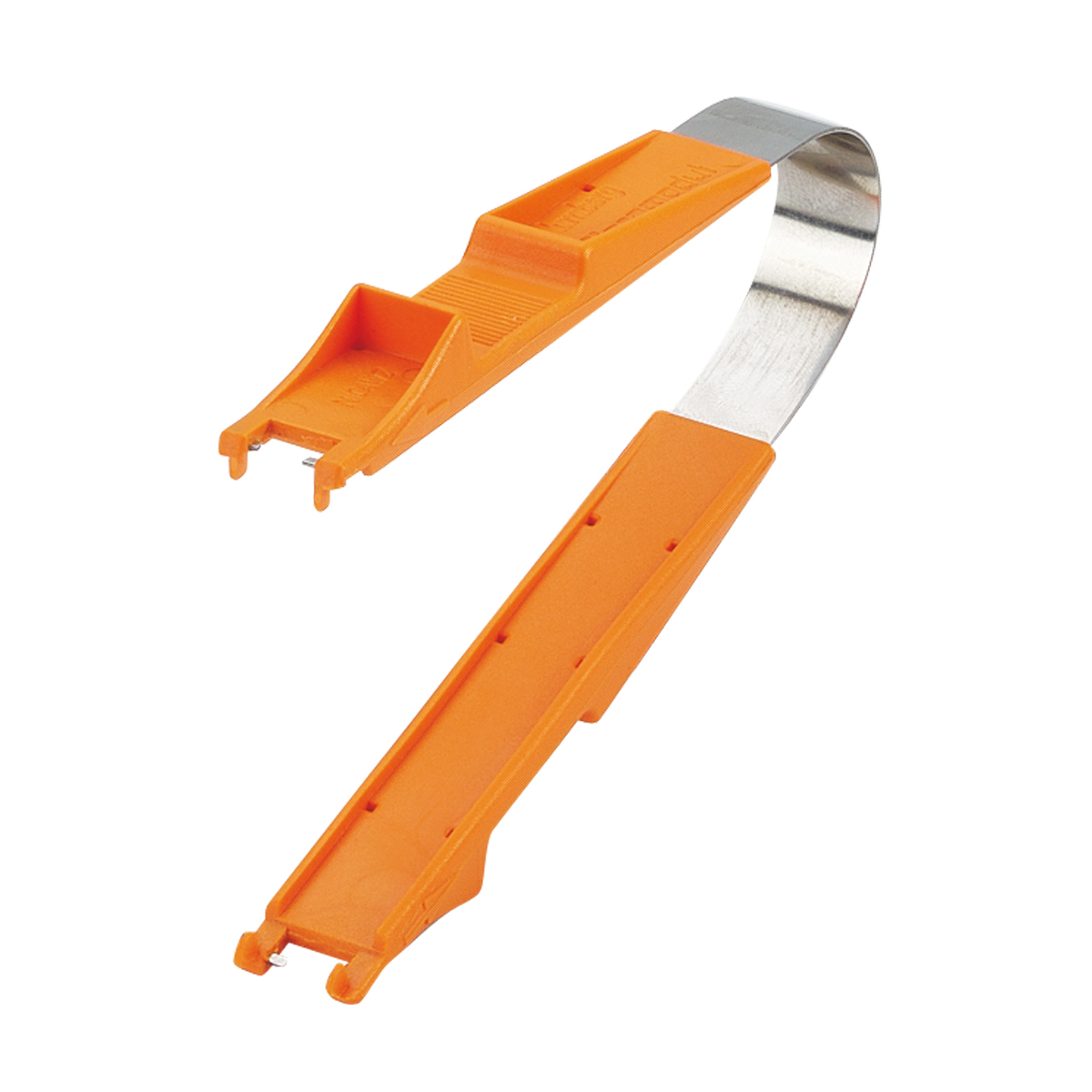

AZ30

Pull-off tongs for Micromodul™ connectors

MICA

Micromodul™ connector for indirect mating, insulation displacement technology (IDT), with lock, loose

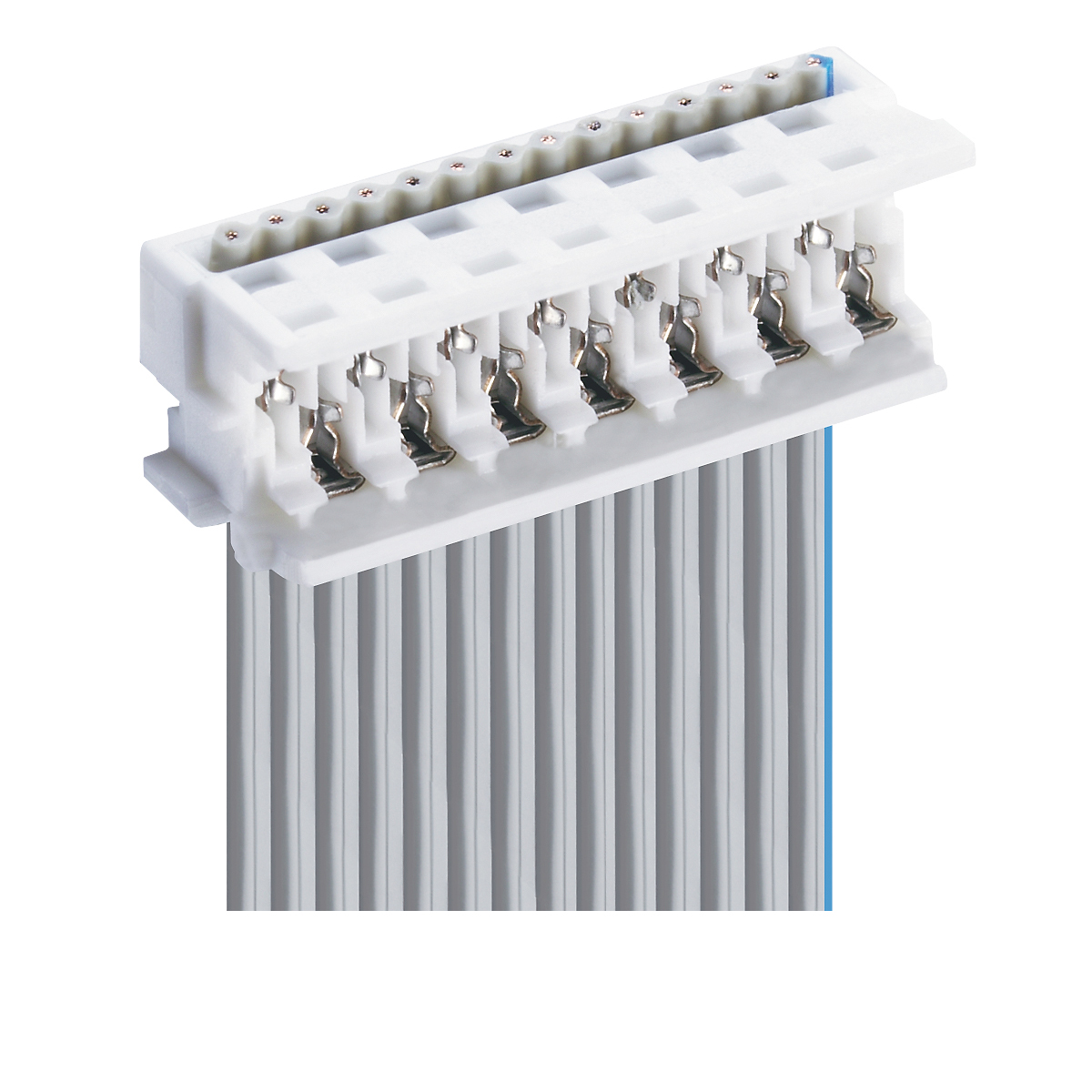

MICA VP3

Micromodul™ connector for indirect mating, insulation displacement technology (IDT), with lock MICA: loose, on reel

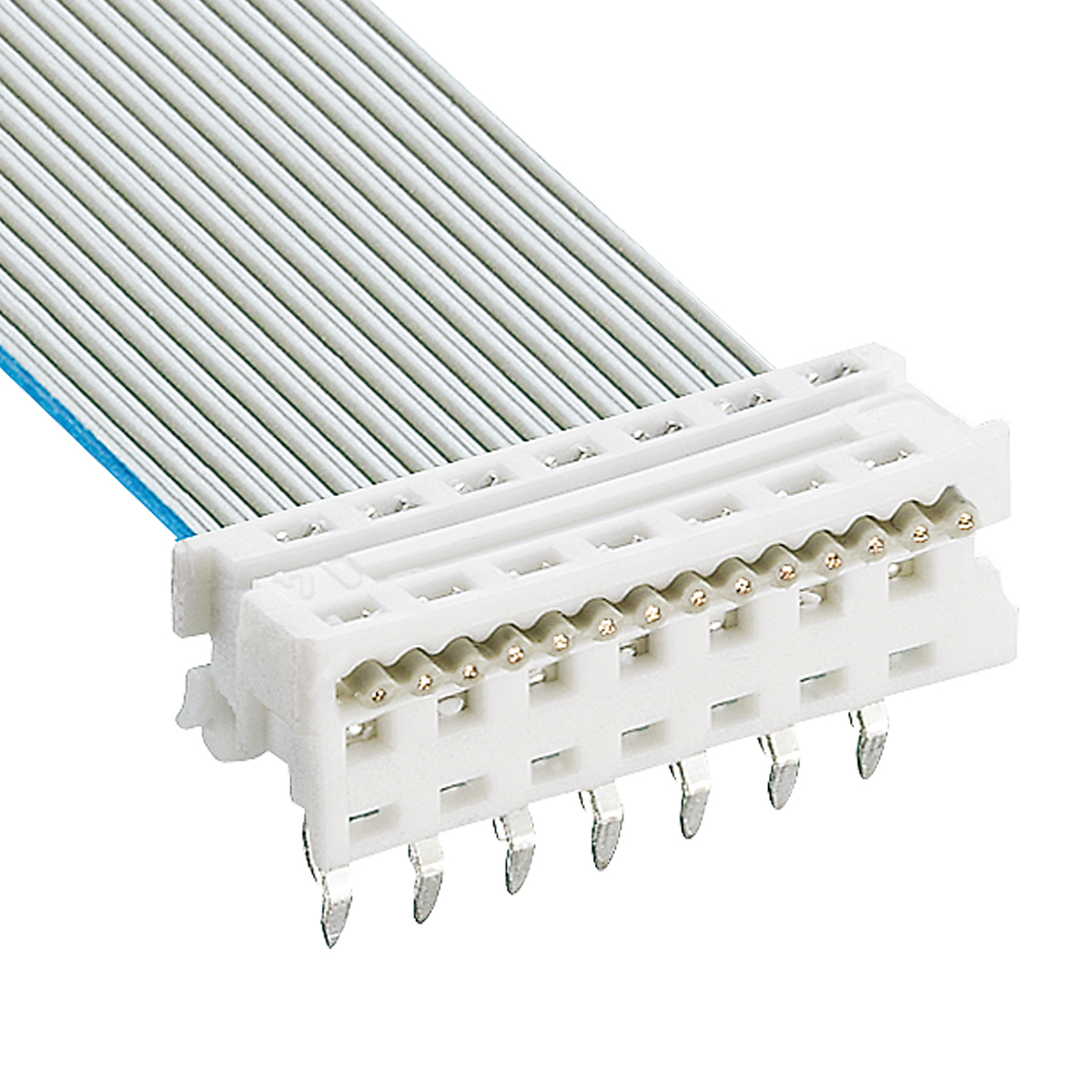

MICAL

Micromodul™ solder-in connector, insulation displacement technology (IDT), solder contacts dual row staggered

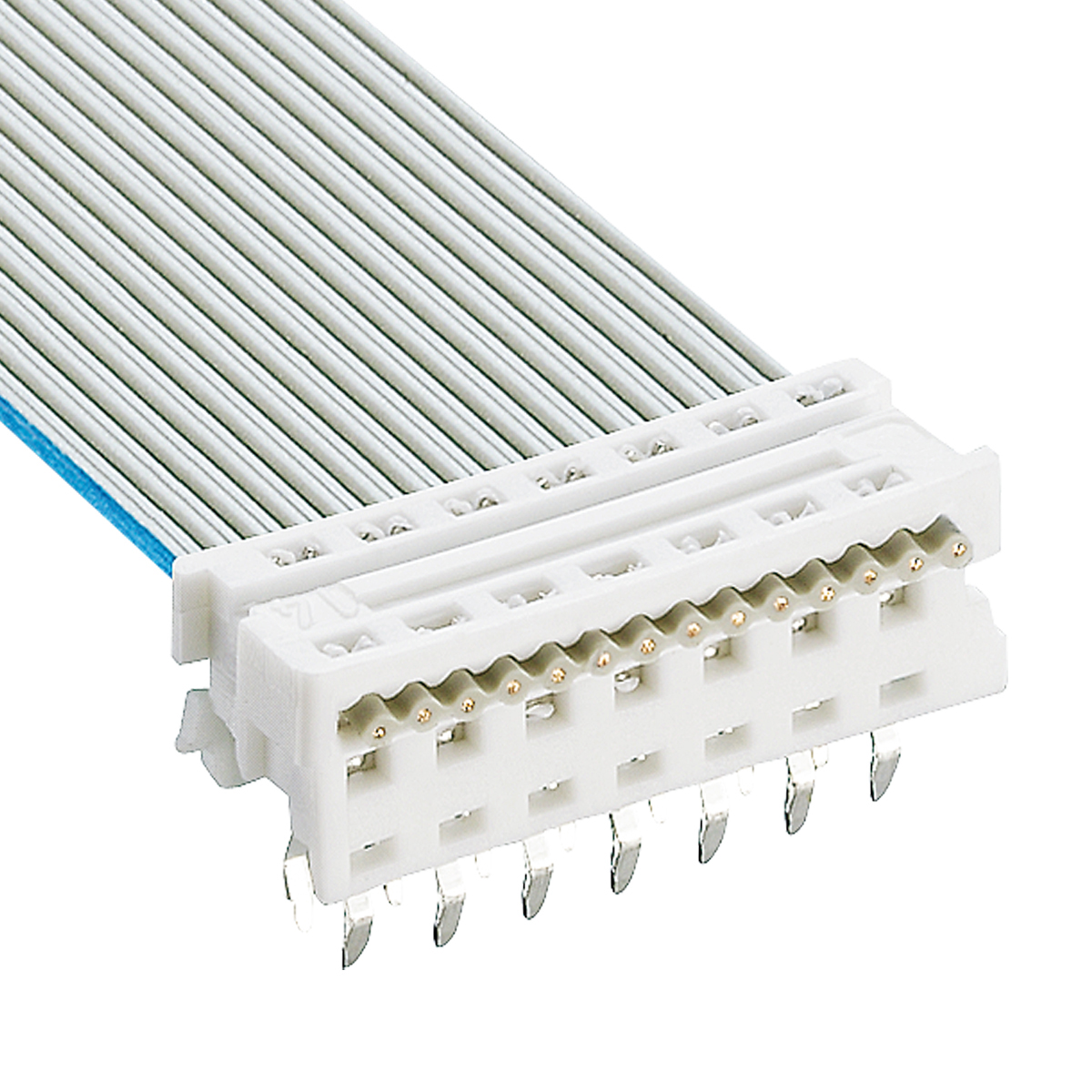

MICALD

Micromodul™ solder-in connector, insulation displacement technology (IDT), solder contacts dual row parallel

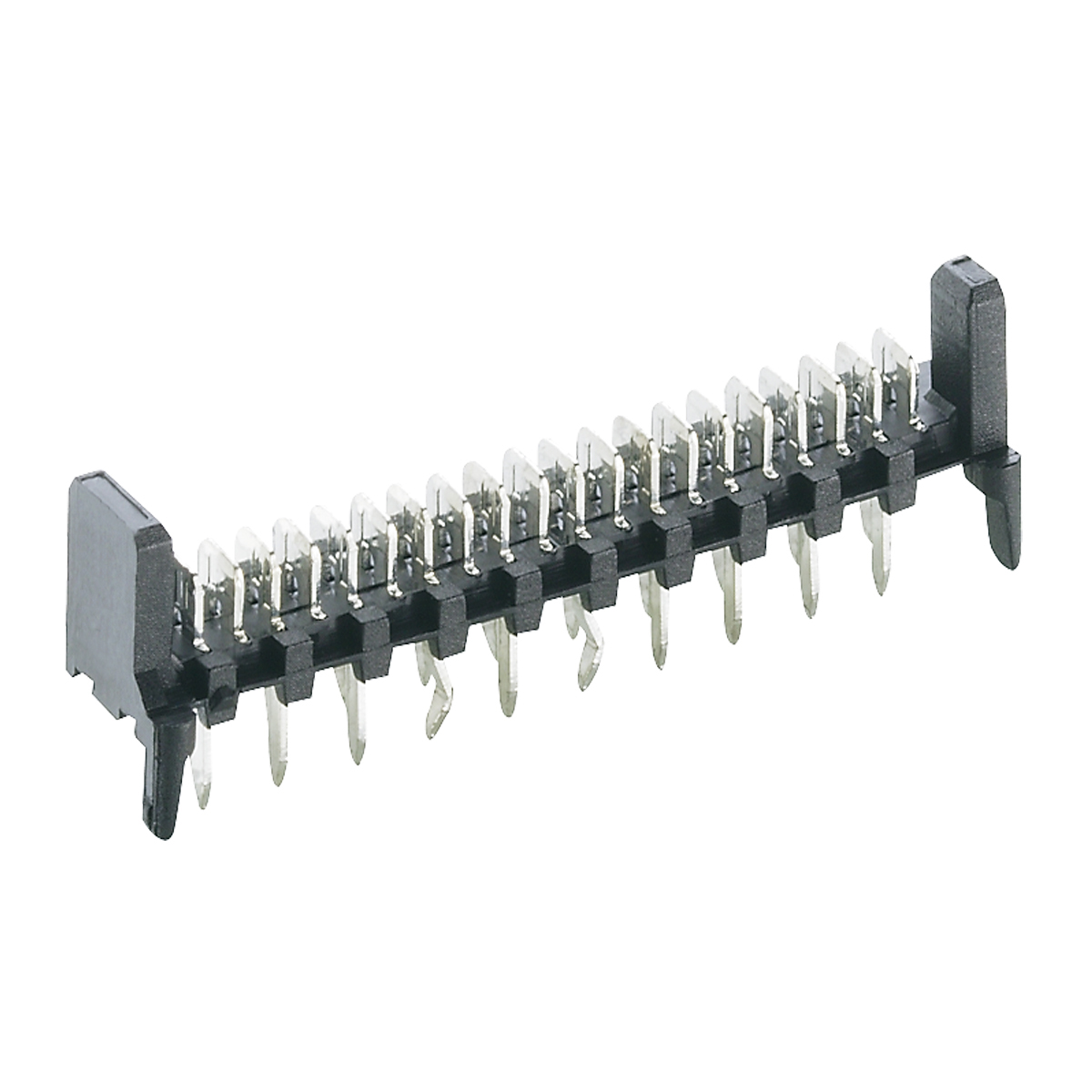

MICS

Micromodul™ tab header, upright, with retaining hooks, solder contacts dual row staggered

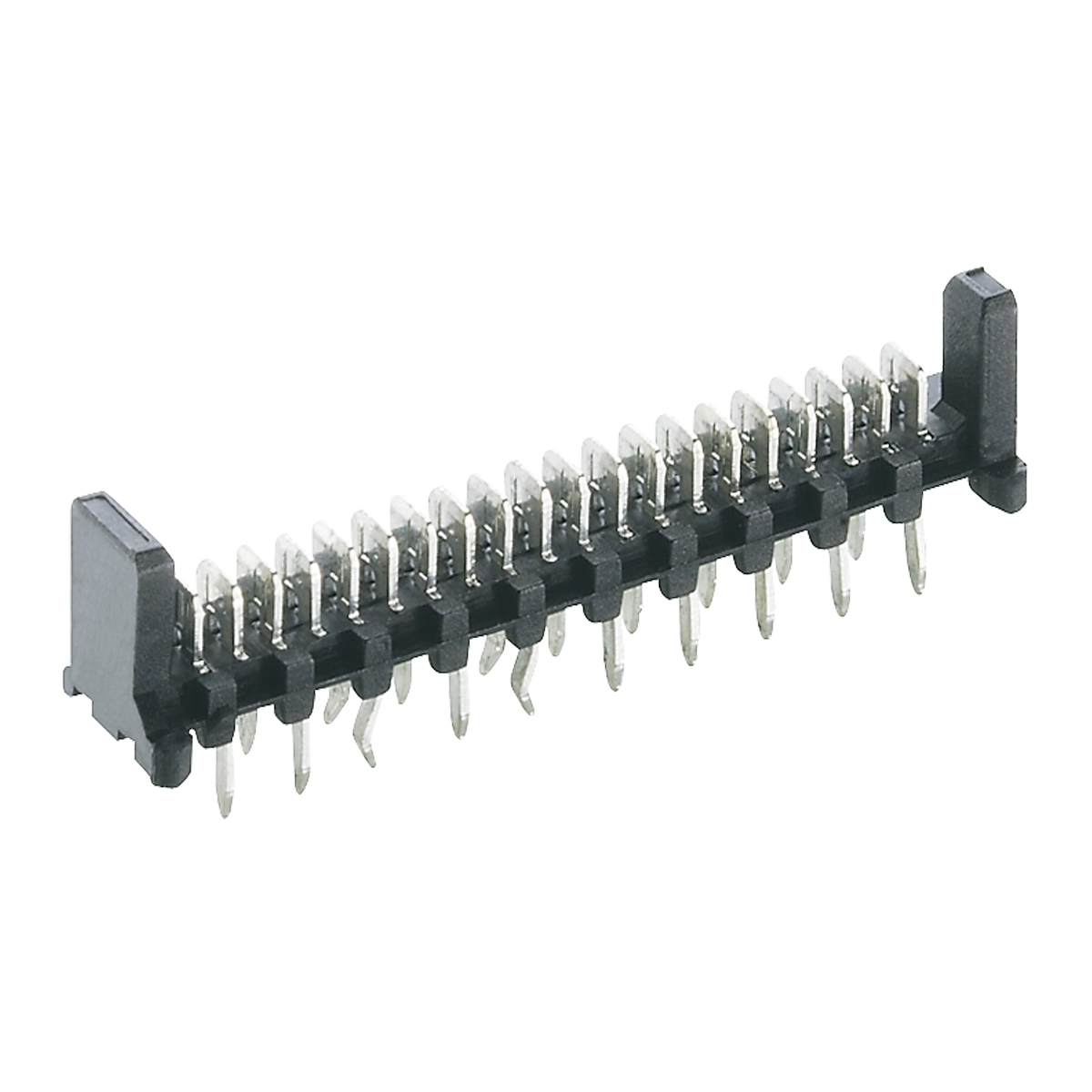

MICS-D

Micromodul™ tab header, upright, without retaining hooks, solder contacts dual row parallel

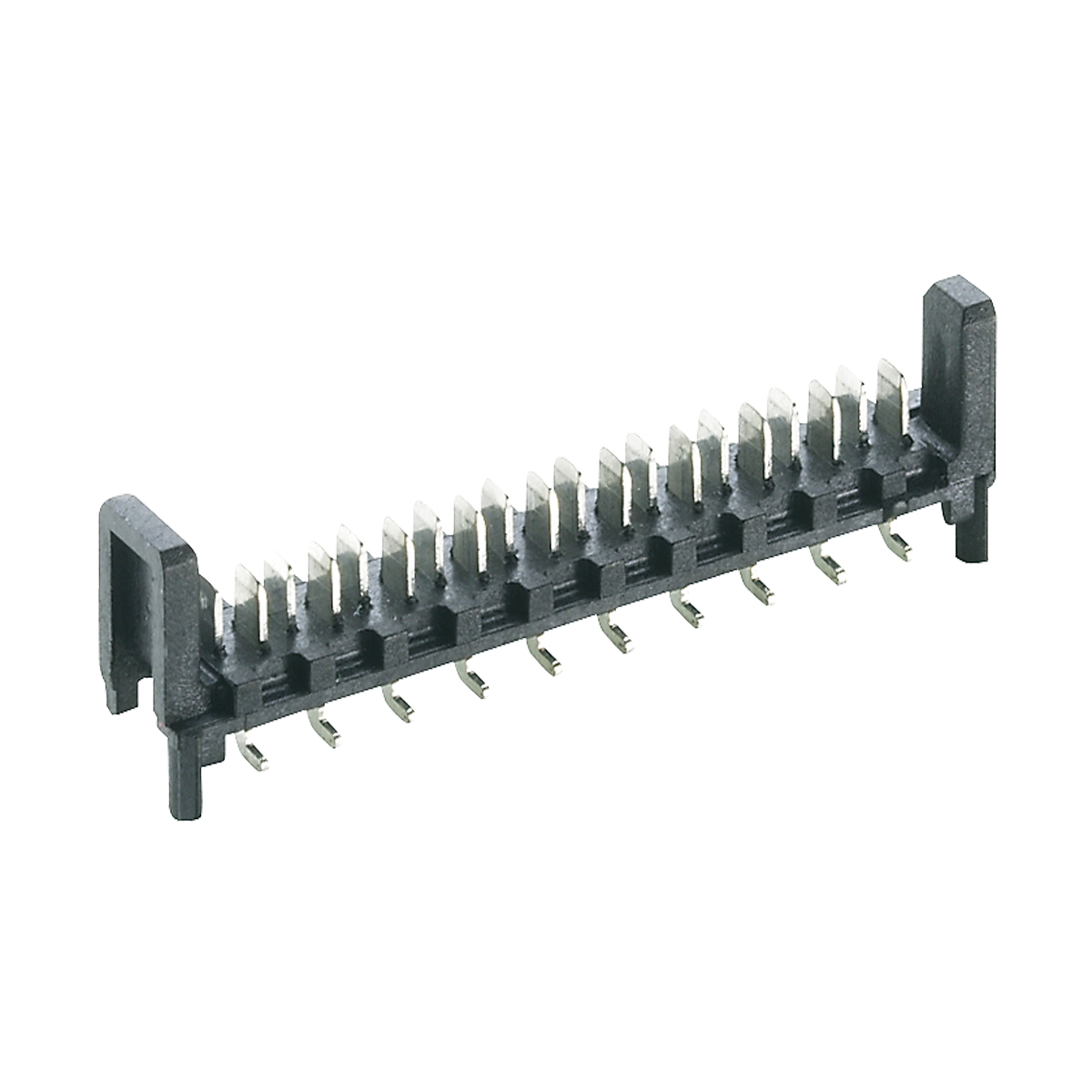

MICS/SMD

Micromodul™ tab header, upright, in surface mount technology (SMT), solder contacts dual row staggered, with press-fit spigots, in bulk, with retaining hooks

MICS/SMD RP

Micromodul™ tab header, upright, in surface mount technology (SMT), solder contacts dual row staggered, with press-fit spigots, on reel, with pick-and-place top

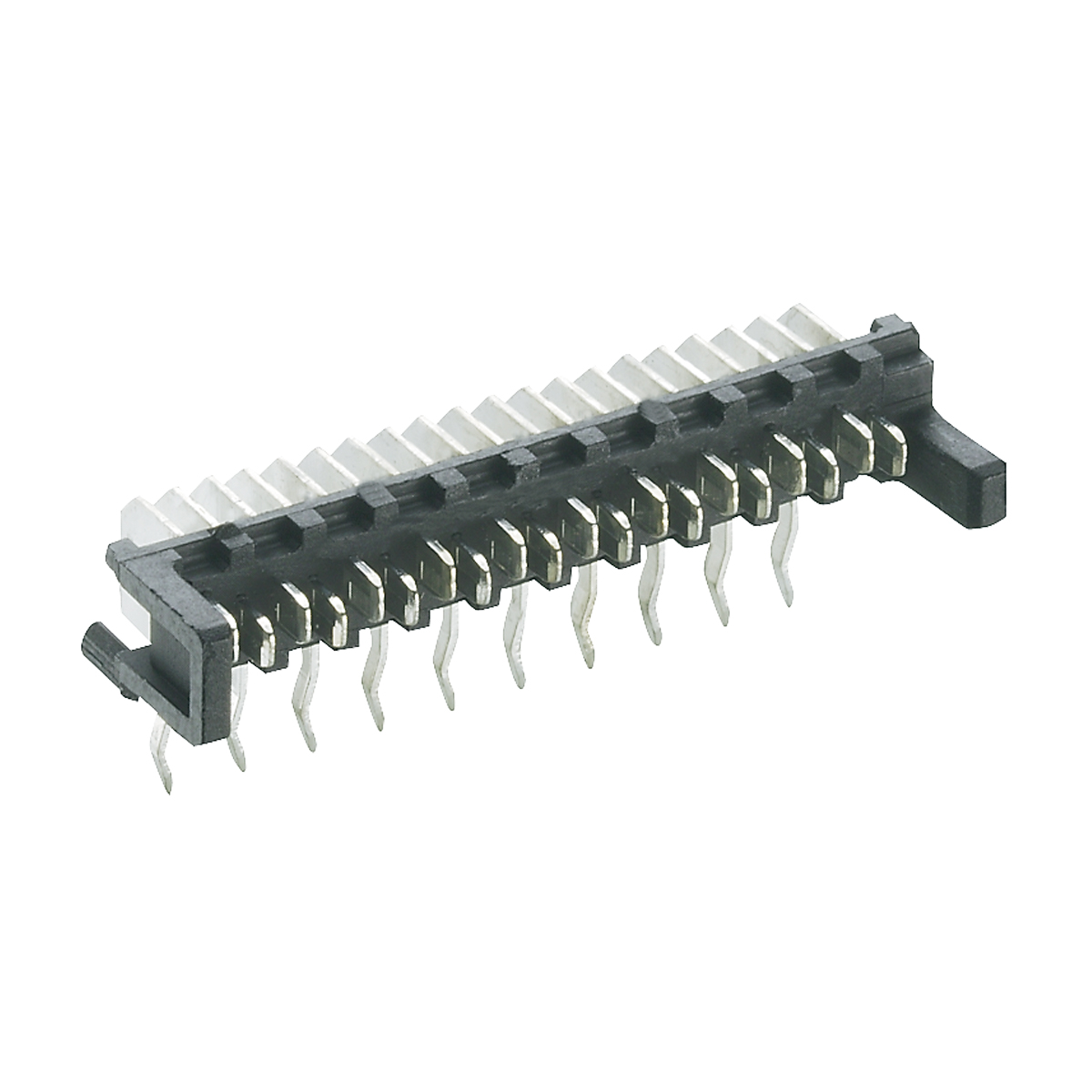

MICSW

Micromodul™ tab header, angular, solder contacts dual row staggered

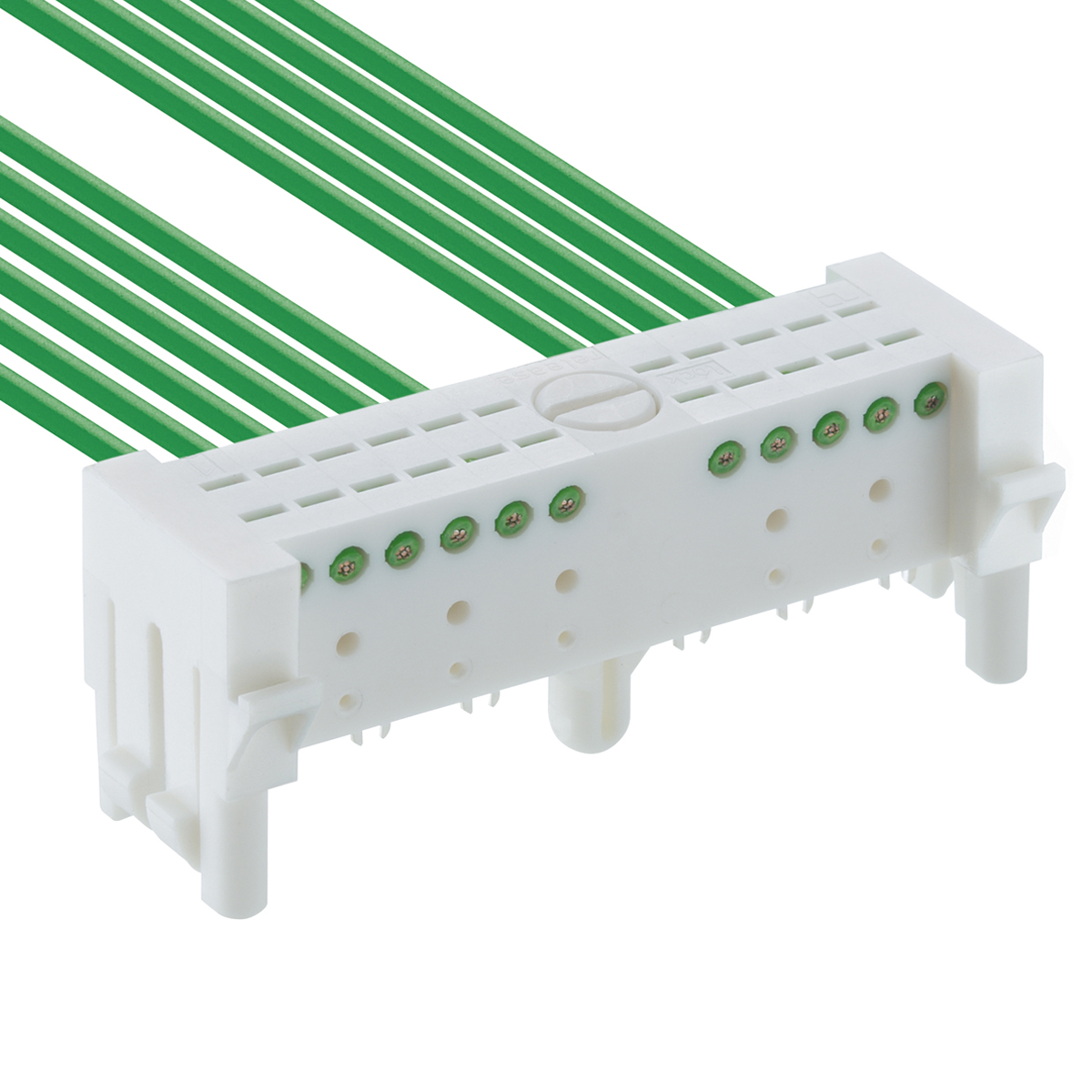

733500

SmartSKEDD direct connector, insulation dis­place­ment technology (IDT), with keying pins, positioning spigot and double locking on the printed circuit boardcontact pitch 2.5 mm

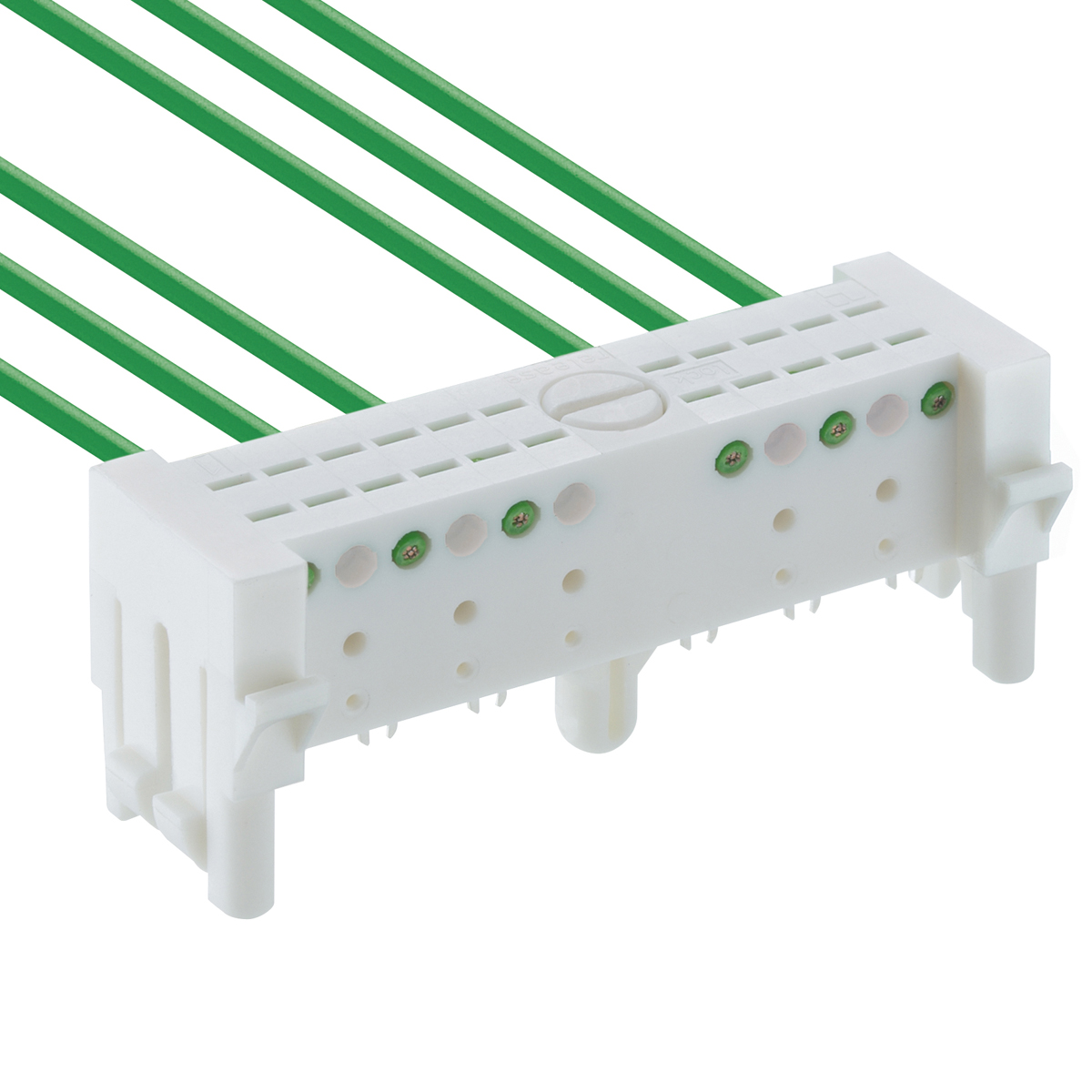

733510

SmartSKEDD direct connector, insulation dis­place­ment technology (IDT), with keying pins, positioning spigot and double locking on the printed circuit boardcontact pitch 5.0 mm

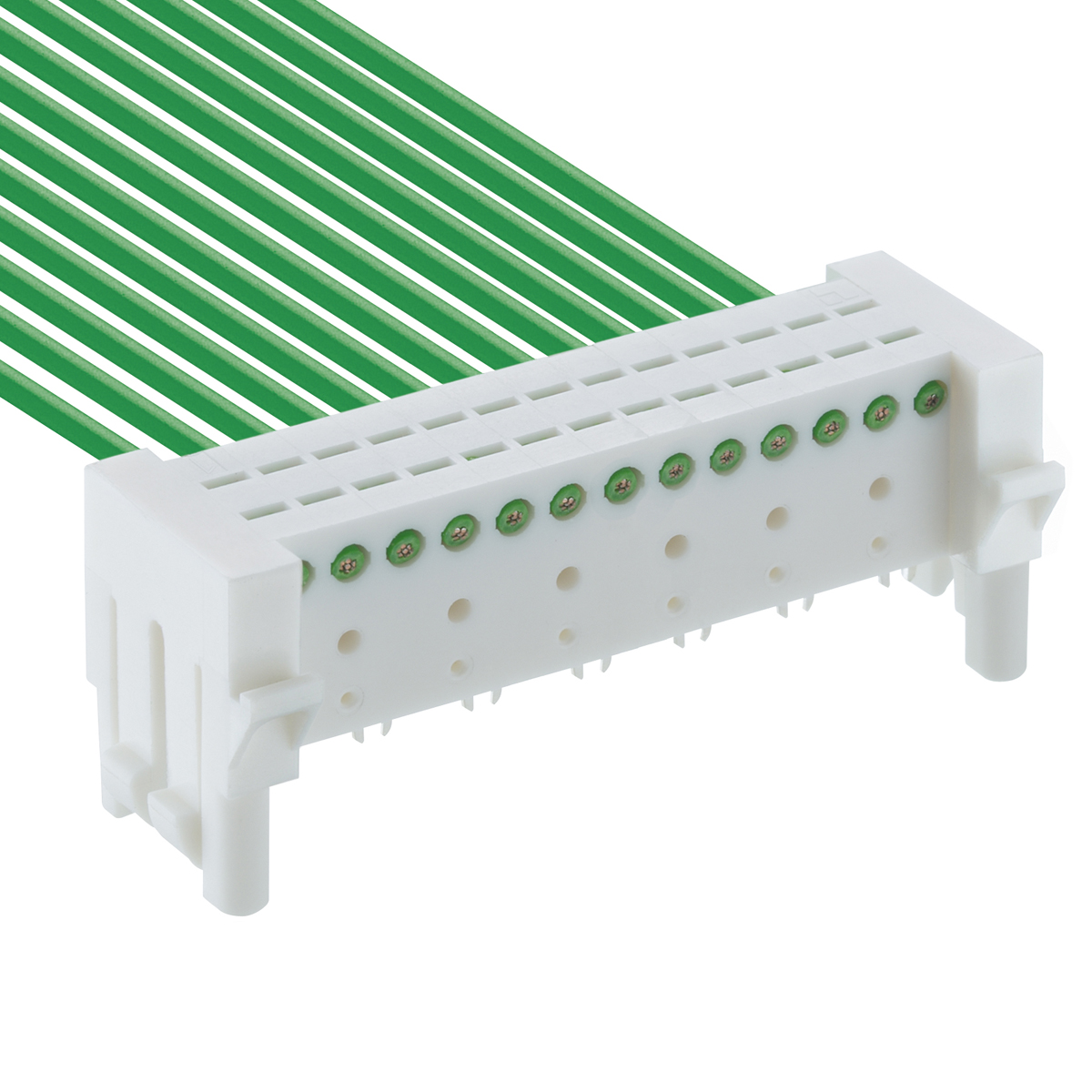

733520

SmartSKEDD direct connector, insulation dis­place­ment technology (IDT), with keying pins, positioning spigot and locking on the printed circuit boardcontact pitch 2.5 mm

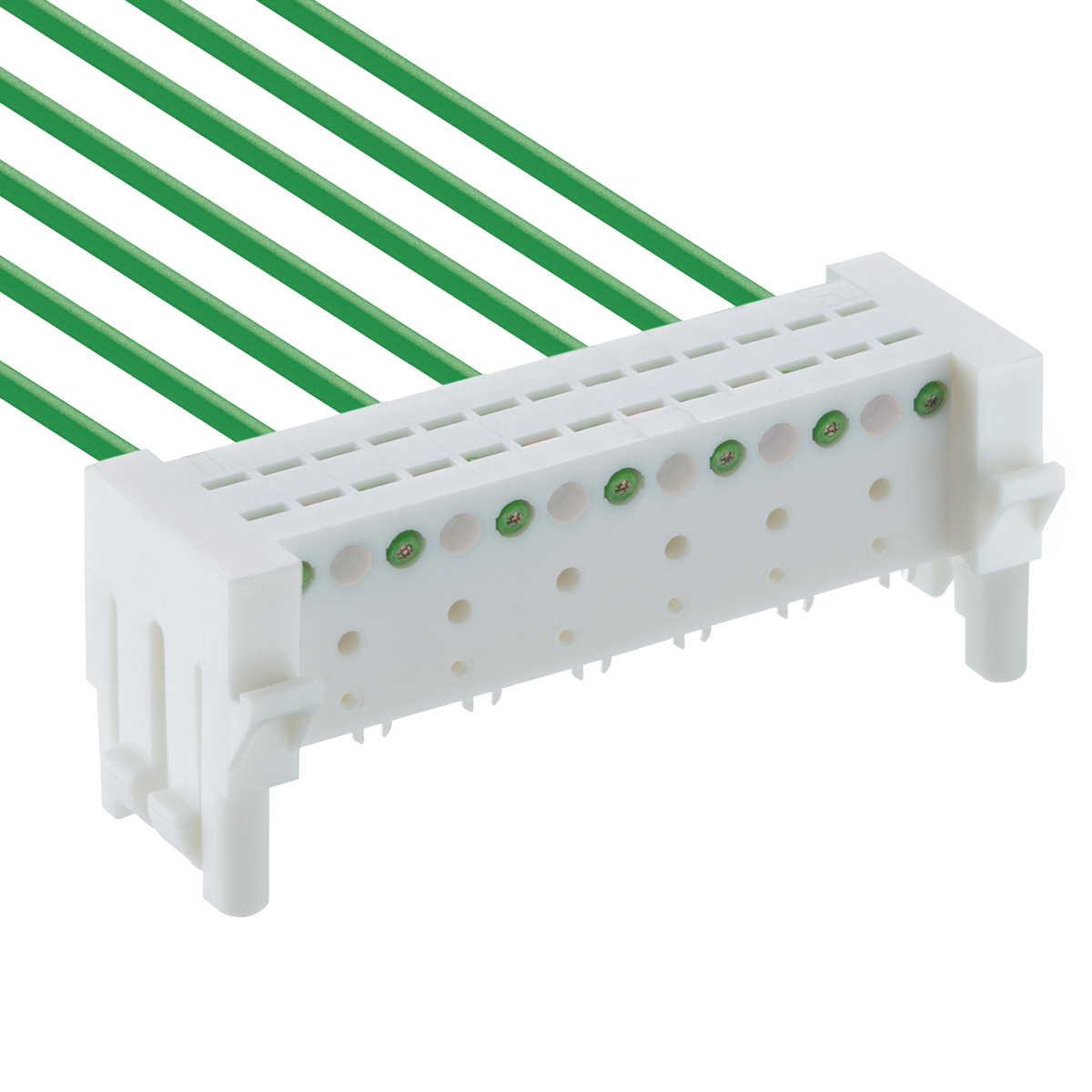

733530

SmartSKEDD direct connector, insulation dis­place­ment technology (IDT), with keying pins, positioning spigot and locking on the printed circuit boardcontact pitch 5.0 mm

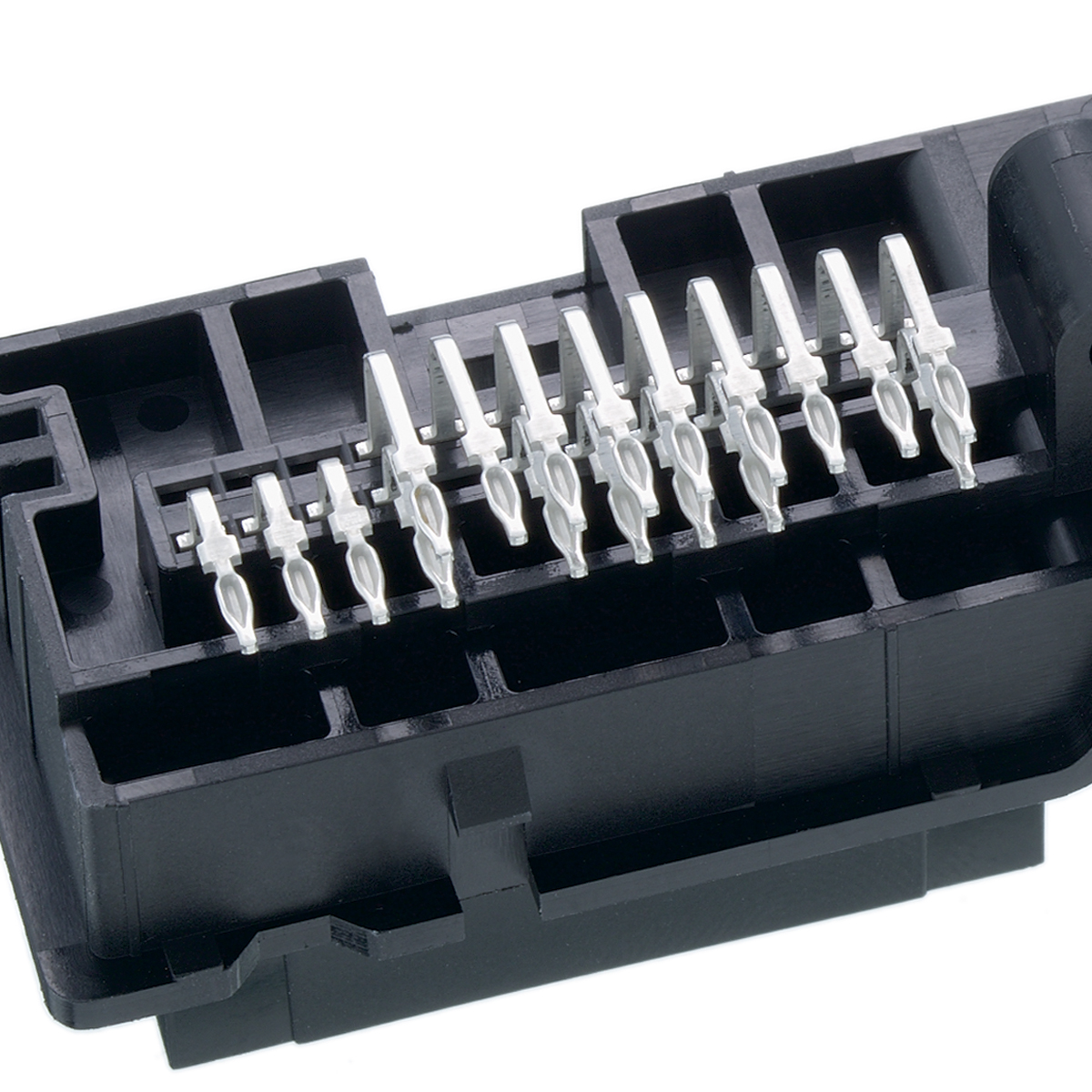

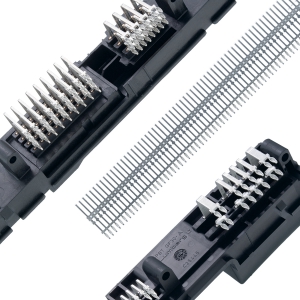

7200

Press-fit contact 0.6 for customer-specific interconnect solutions, according to internal test specifications as per automotive requirements on the basis of IEC 60352-5

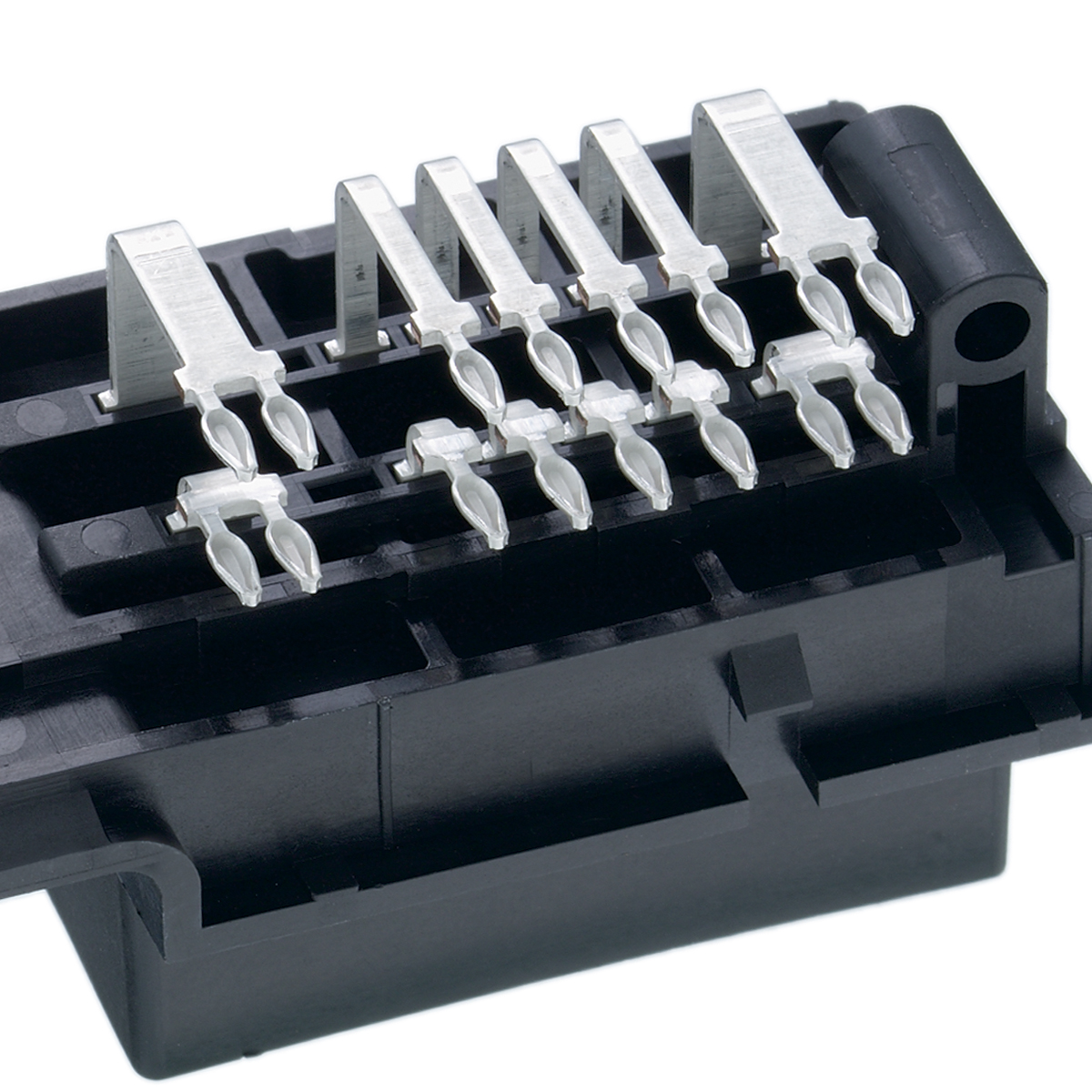

7201

Press-fit contact 0.8 for customer-specific interconnect solutions, according to internal test specifications as per automotive requirements on the basis of IEC 60352-5

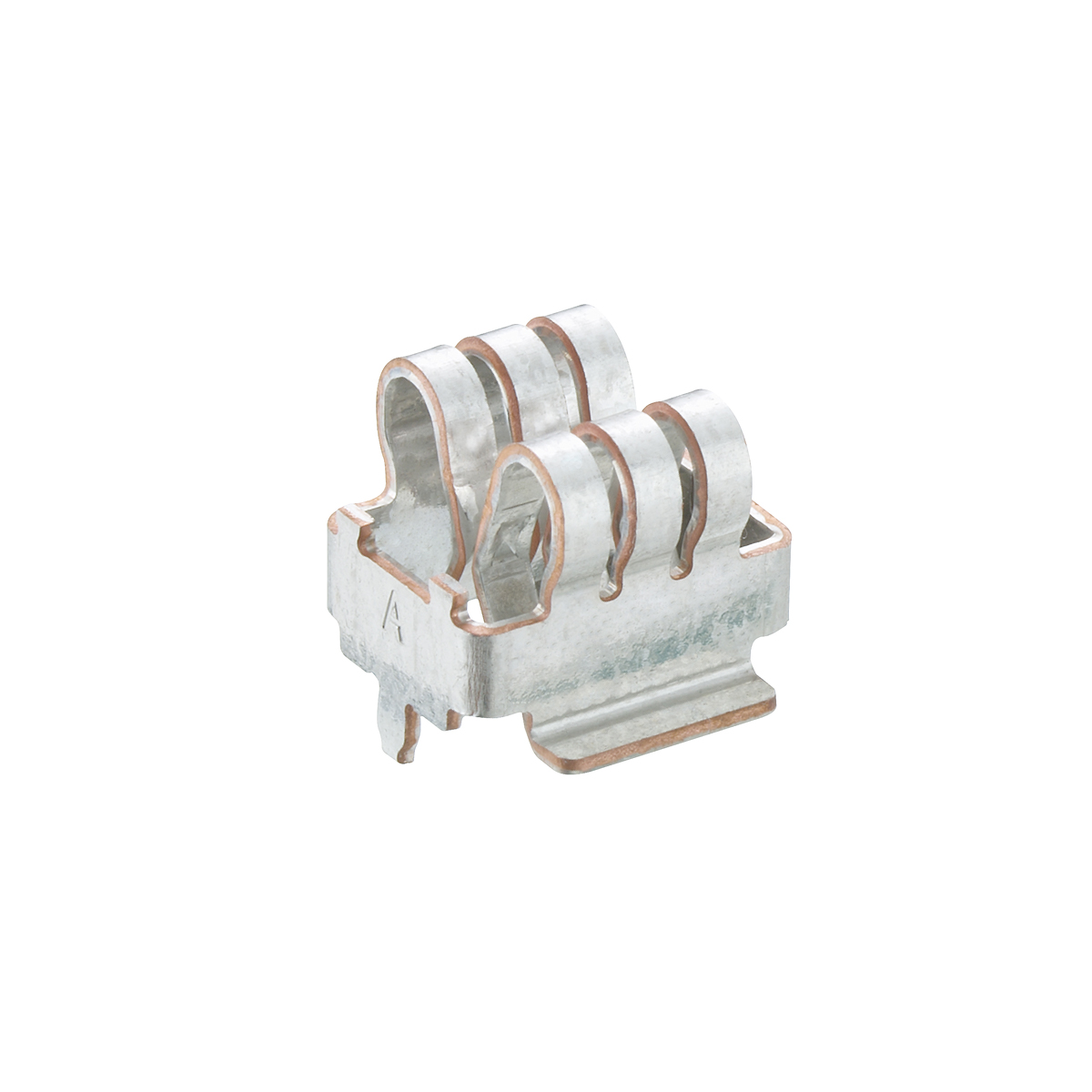

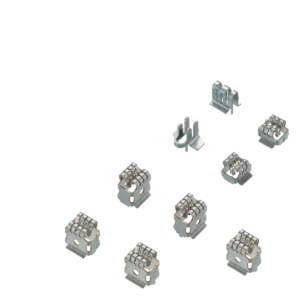

4580 03 MP T0,8

High-current contact bush with positioning pegs, mateable from top or bottom direction, for tab contacts 0.8–1.5 mm, for printed circuit boards or lead frames

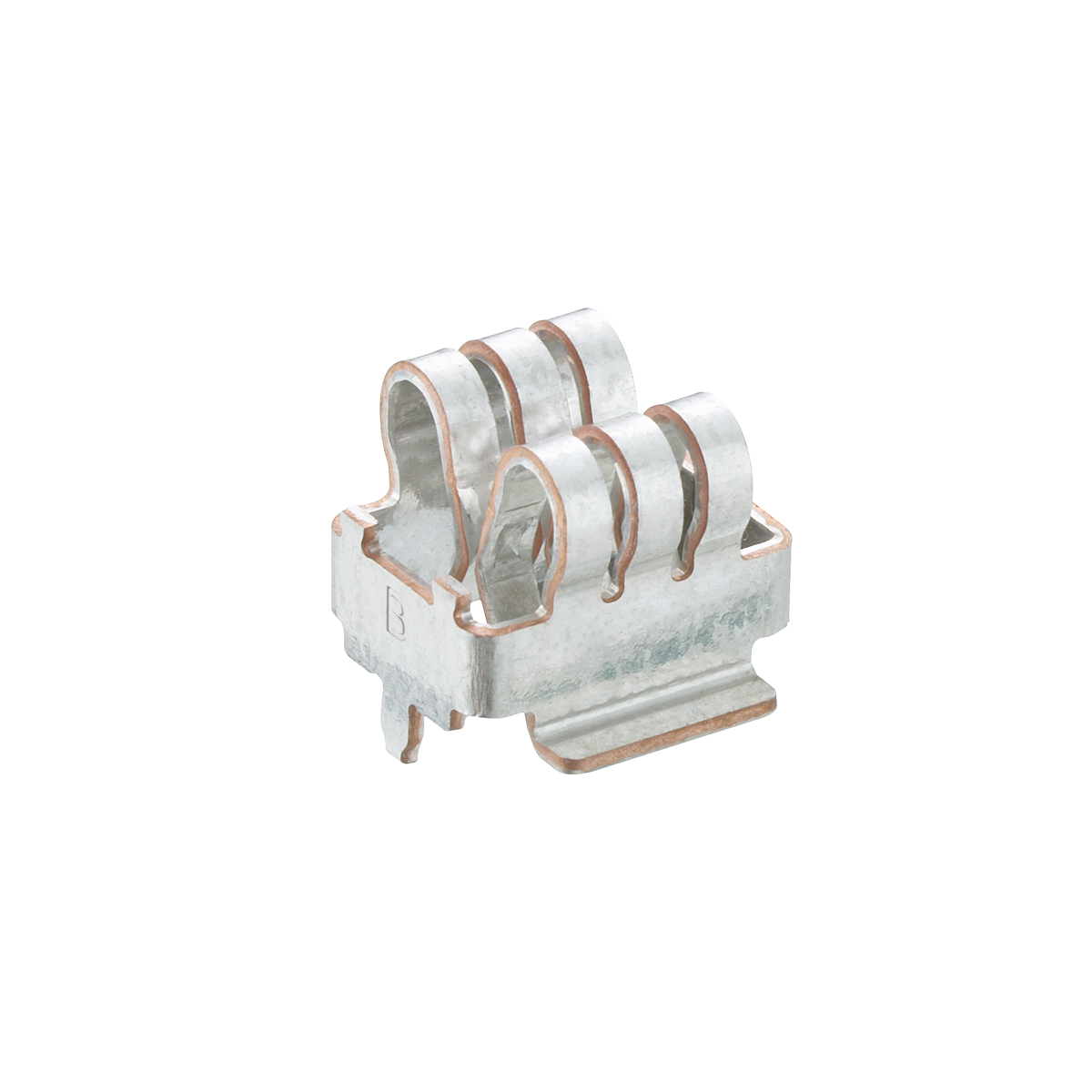

4580 03 MP T2,0

High-current contact bush with positioning pegs, mateable from top or bottom direction, for tab contacts 1.5–2.0 mm, for printed circuit boards or lead frames

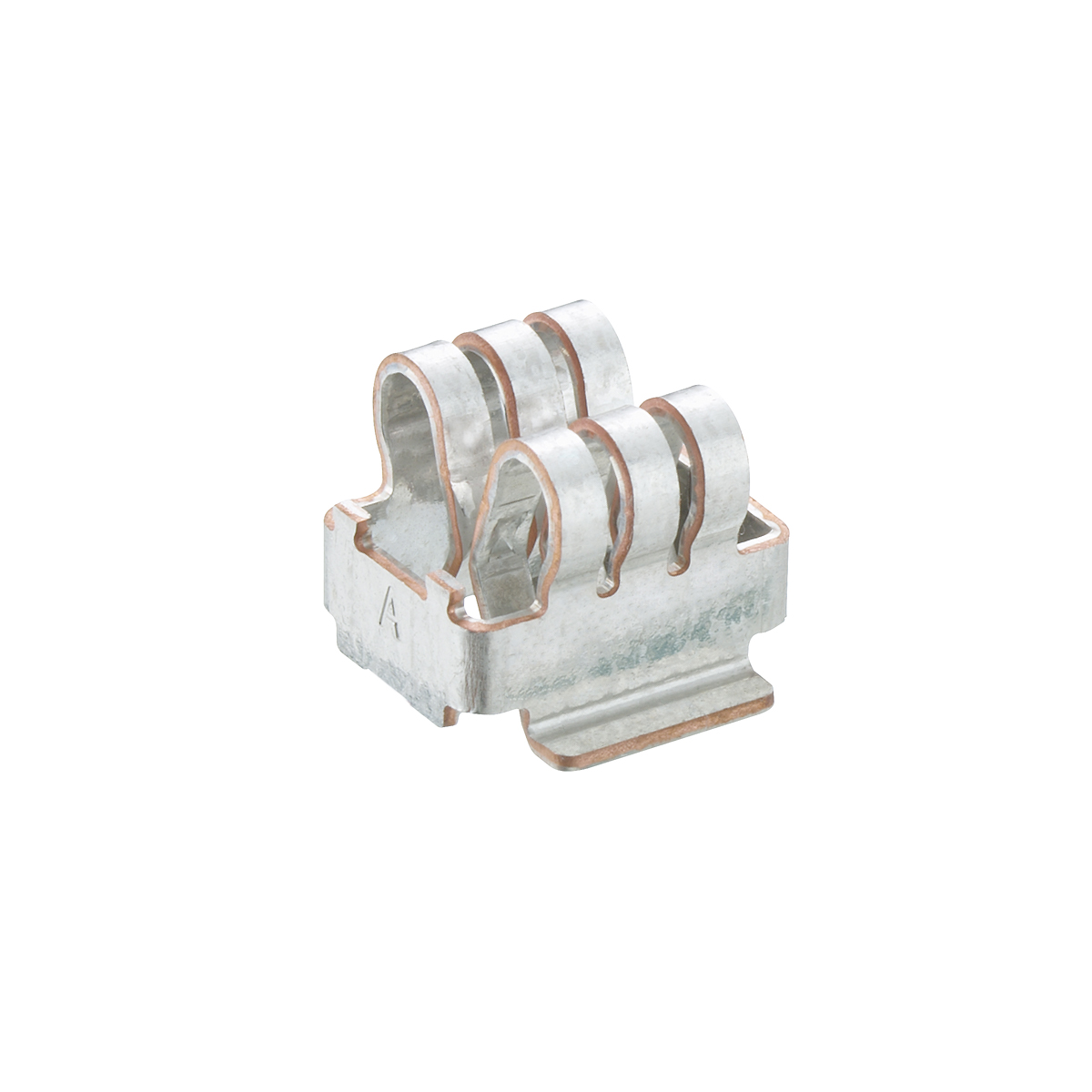

4580 03 OP T0,8

High-current contact bush, mateable from top or bottom direction, for tab contacts 0.8–1.5 mm, for printed circuit boards or lead frames

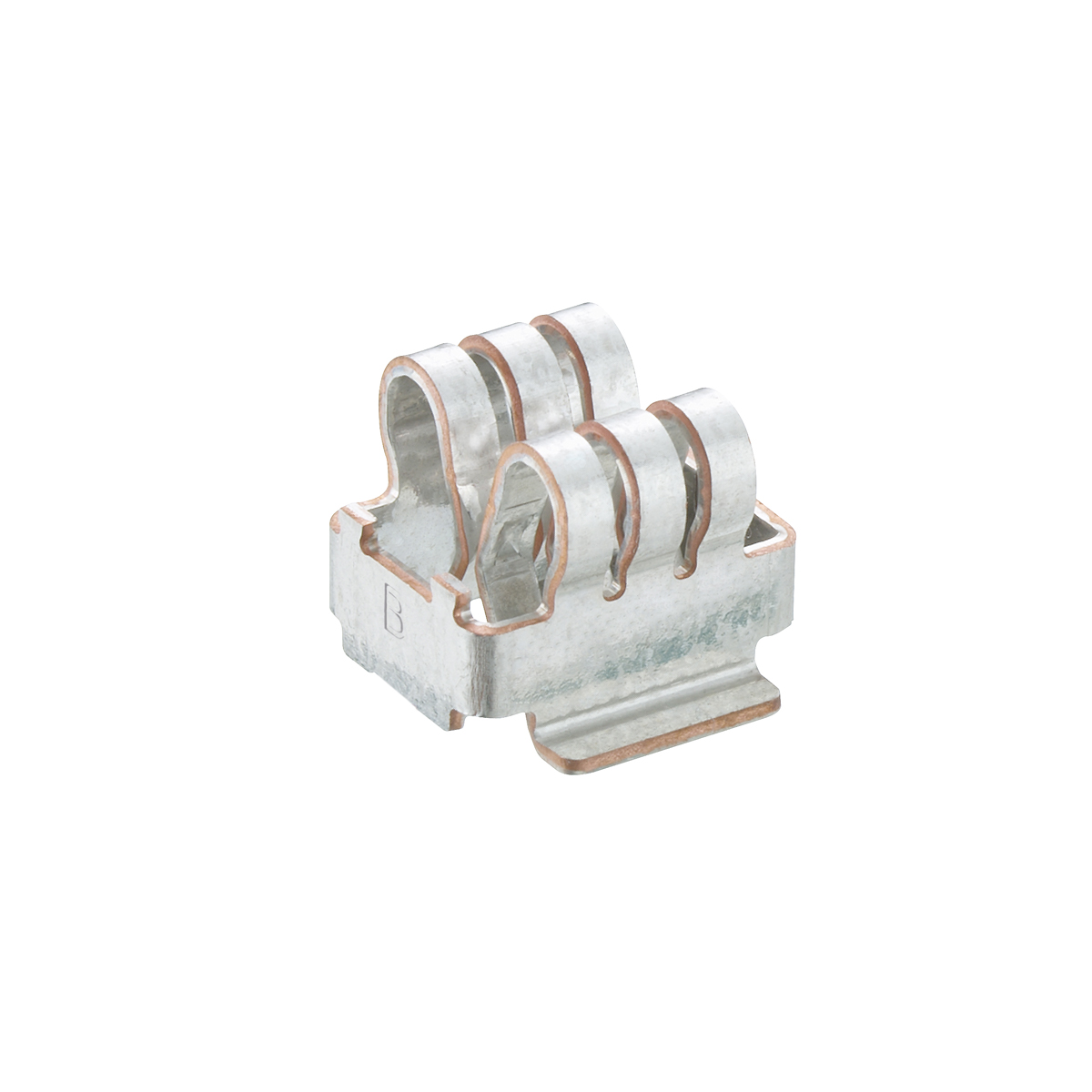

4580 03 OP T2,0

High-current contact bush, mateable from top or bottom direction, for tab contacts 1.5–2.0 mm, for printed circuit boards or lead frames

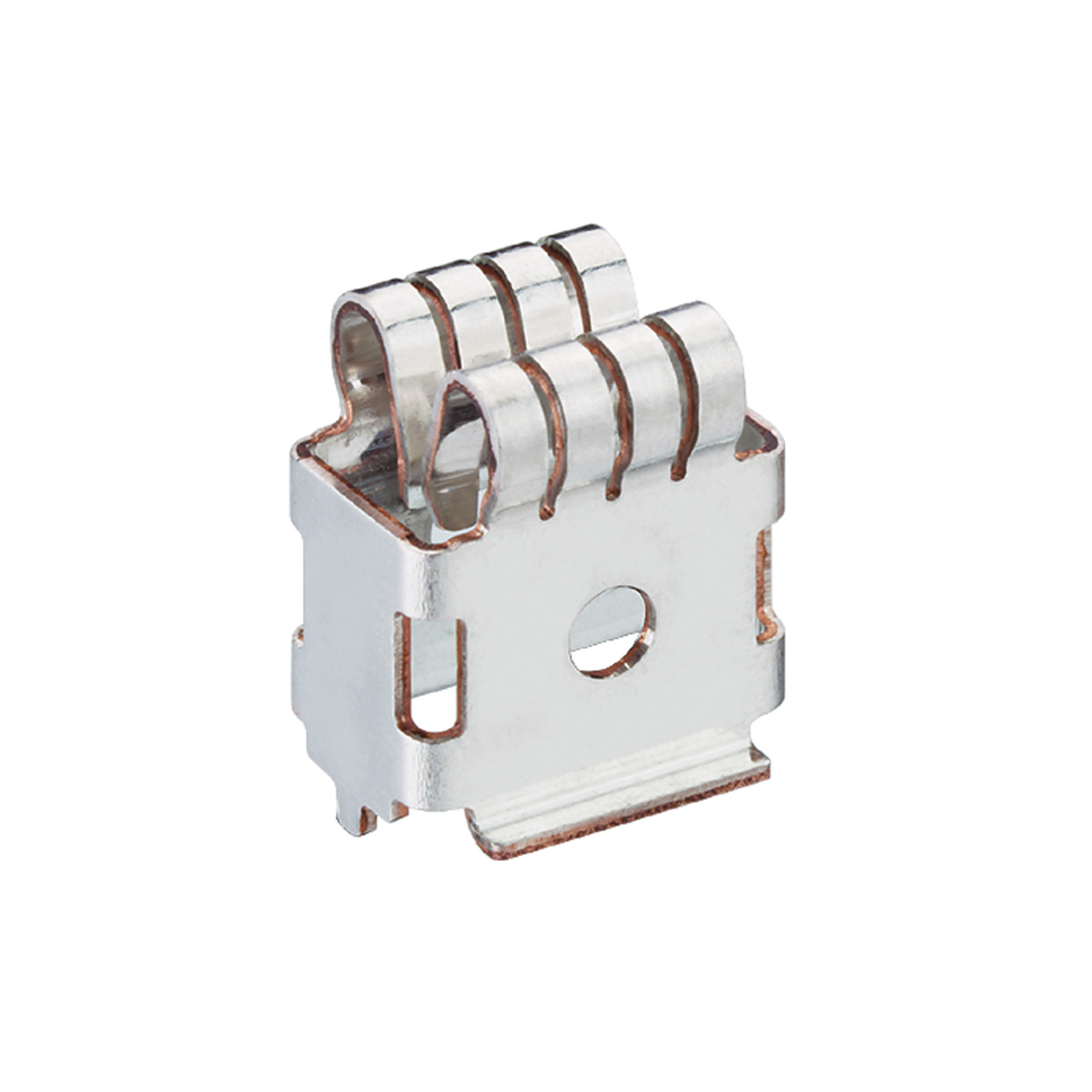

4580 04 MP T1,0

High-current contact bush with positioning pegs, for tab contacts 1.0 mm, for printed circuit boards or lead frames

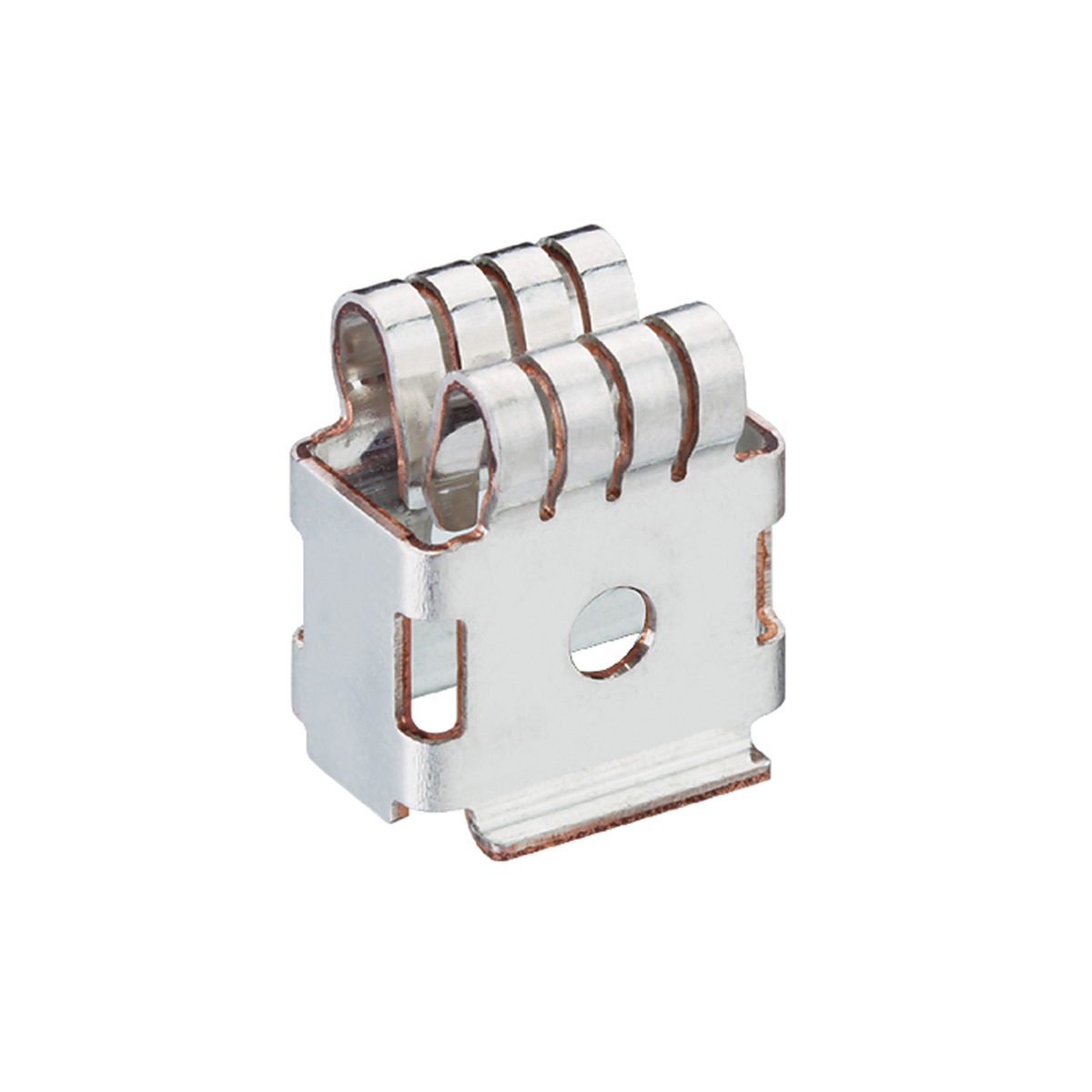

4580 04 OP T1,0

High-current contact bush, for tab contacts 1.0 mm, for printed circuit boards or lead frames

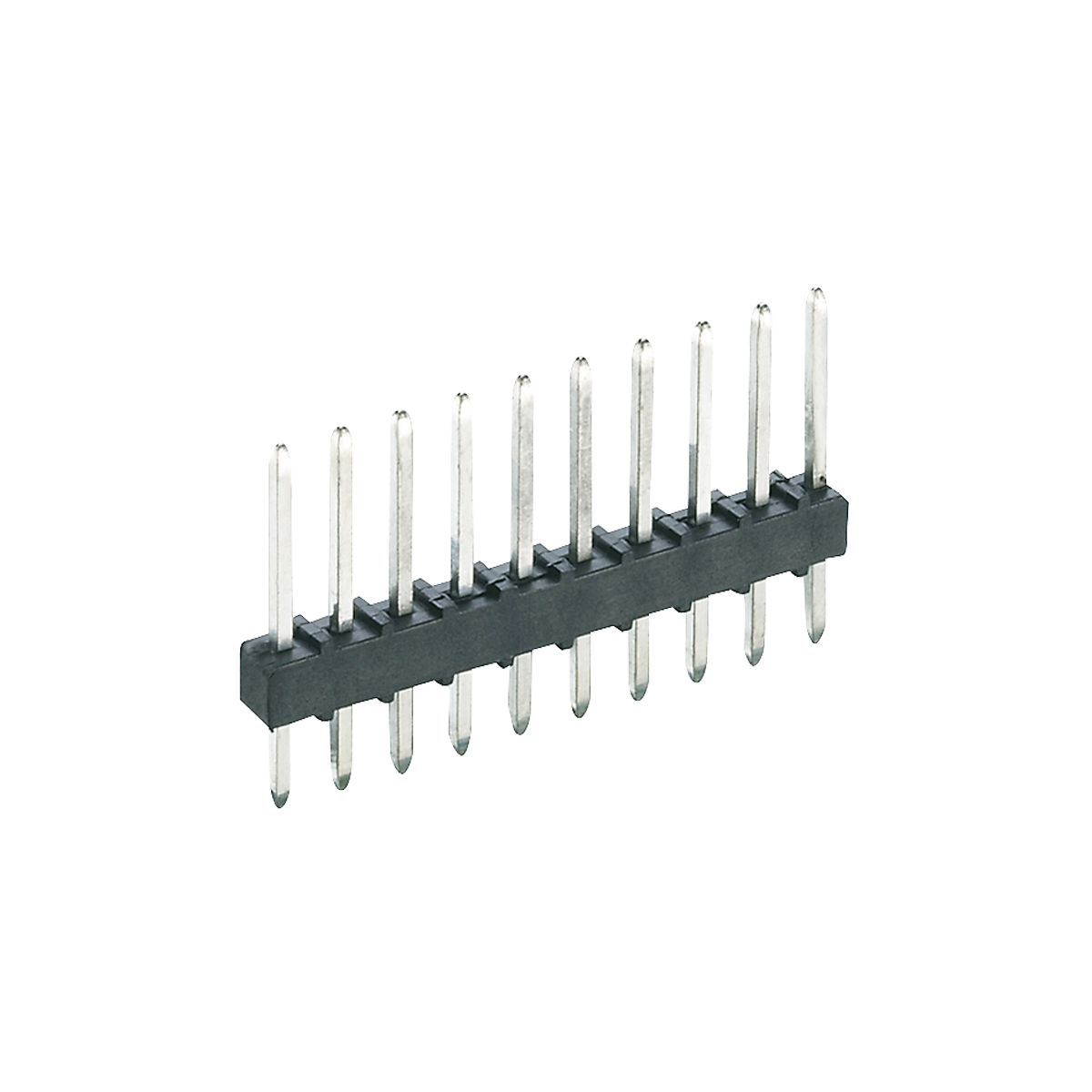

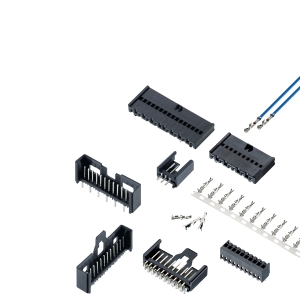

2,5 MS

Minimodul™ pin header

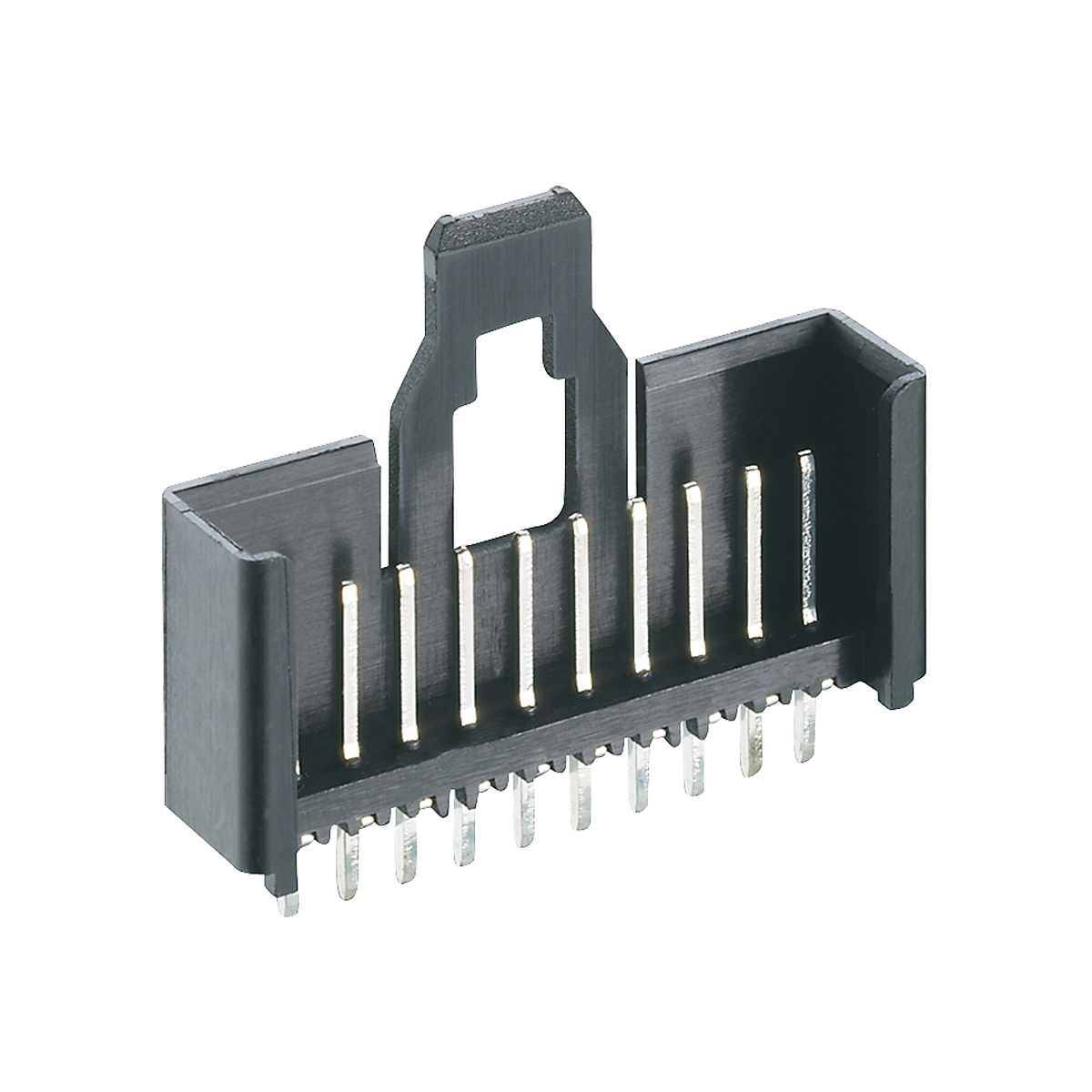

2,5 MSF

Minimodul™ pin header, upright, with locking latch, solder contacts single row

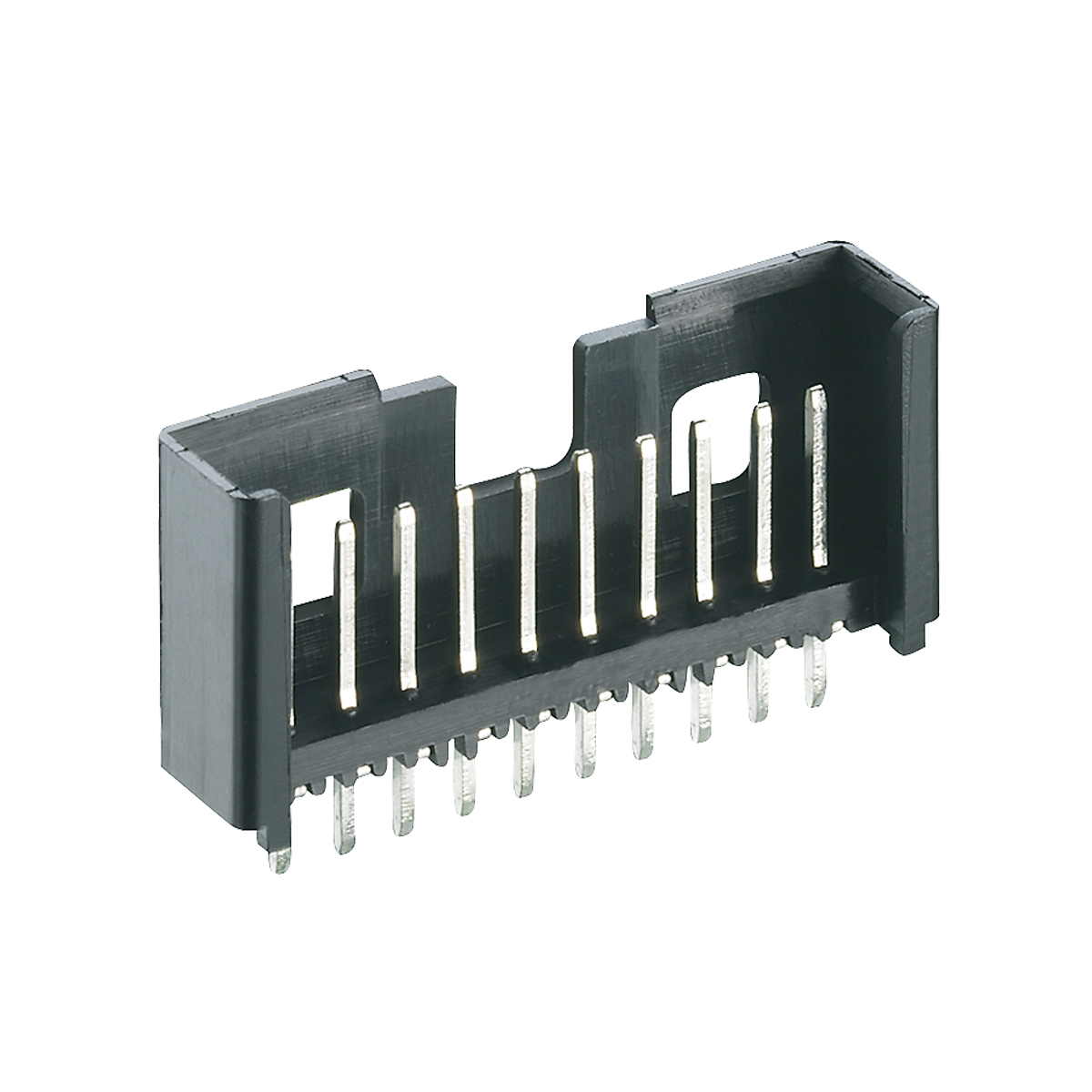

2,5 MSF/O

Minimodul™ pin header, upright, solder contacts single row

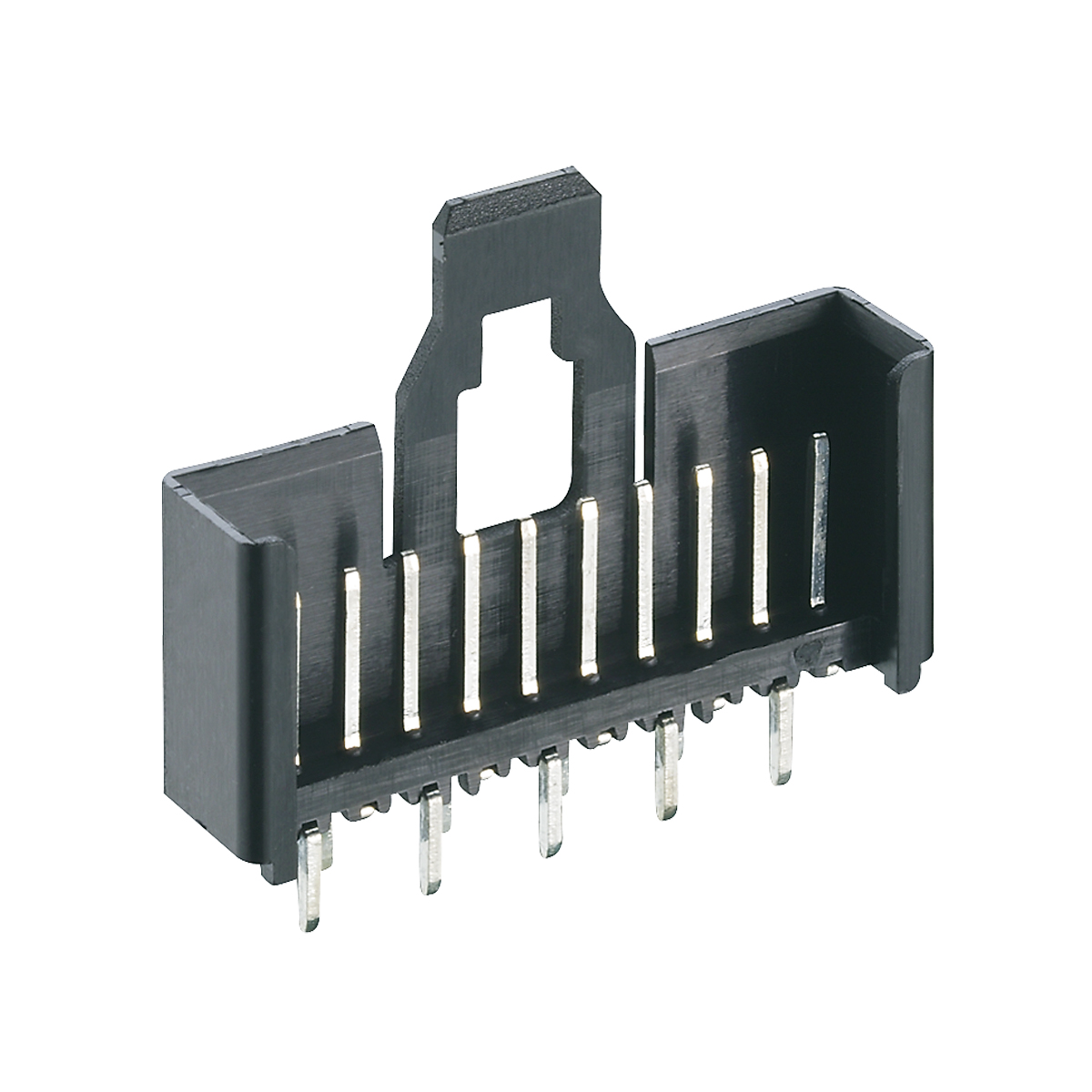

2,5 MSFQ

Minimodul™ pin header, upright, with locking latch, solder contacts dual row staggered

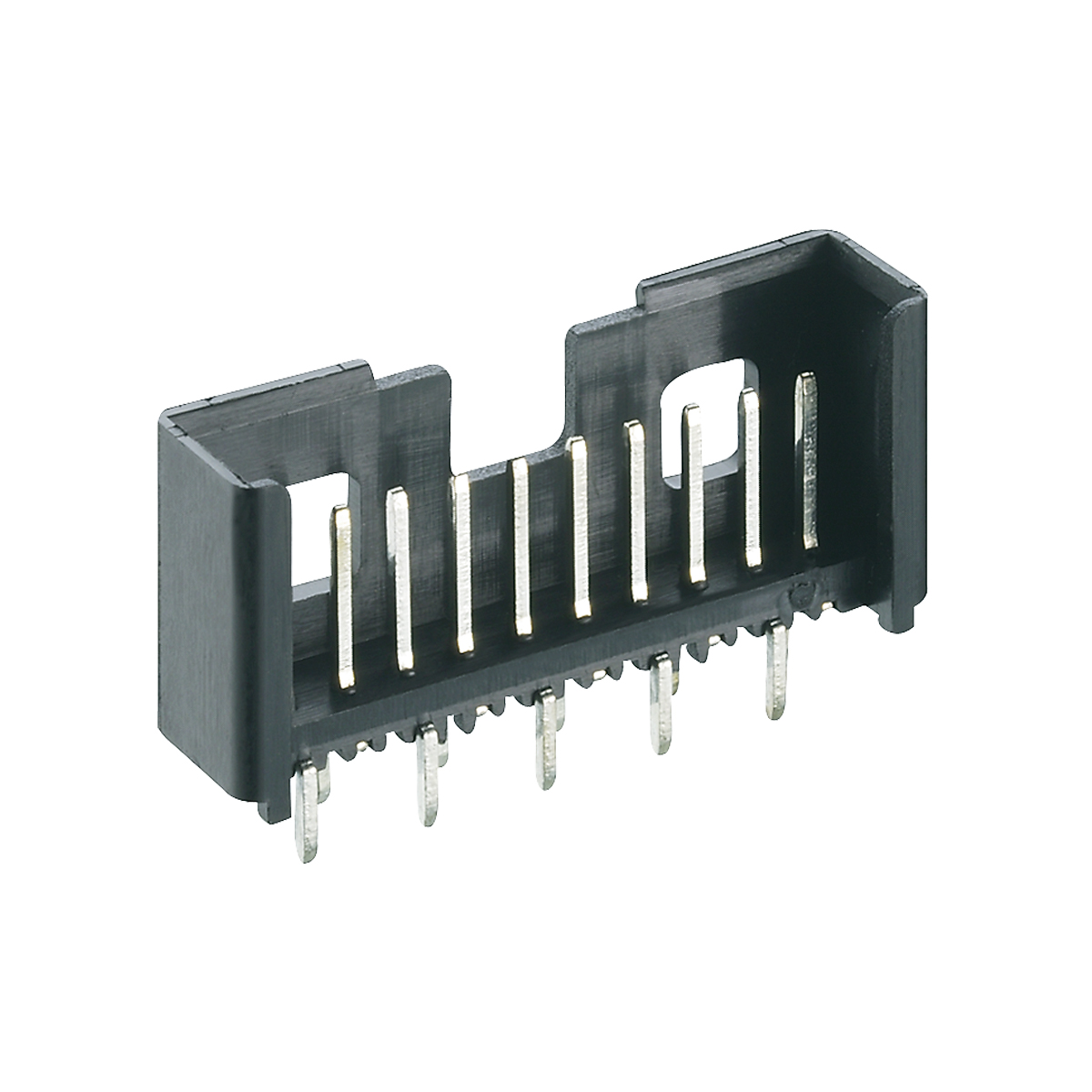

2,5 MSFQ/O

Minimodul™ pin header, upright, solder contacts dual row staggered

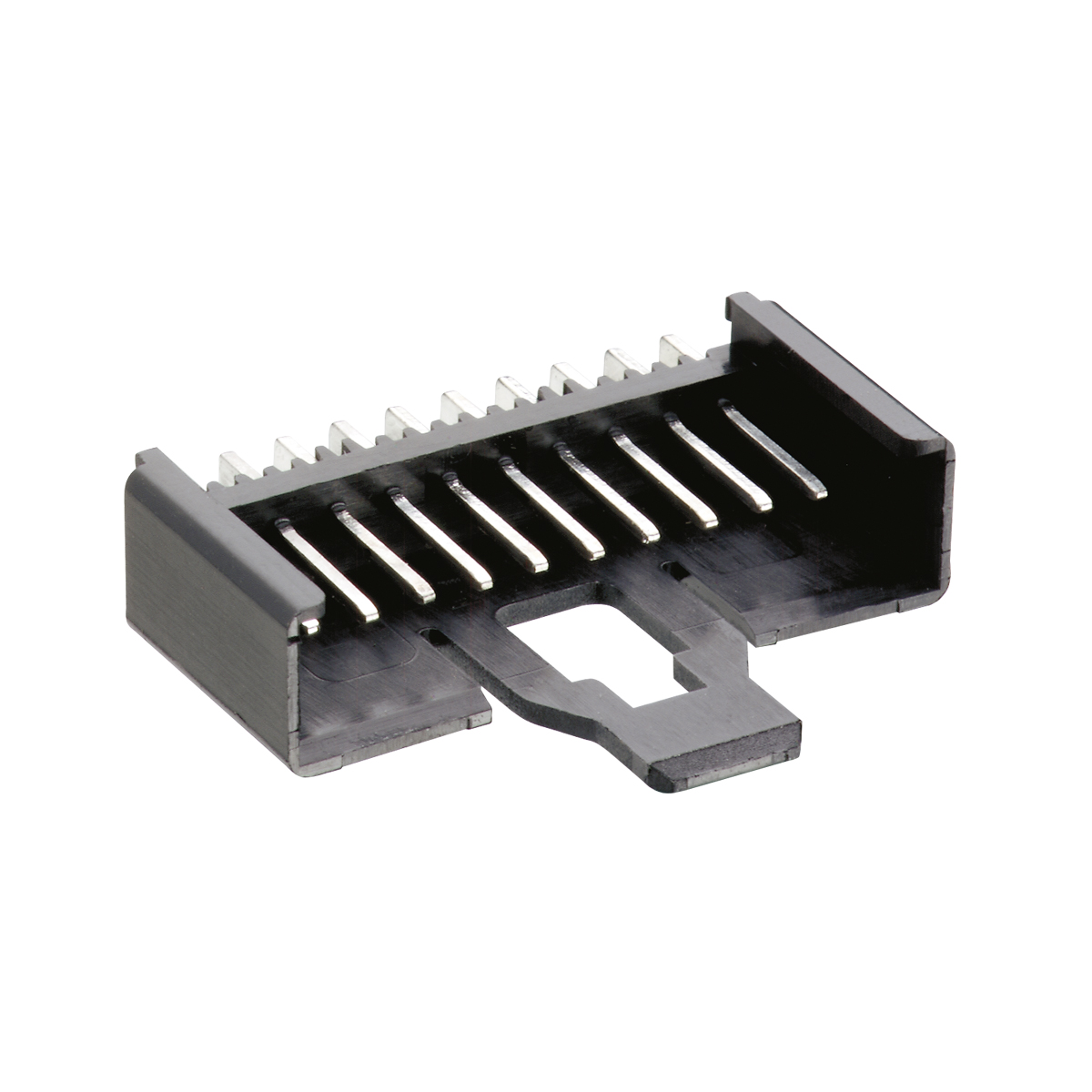

2,5 MSFW

Minimodul™ pin header, angular, with locking latch, solder contacts single row

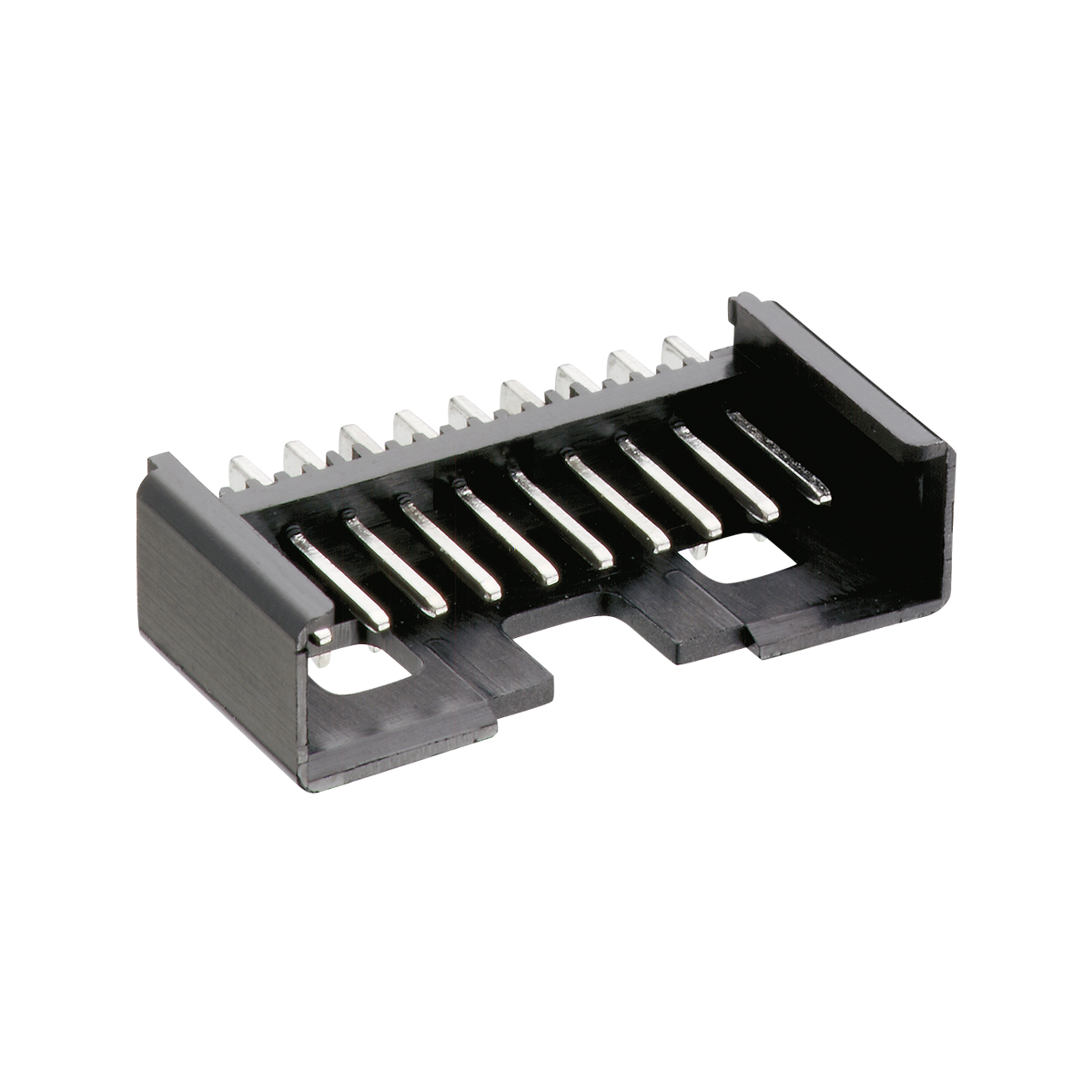

2,5 MSFW/O

Minimodul™ pin header, angular, solder contacts single row

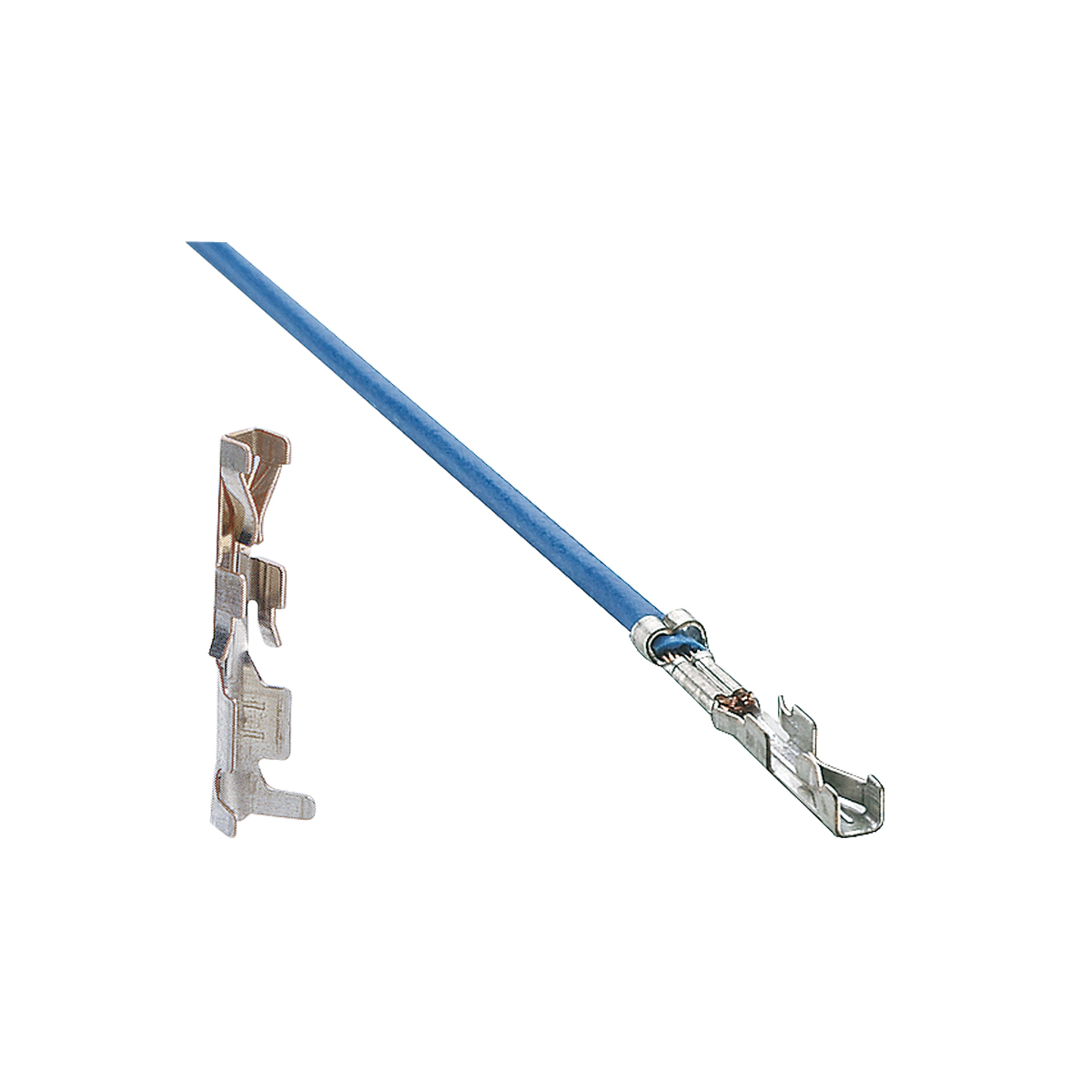

3111 01 G

Minimodul™ crimp contact, on reel

3111 01 L

Minimodul™ crimp contact, in bulk

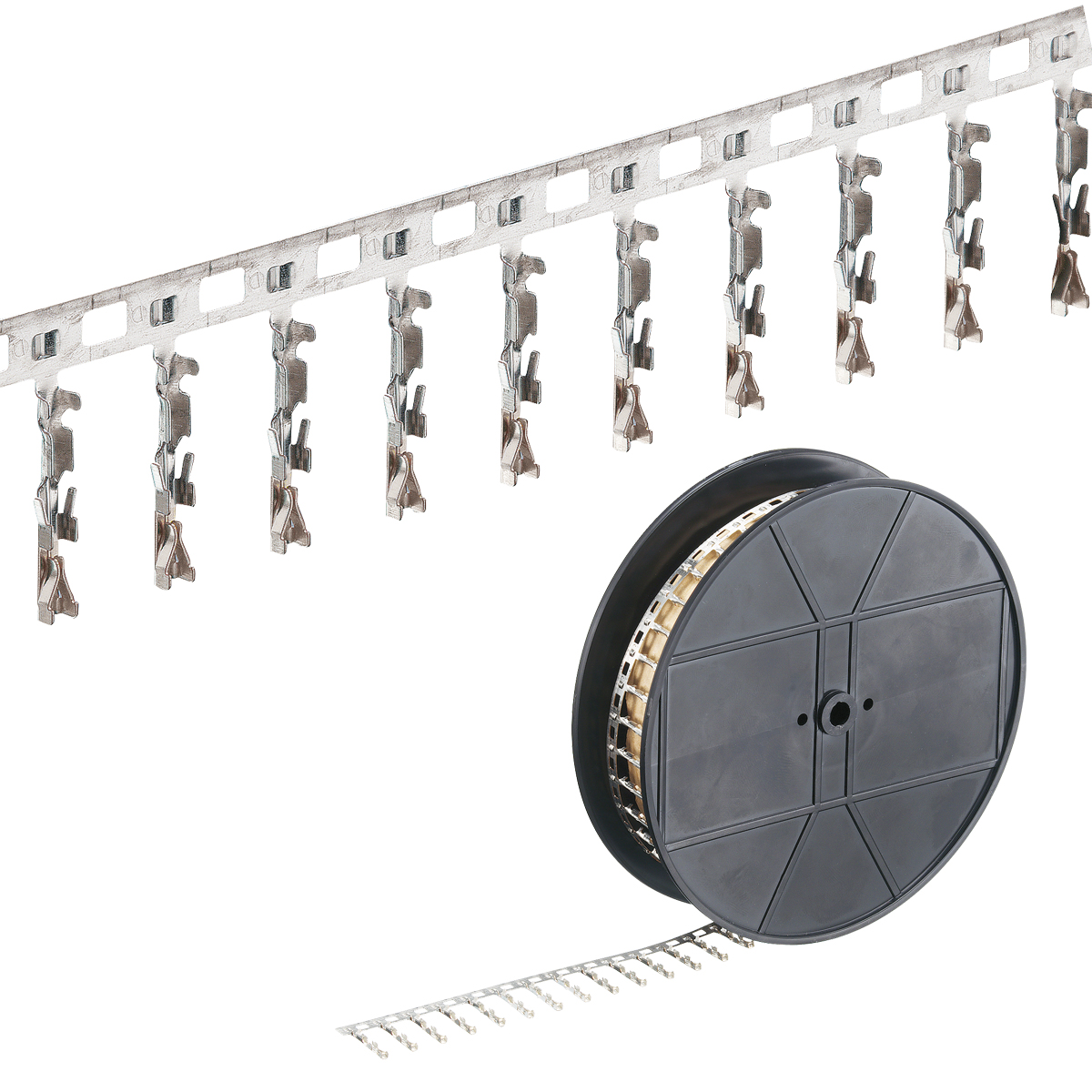

3111 03 G

Minimodul™ crimp contact, on reel

3111 03 L

Minimodul™ crimp contact, in bulk

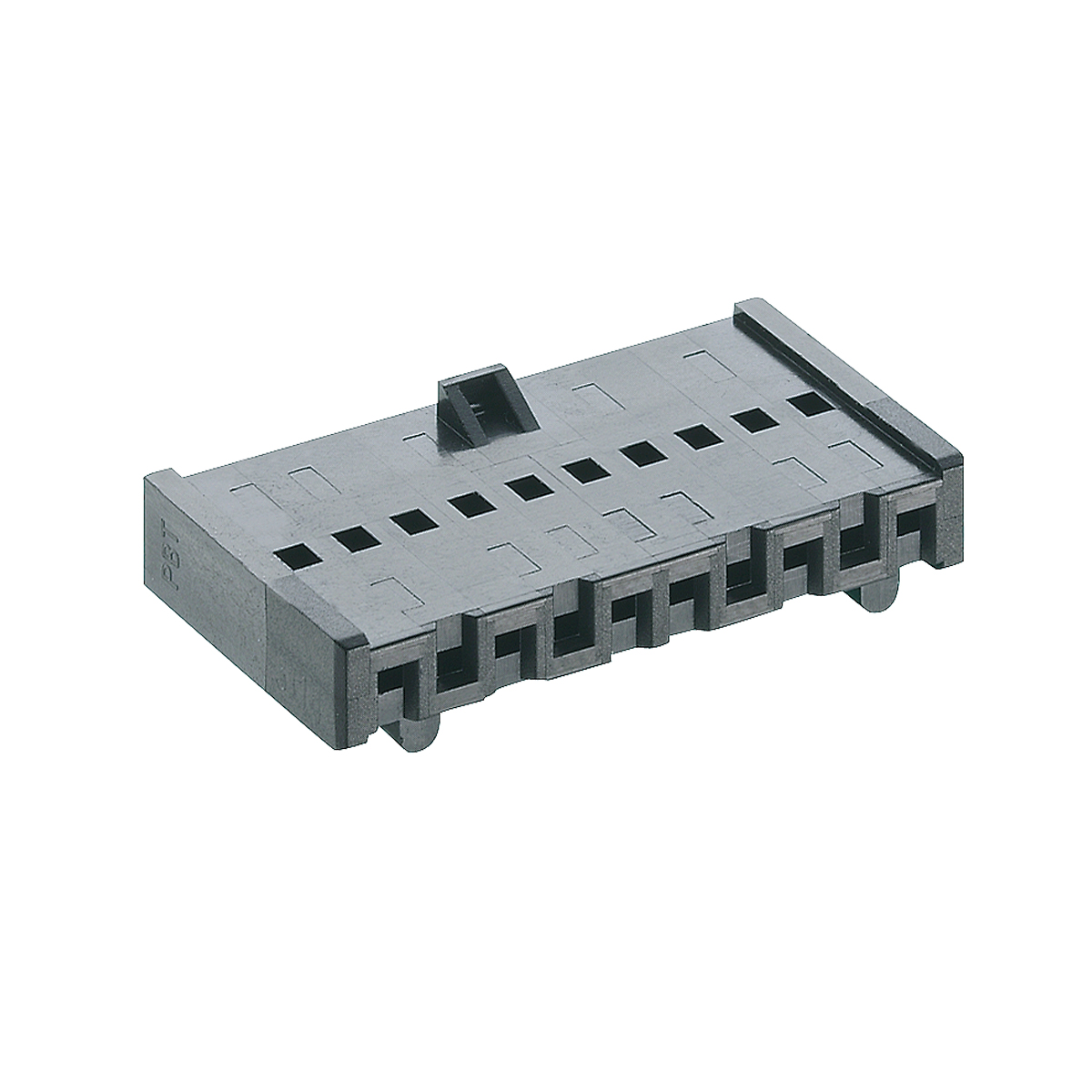

3114

Empty Minimodul™ housing for reception of crimp contacts, for indirect mating

3111 01 G

Multimodul™ crimp contact, on reel

3111 01 L

Multimodul™ crimp contact, in bulk

3111 03 G

Multimodul™ crimp contact, on reel

3111 03 L

Multimodul™ crimp contact, in bulk

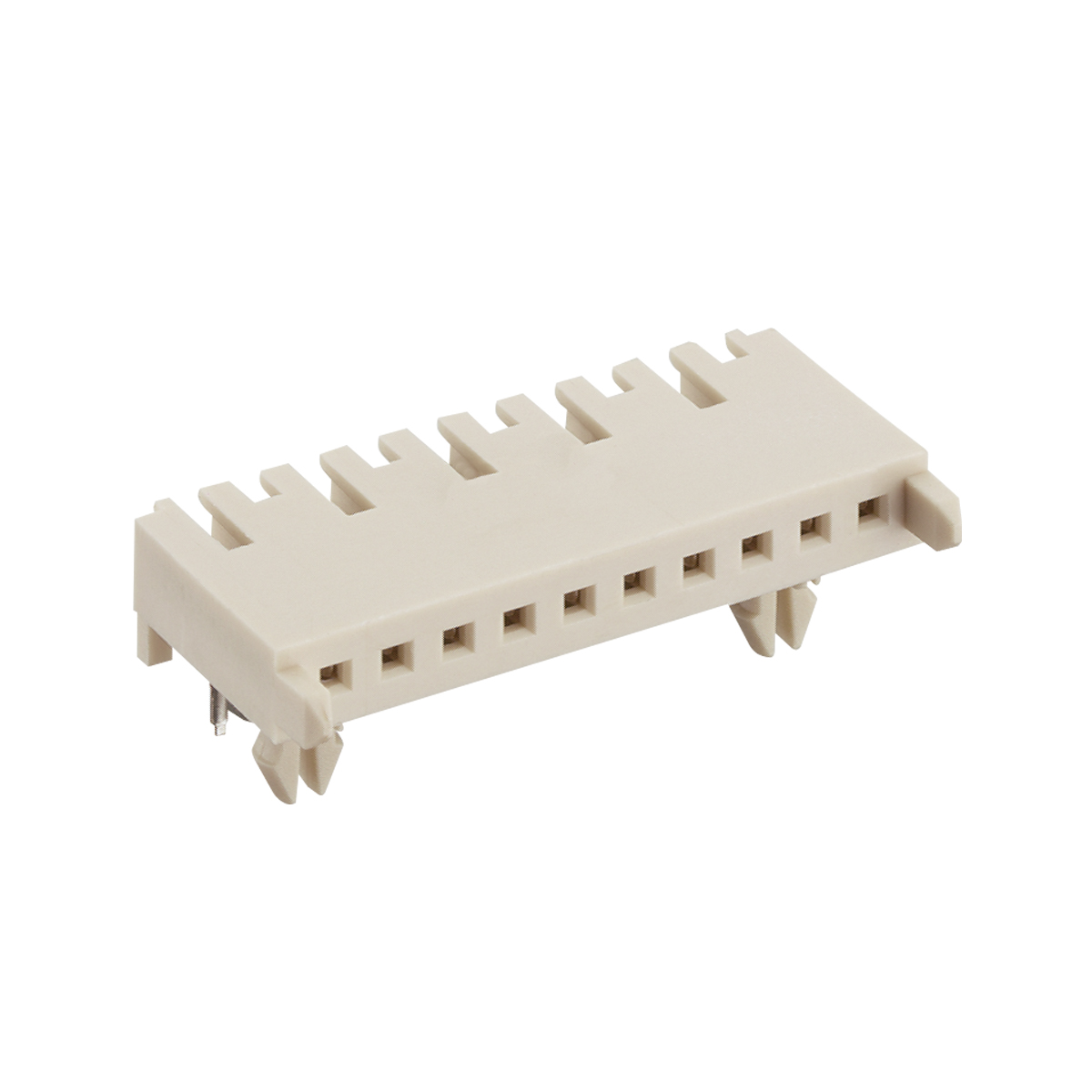

3800

Multimodul™ socket board, angular, with retaining hooks

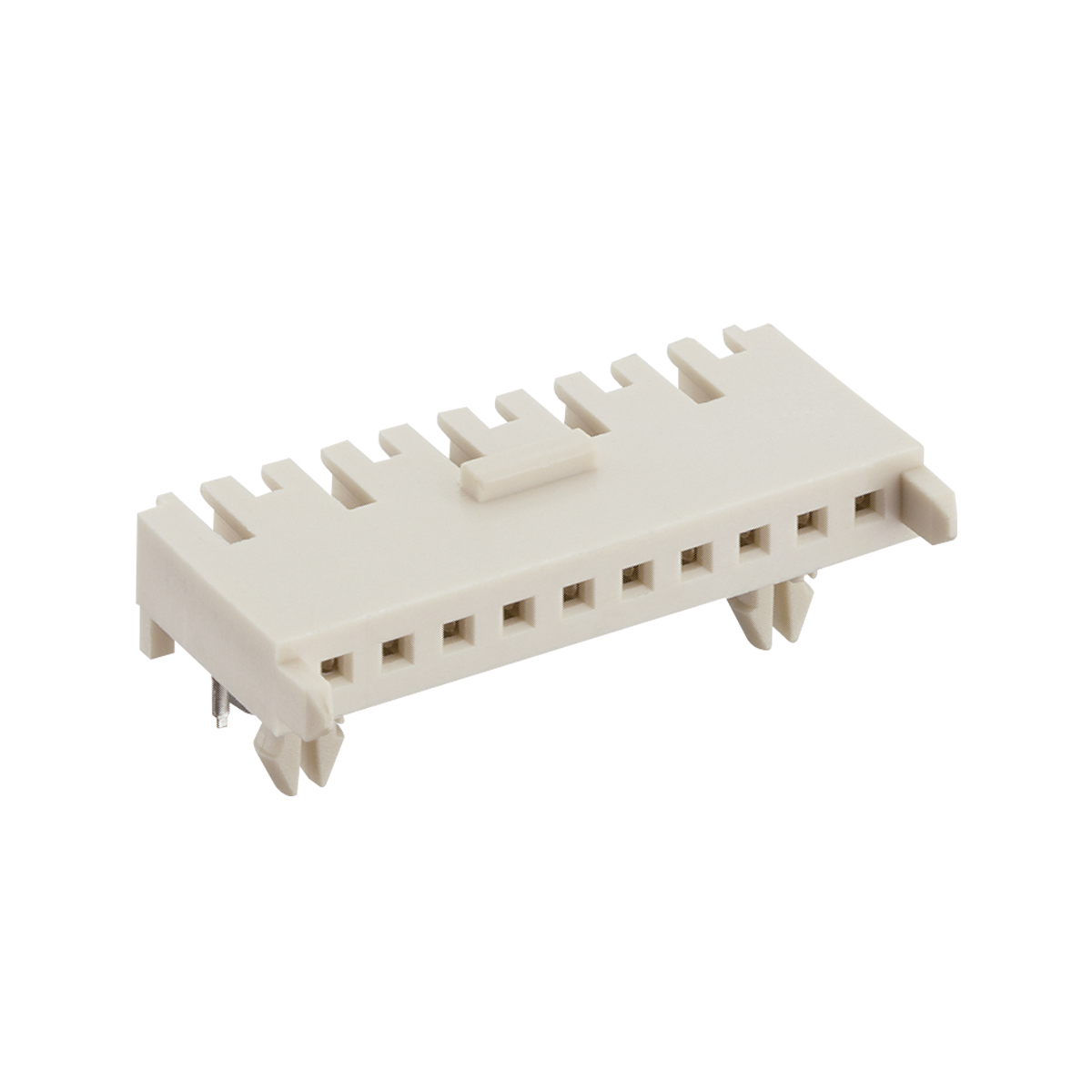

3801

Multimodul™ socket board, angular, with retaining hooks, with locking nose

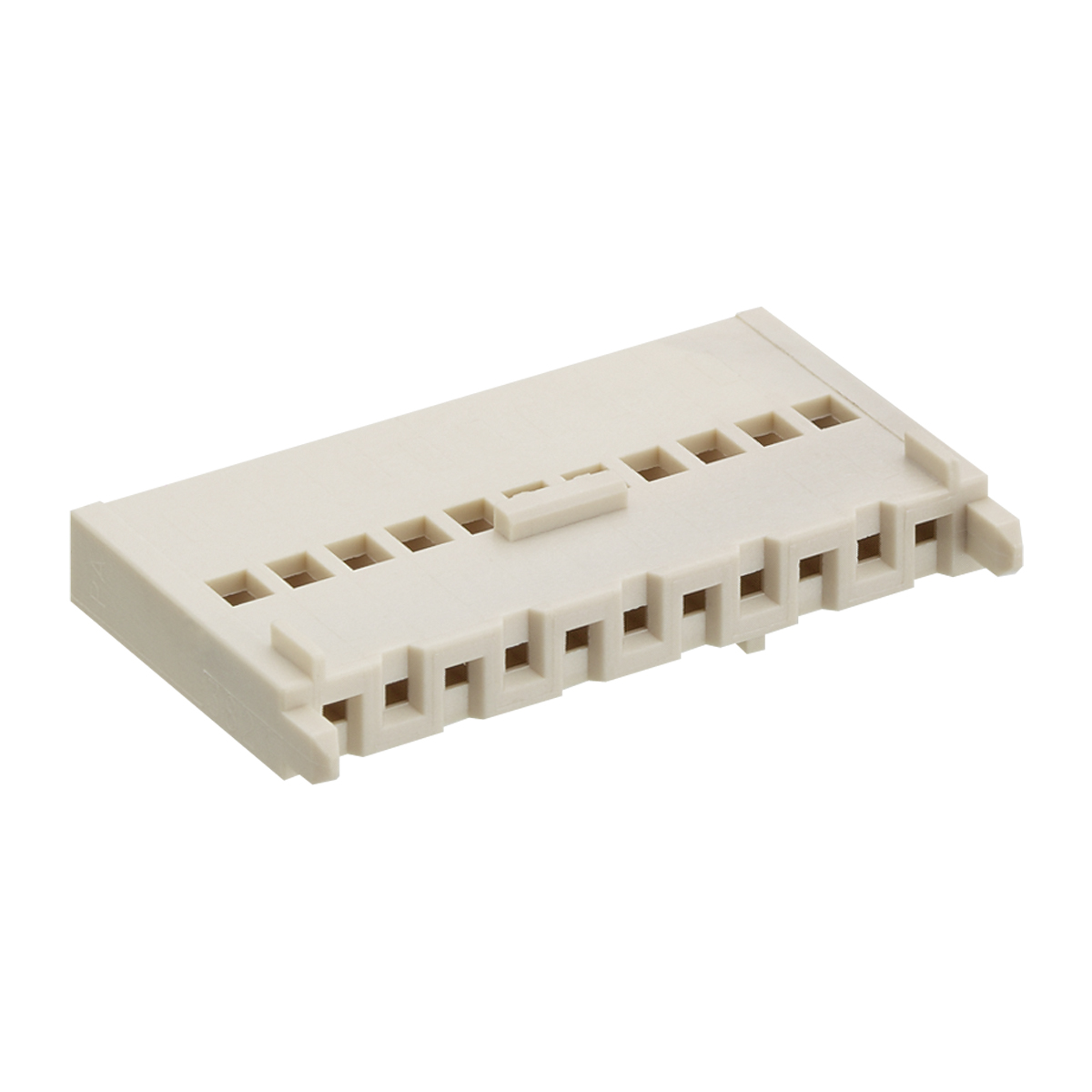

3823

Empty Multimodul™ housing for reception of crimp contacts, for indirect mating

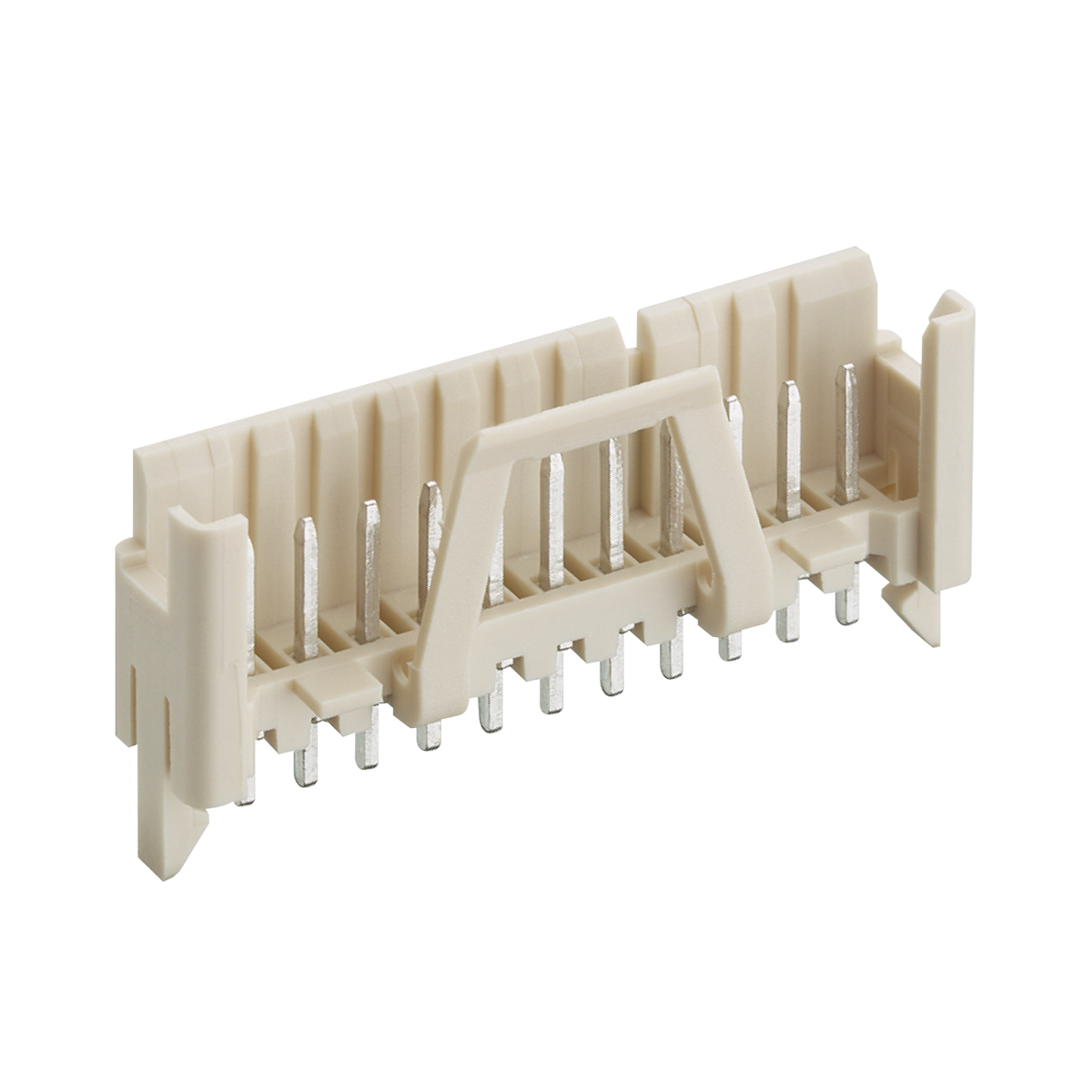

3850

Multimodul™ pin header, upright, with locking latch, with retaining hooks

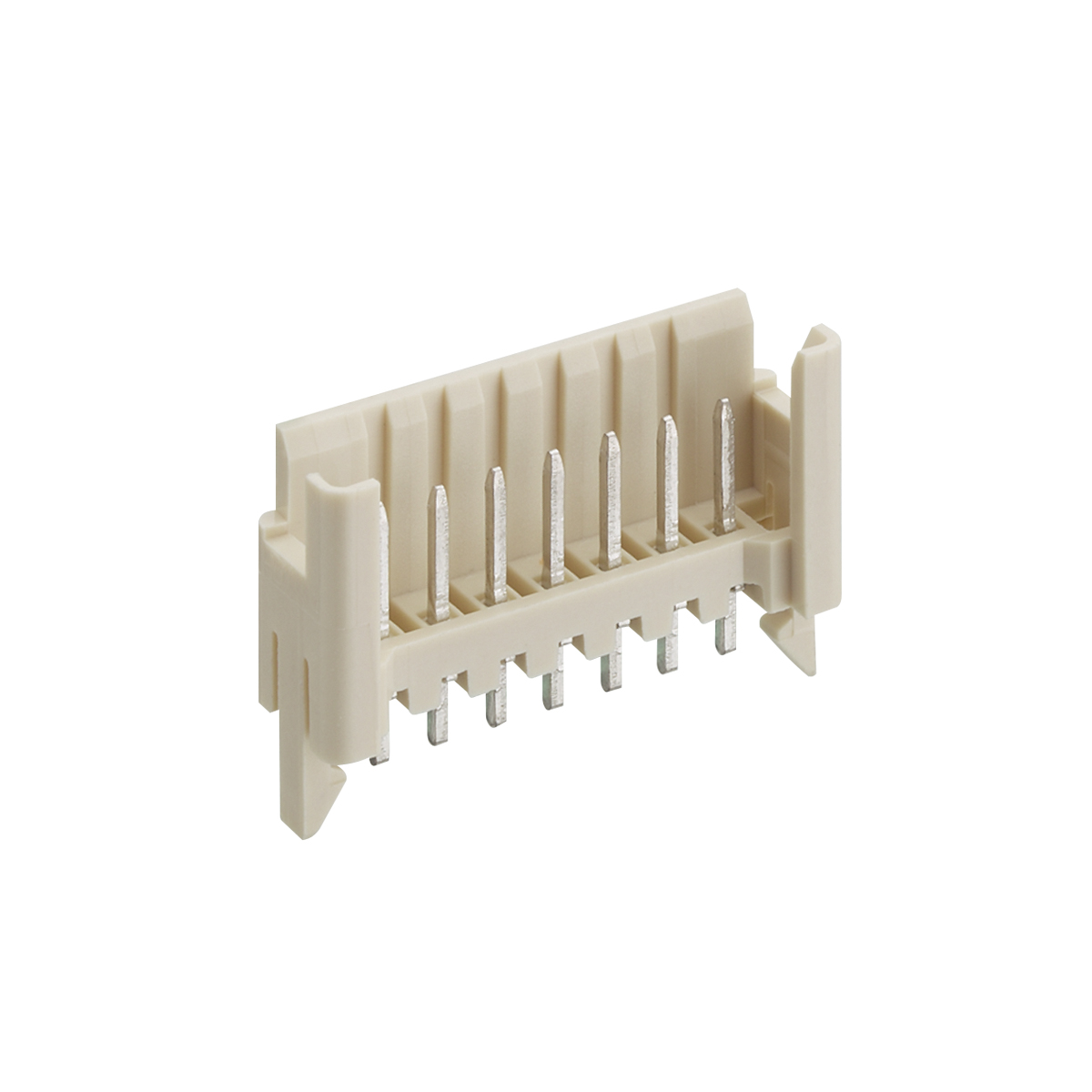

3851

Multimodul™ pin header, upright, with retaining hooks

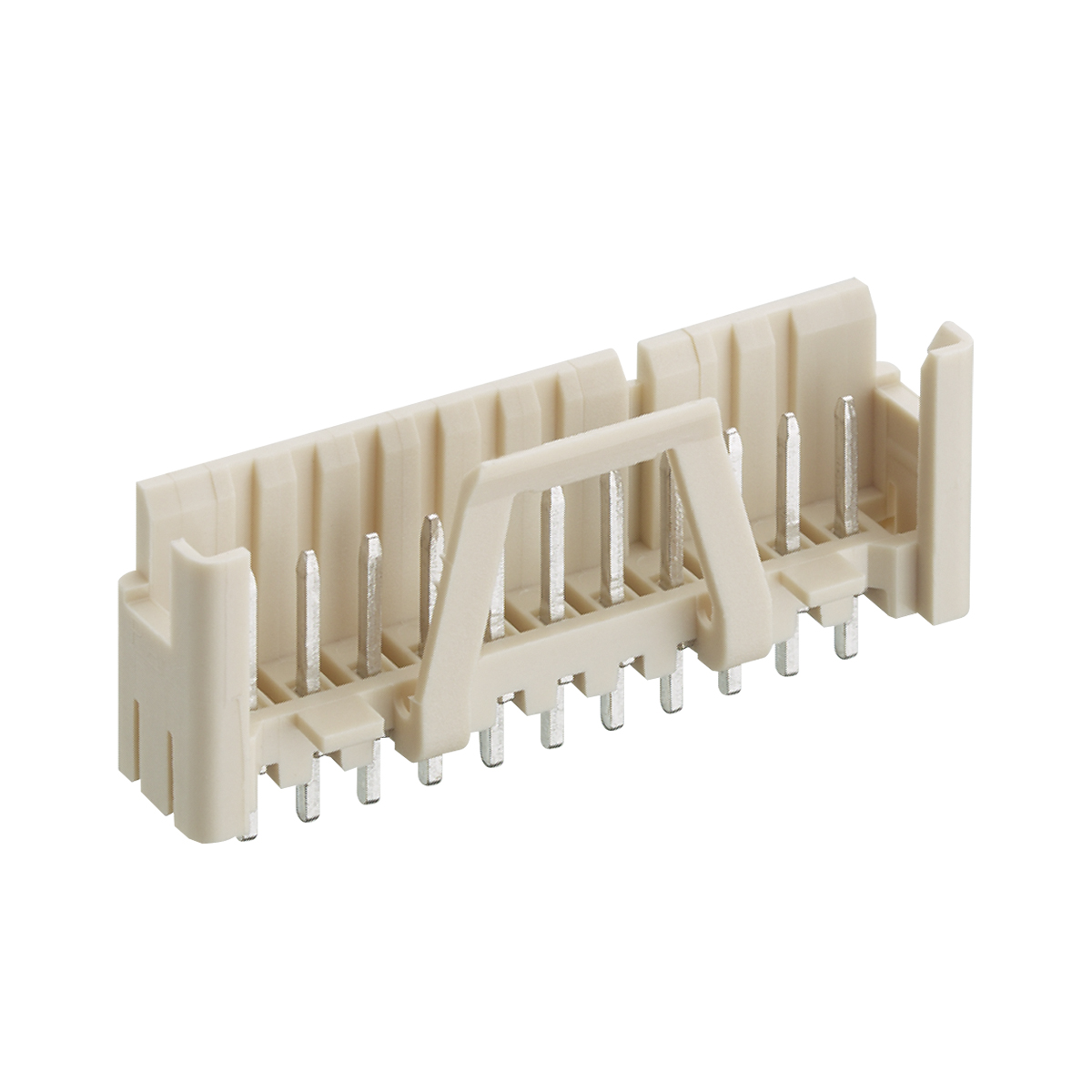

3852

Multimodul™ pin header, upright, with locking latch

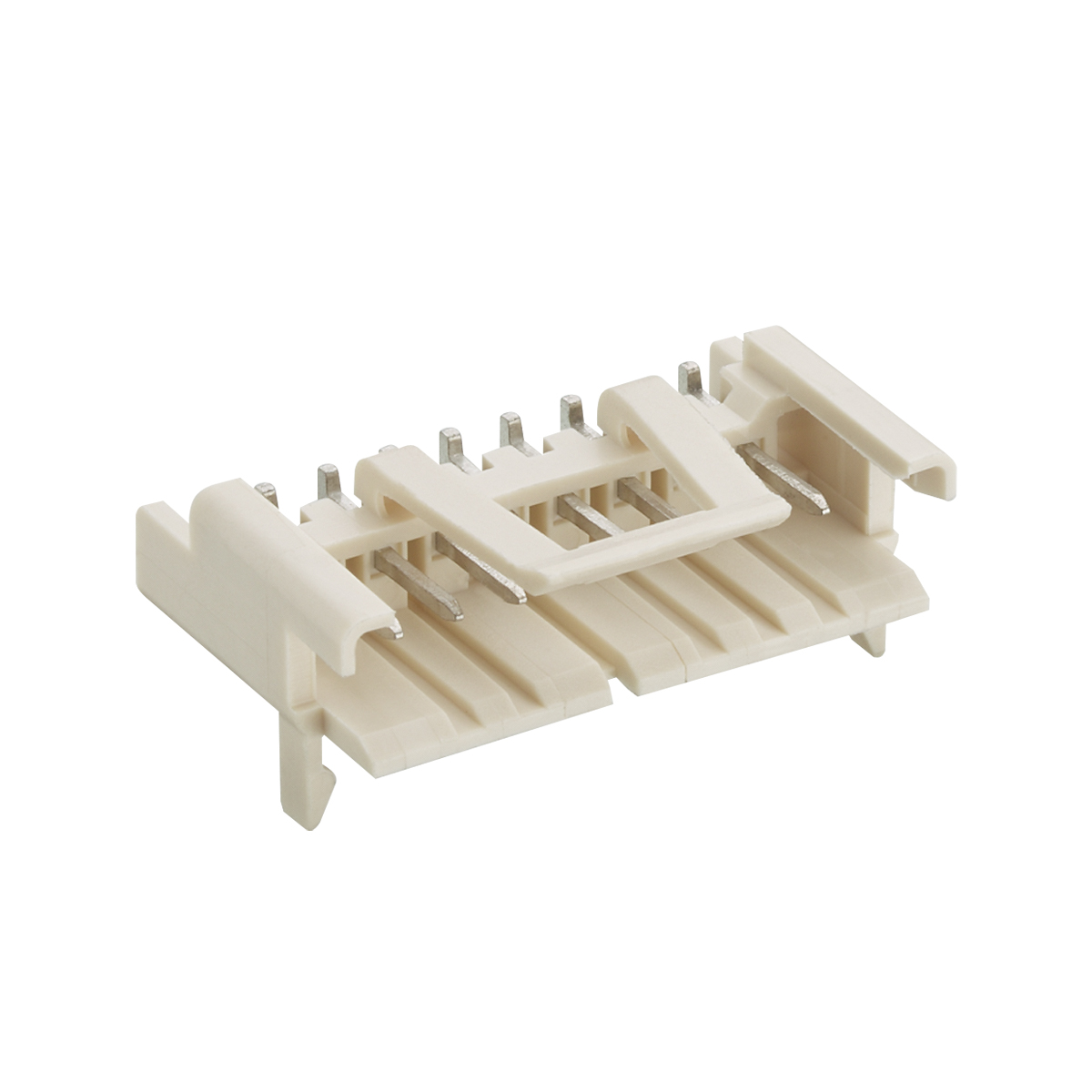

3853

Multimodul™ pin header, angular, with locking latch, with retaining hooks

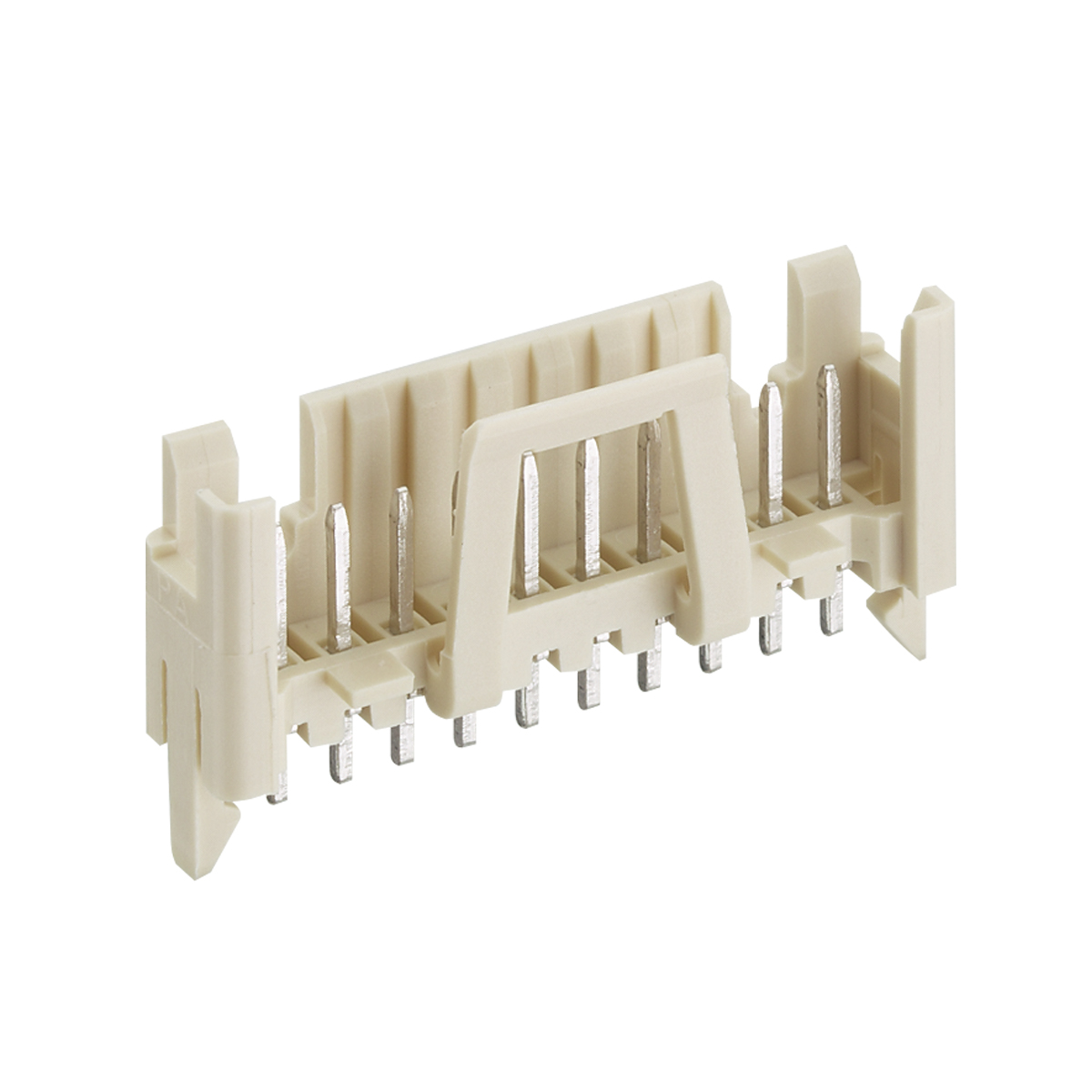

3855

Multimodul™ pin header, upright, with locking latch, with retaining hooks and cut-outs for 3801

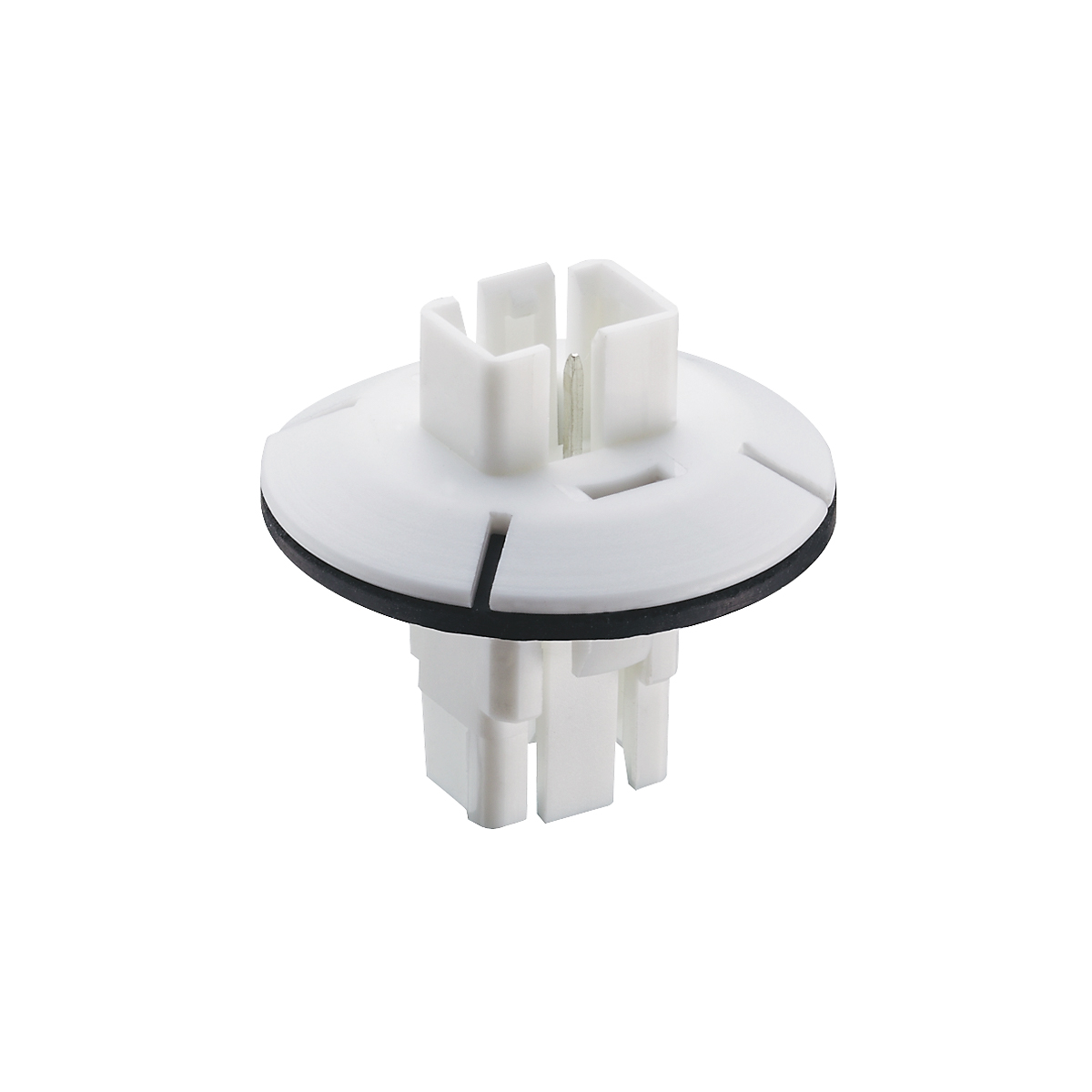

8385 A 01

Double Multimodul™ chassis pin header as feed-through connector, with locking latches and gasket

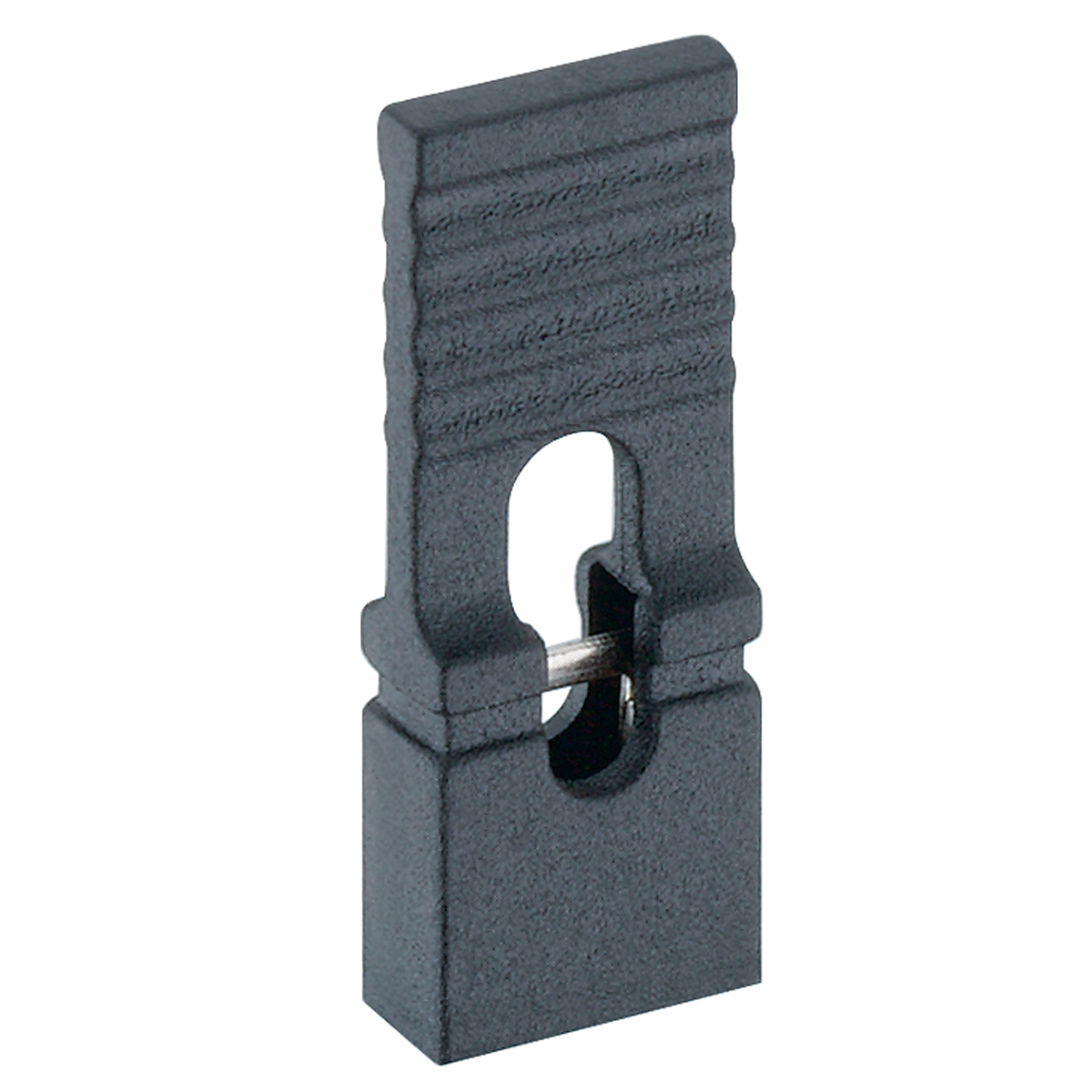

4143 01

Shorting link, with test pick-up and handle latch

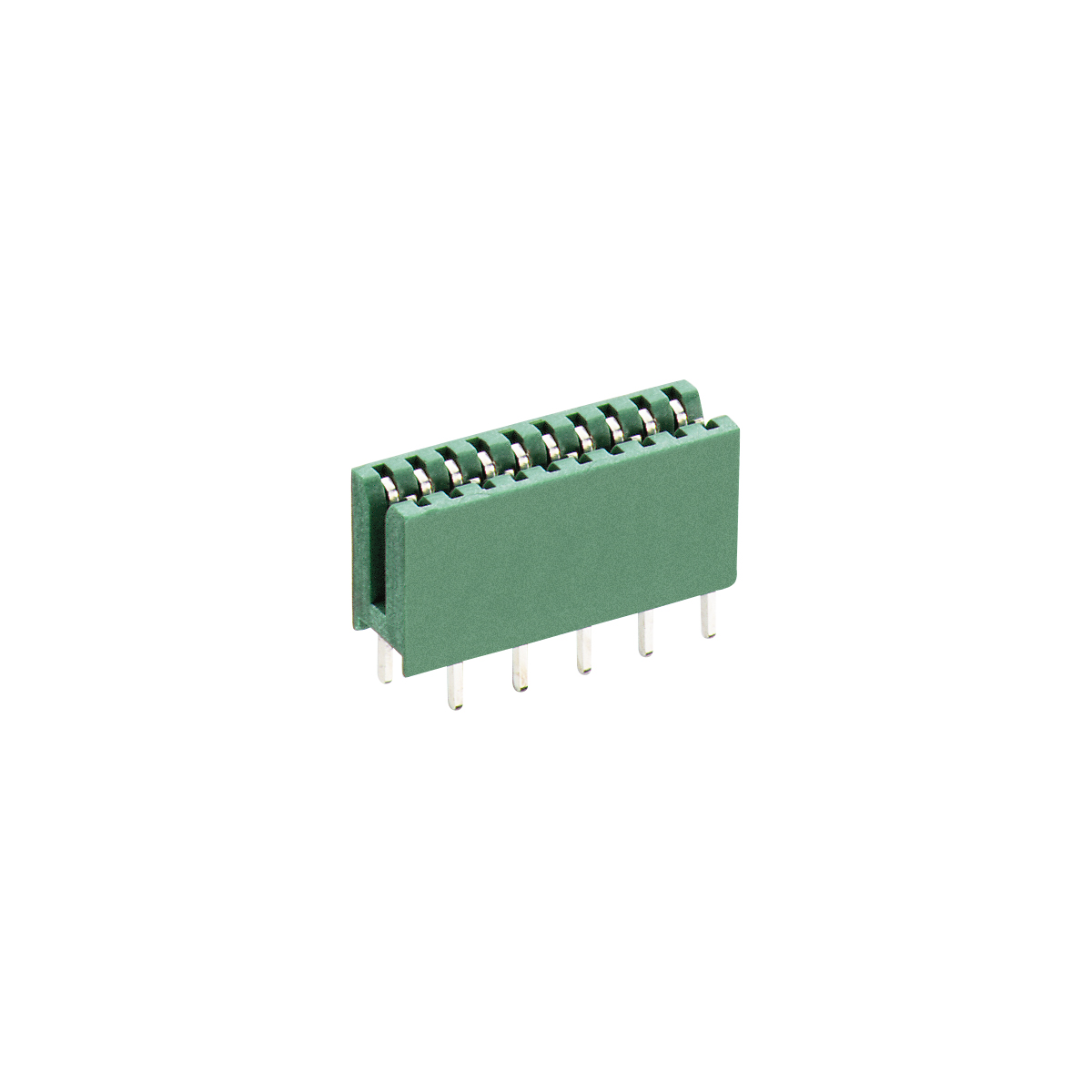

2,5 R

Socket board for direct mating, with solder pins

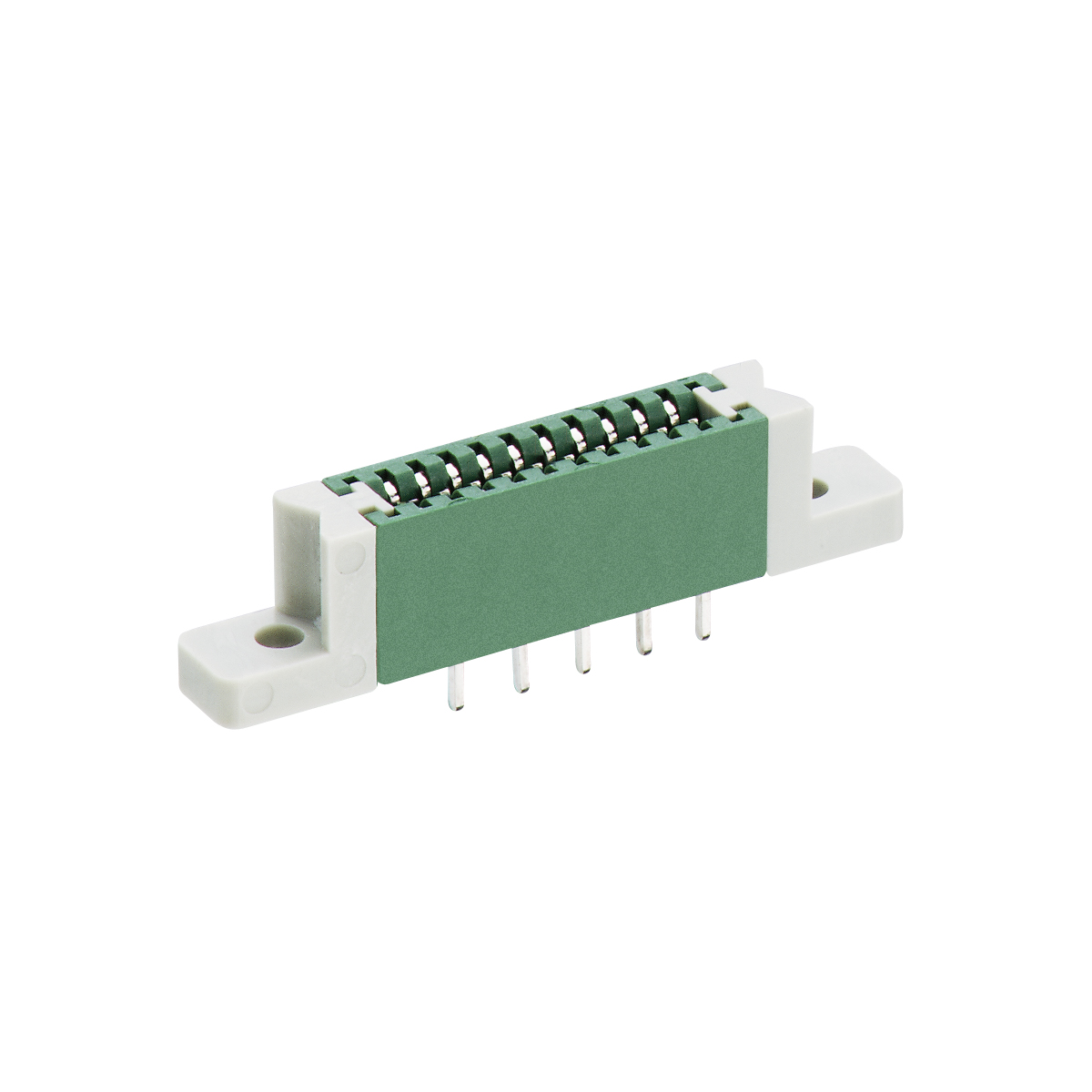

2,5 RF

Socket board for direct mating, with mounted pair of flanges F, with solder pins

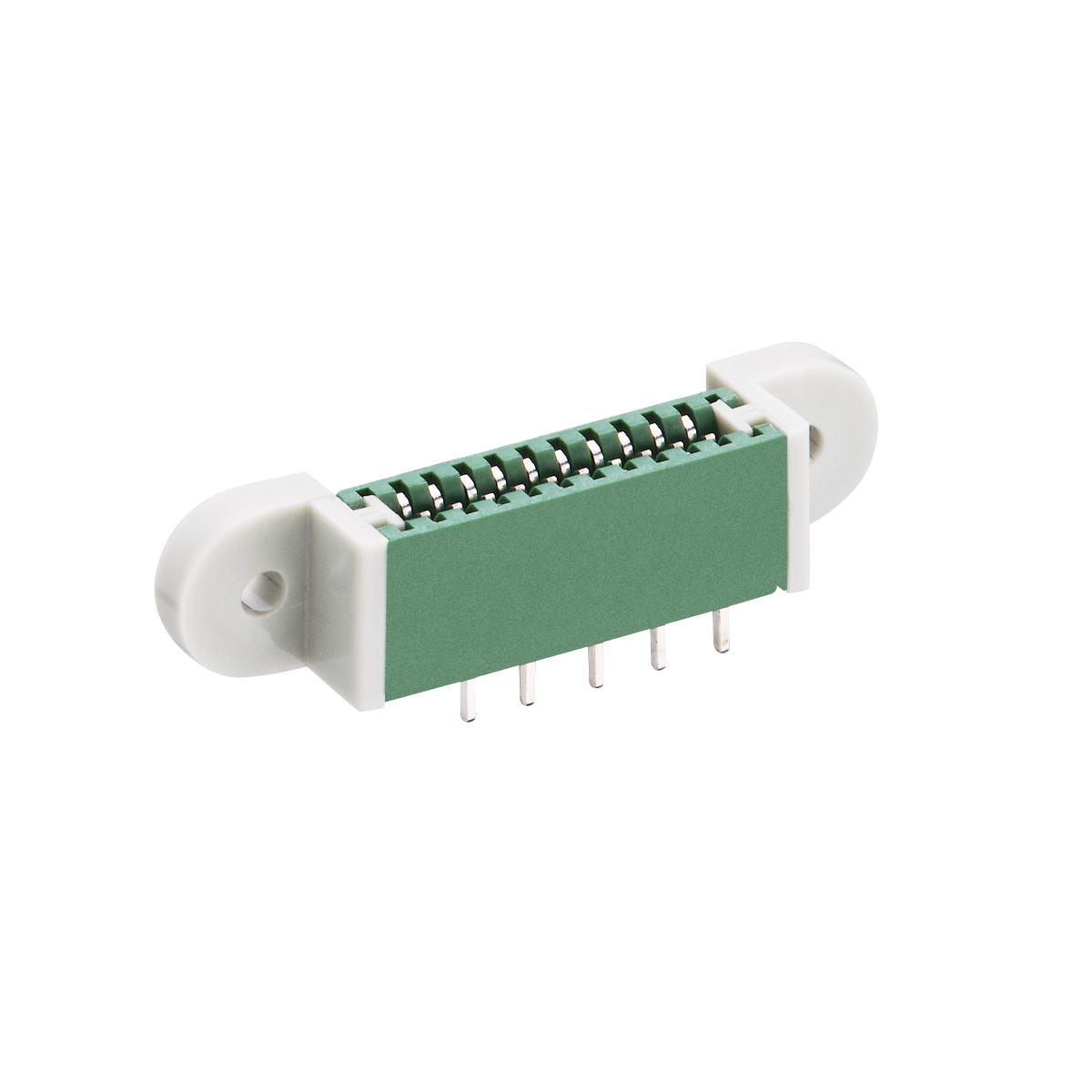

2,5 RFL

Socket board for direct mating, with mounted pair of flanges FL, with solder pins

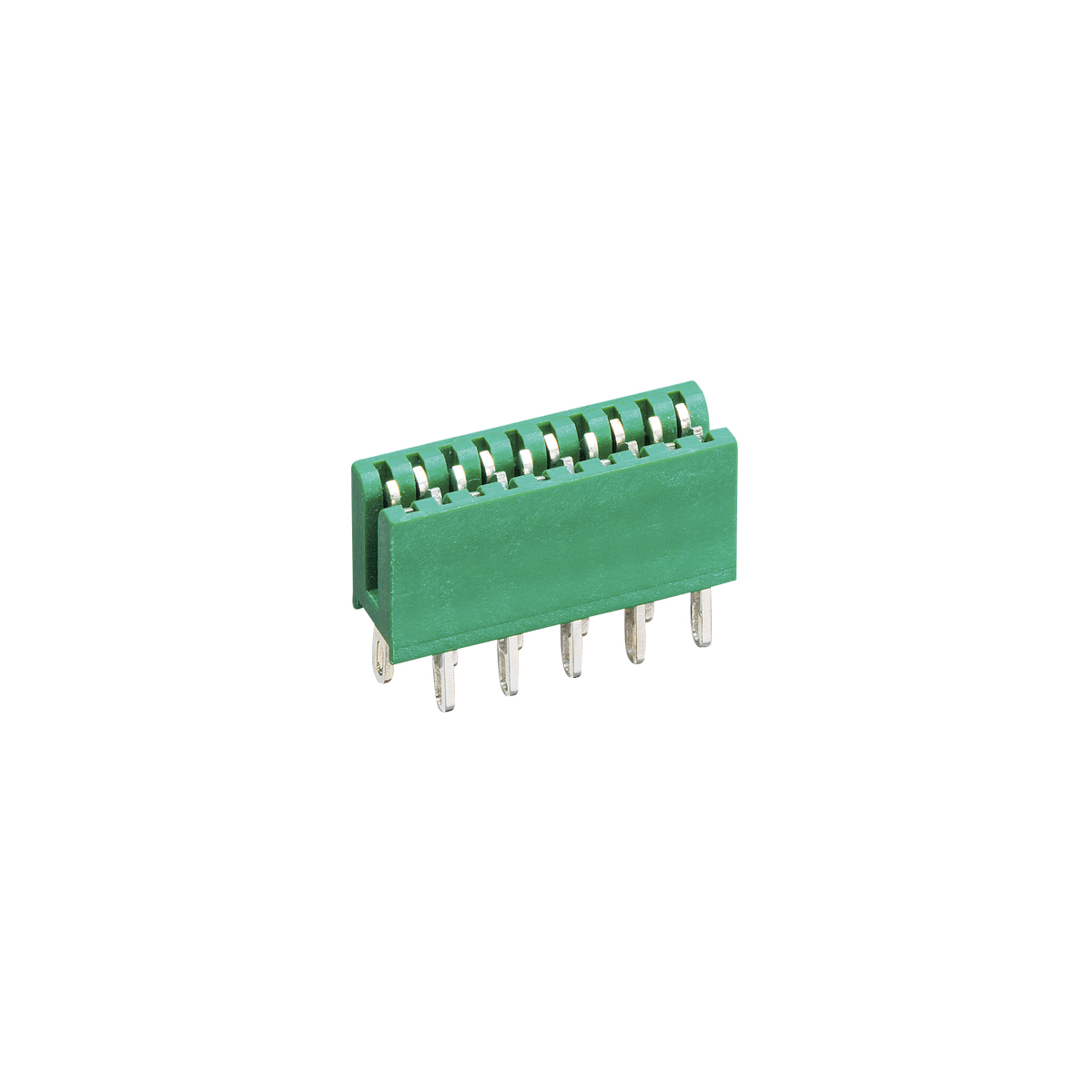

2,5 U

Socket board for direct mating, with solder eyes

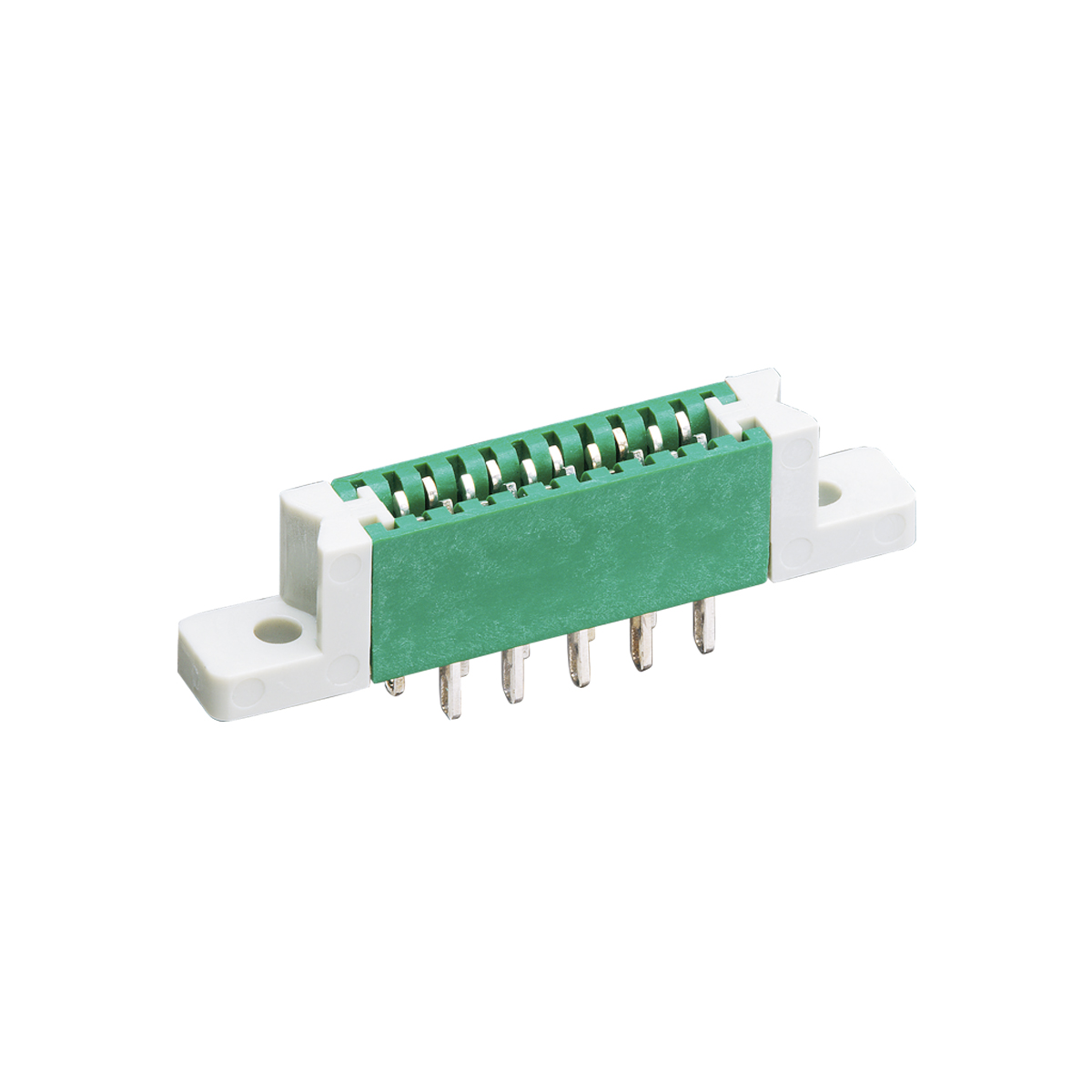

2,5 UF

Socket board for direct mating, with mounted pair of flanges F, with solder eyes

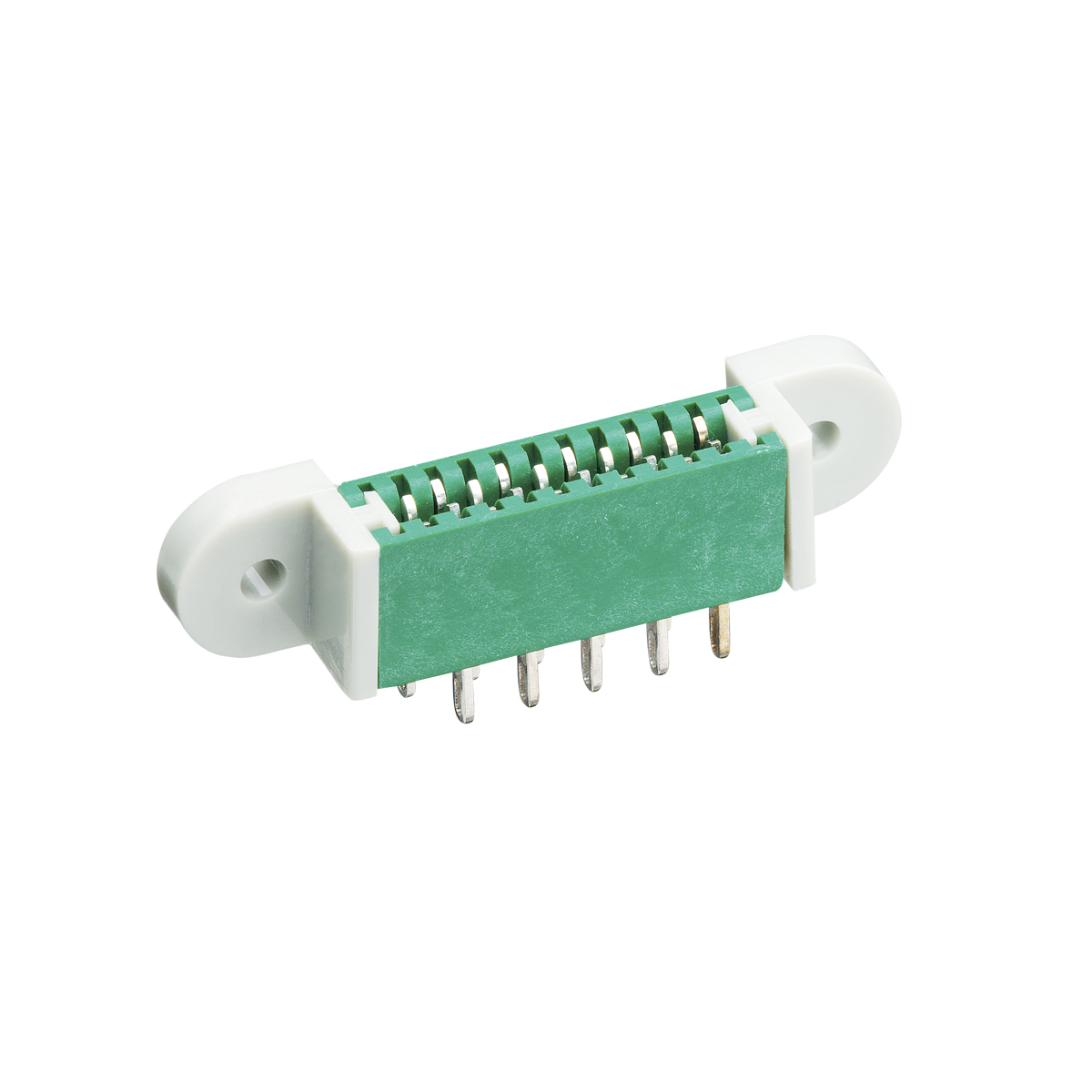

2,5 UFL

Socket board for direct mating, with mounted pair of flanges FL, with solder eyes

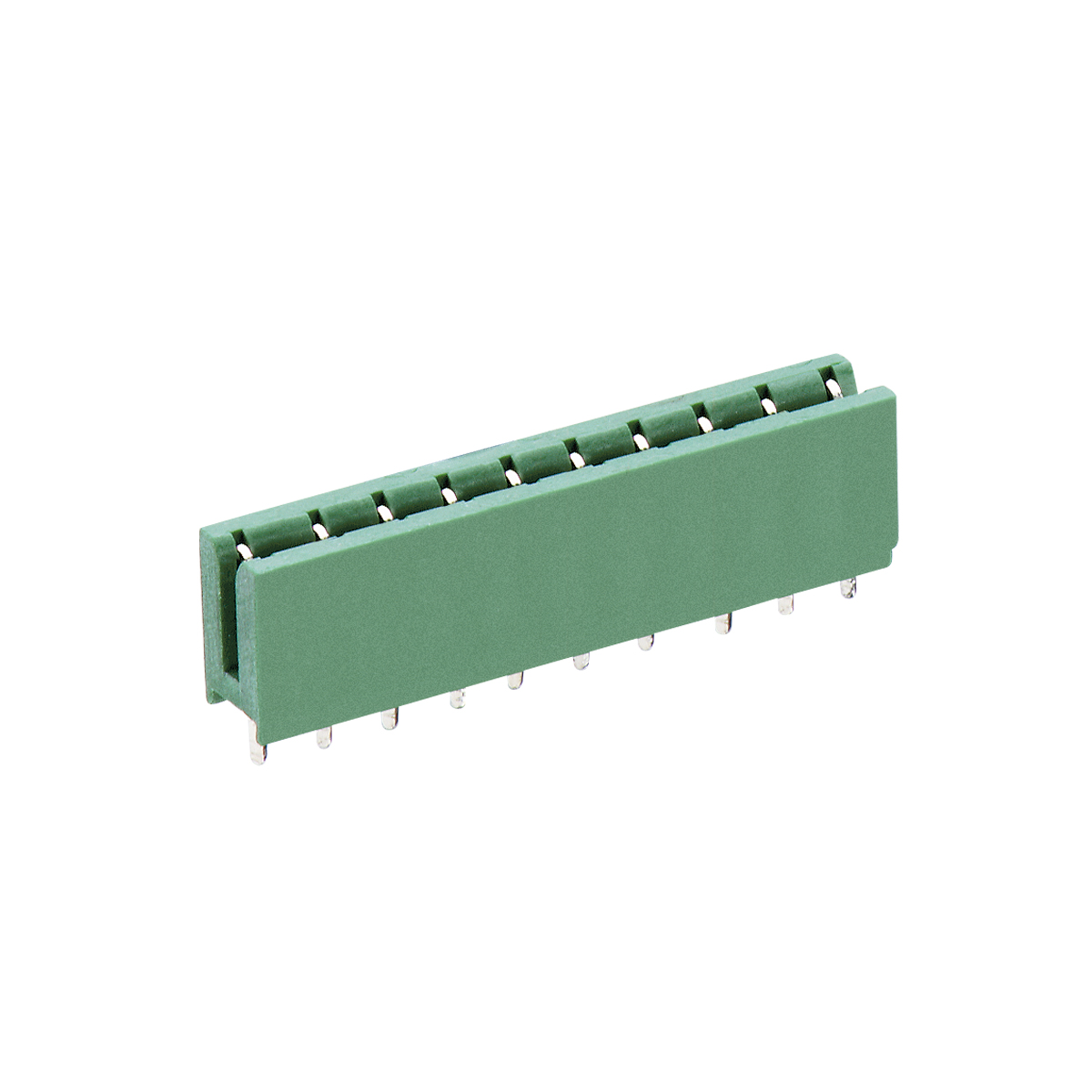

5 R

Socket board for direct mating, with solder pins

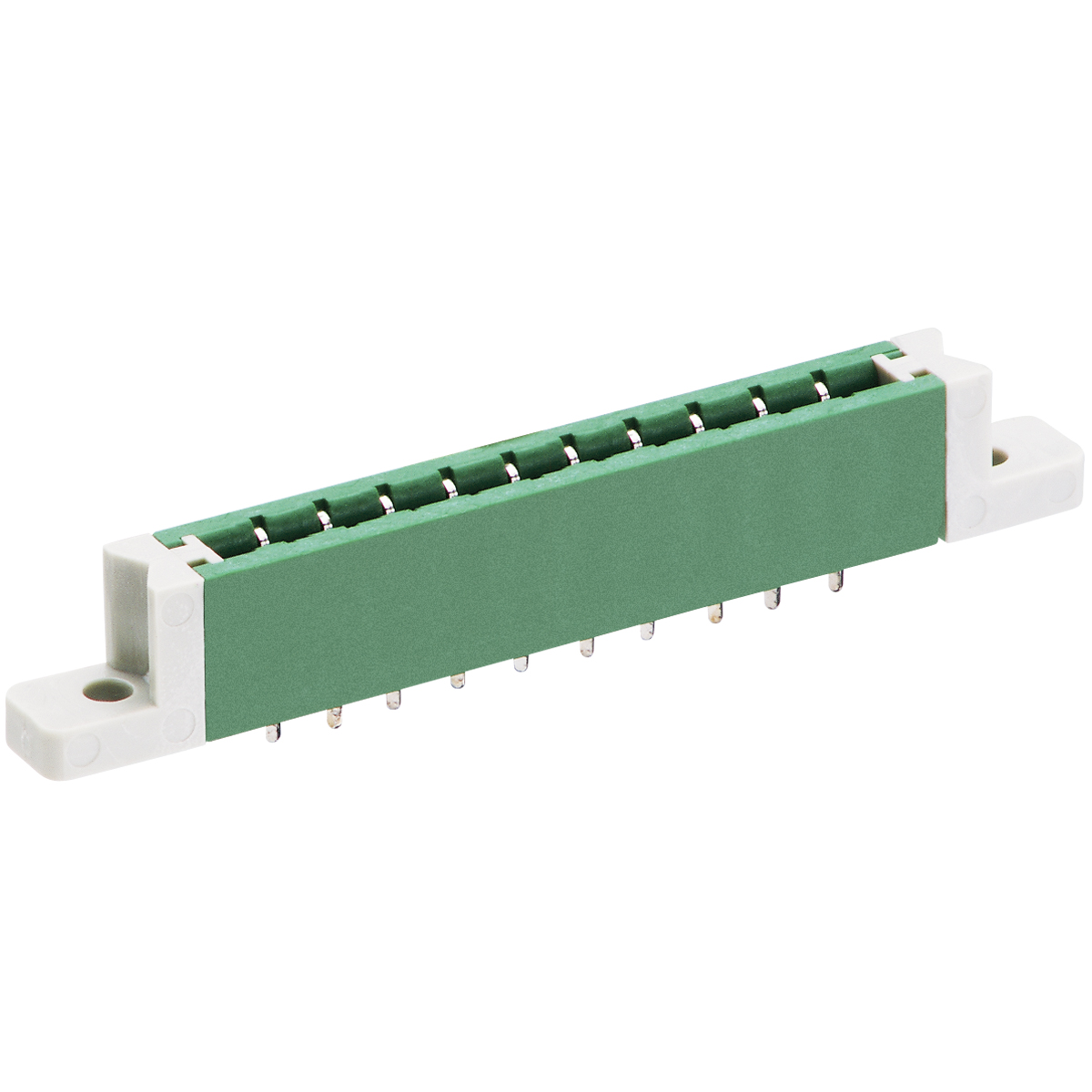

5 RF

Socket board for direct mating, with mounted pair of flanges F, with solder pins

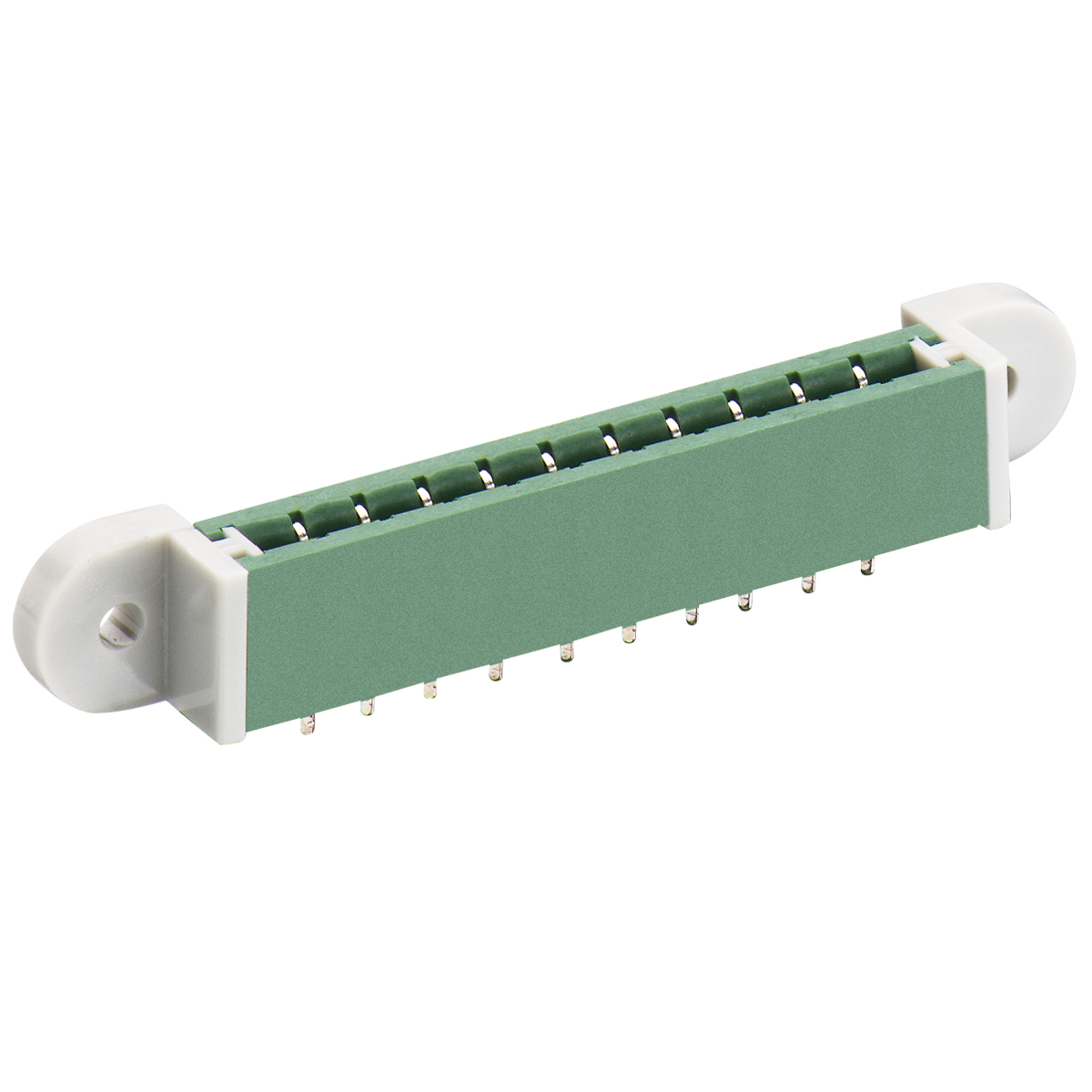

5 RFL

Socket board for direct mating, with mounted pair of flanges FL, with solder pins

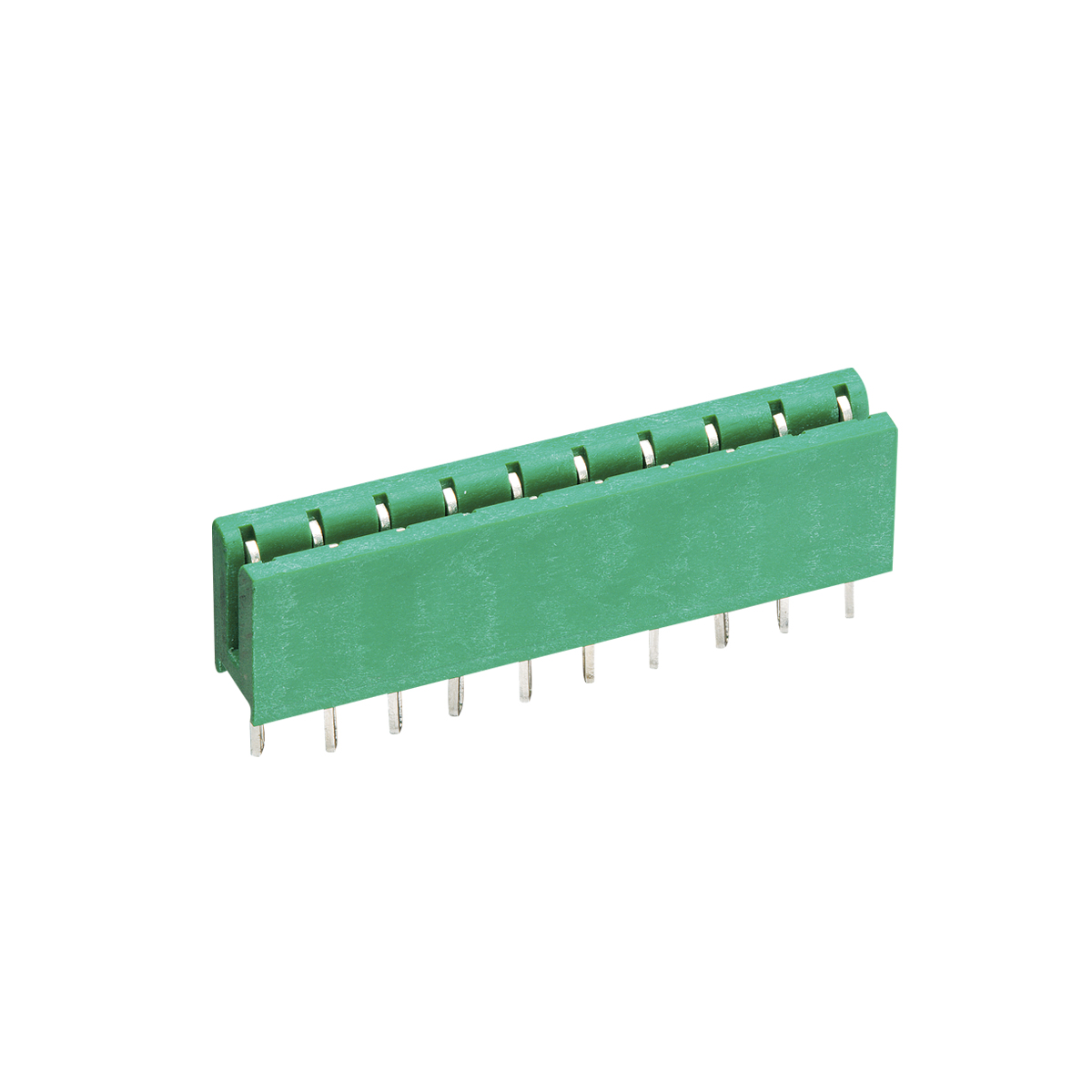

5 U

Socket board for direct mating, with solder eyes

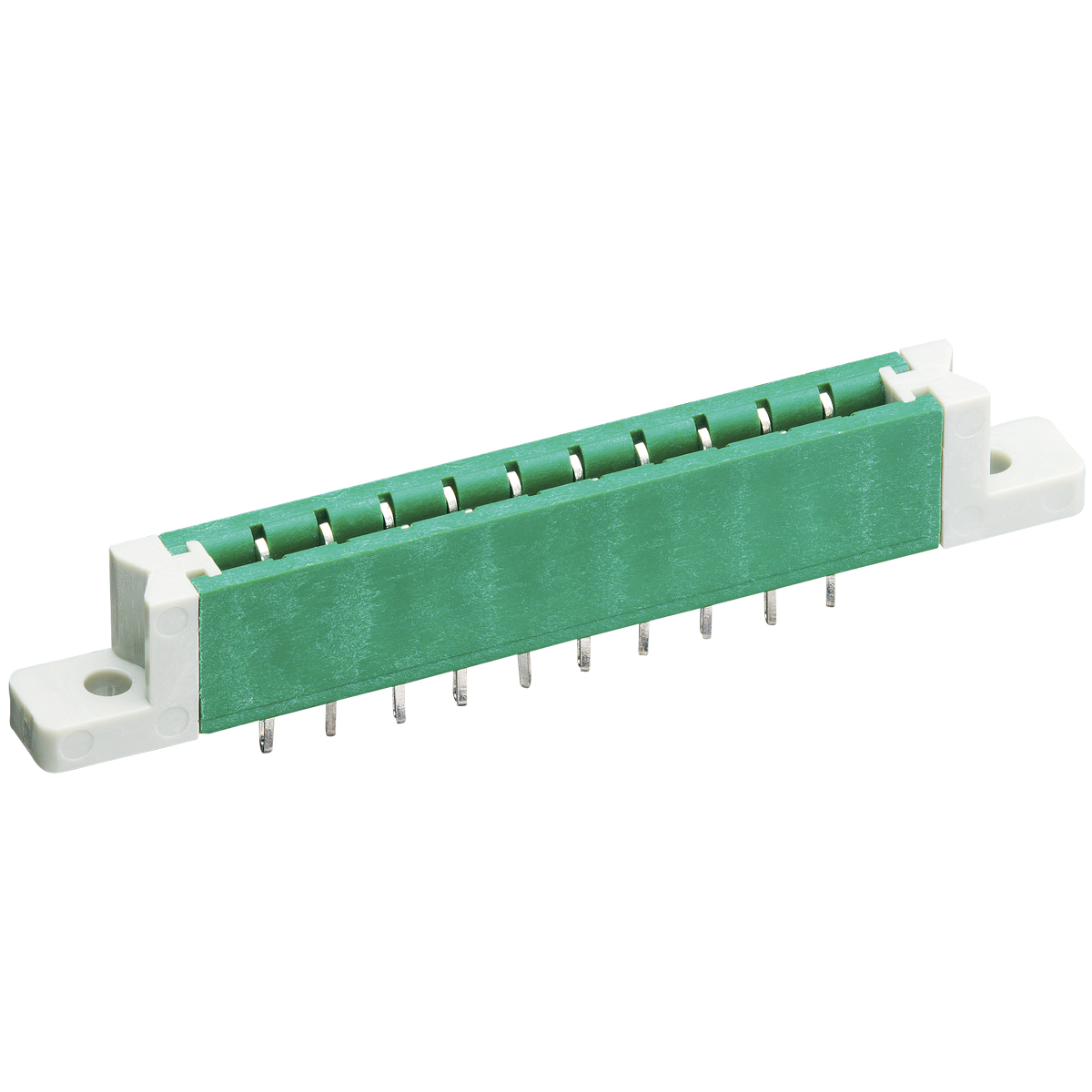

5 UF

Socket board for direct mating, with mounted pair of flanges F, with solder eyes

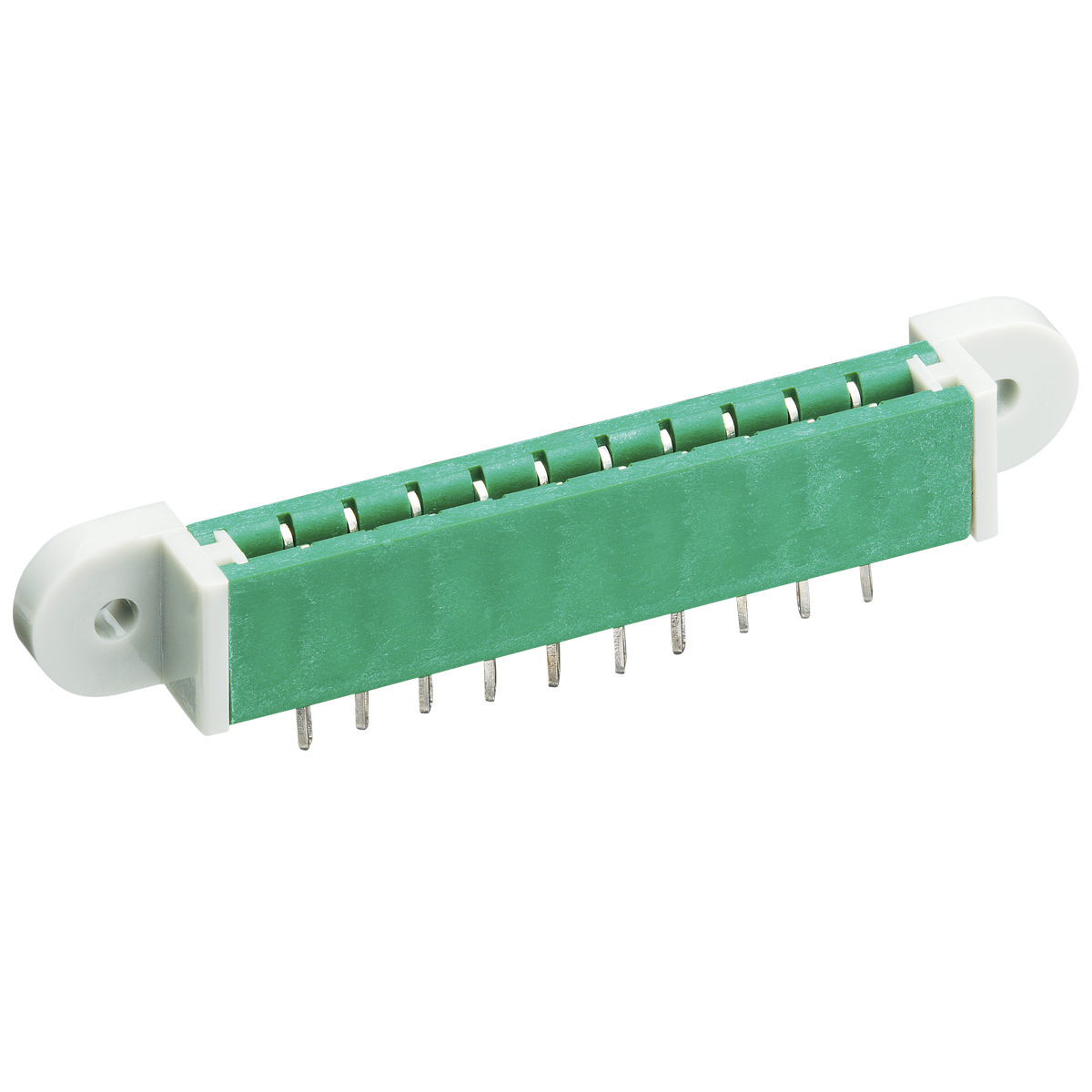

5 UFL

Socket board for direct mating, with mounted pair of flanges FL, with solder eyes

5116

Socket board for direct mating, with solder pinscontact pitch 2.54 mm

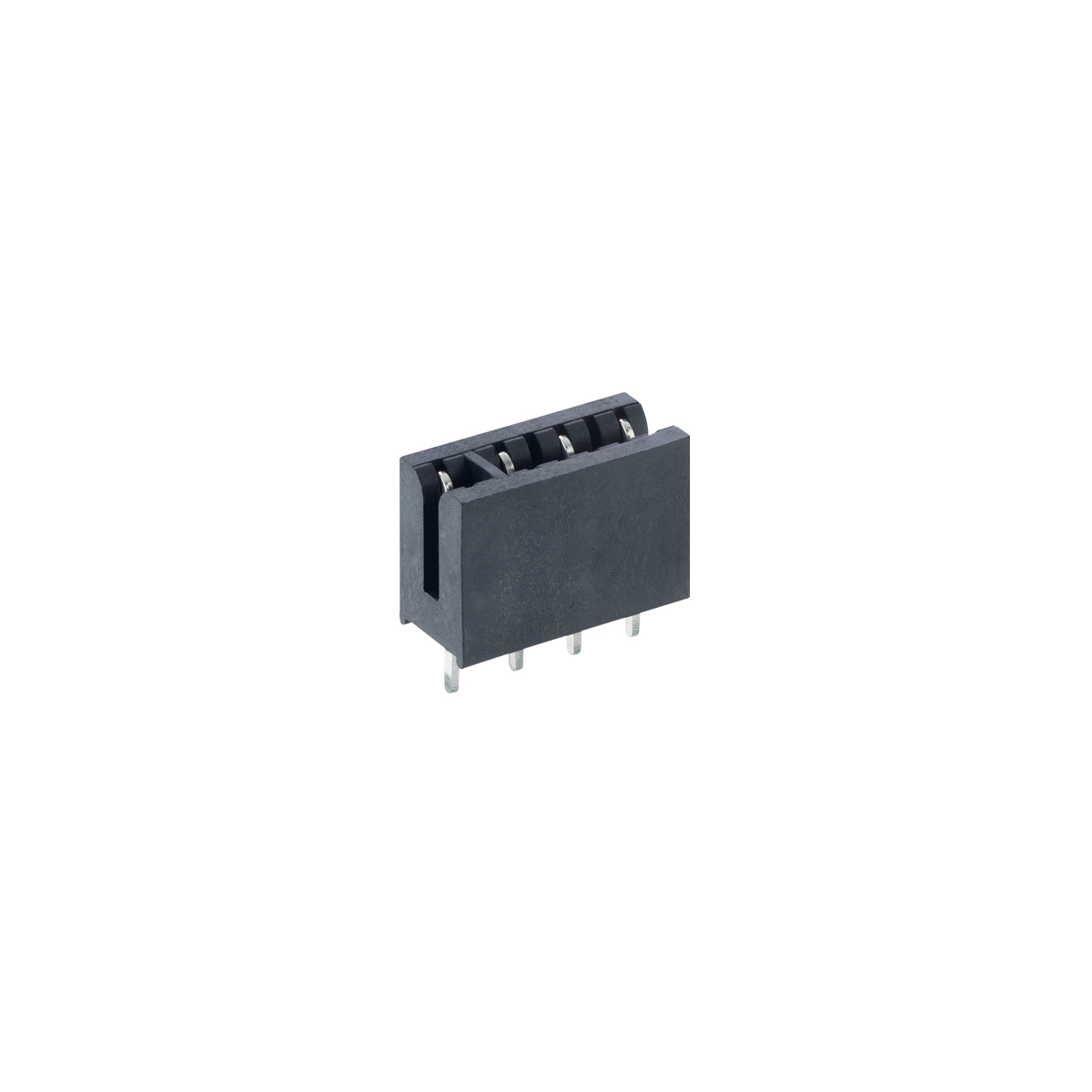

8514 A 01

Socket board for direct mating, with or without keying rib, with solder pinscontact pitch 5.08 mm

8514 A 02

Socket board for direct mating, with or without keying rib, with solder pinscontact pitch 5.08 mm

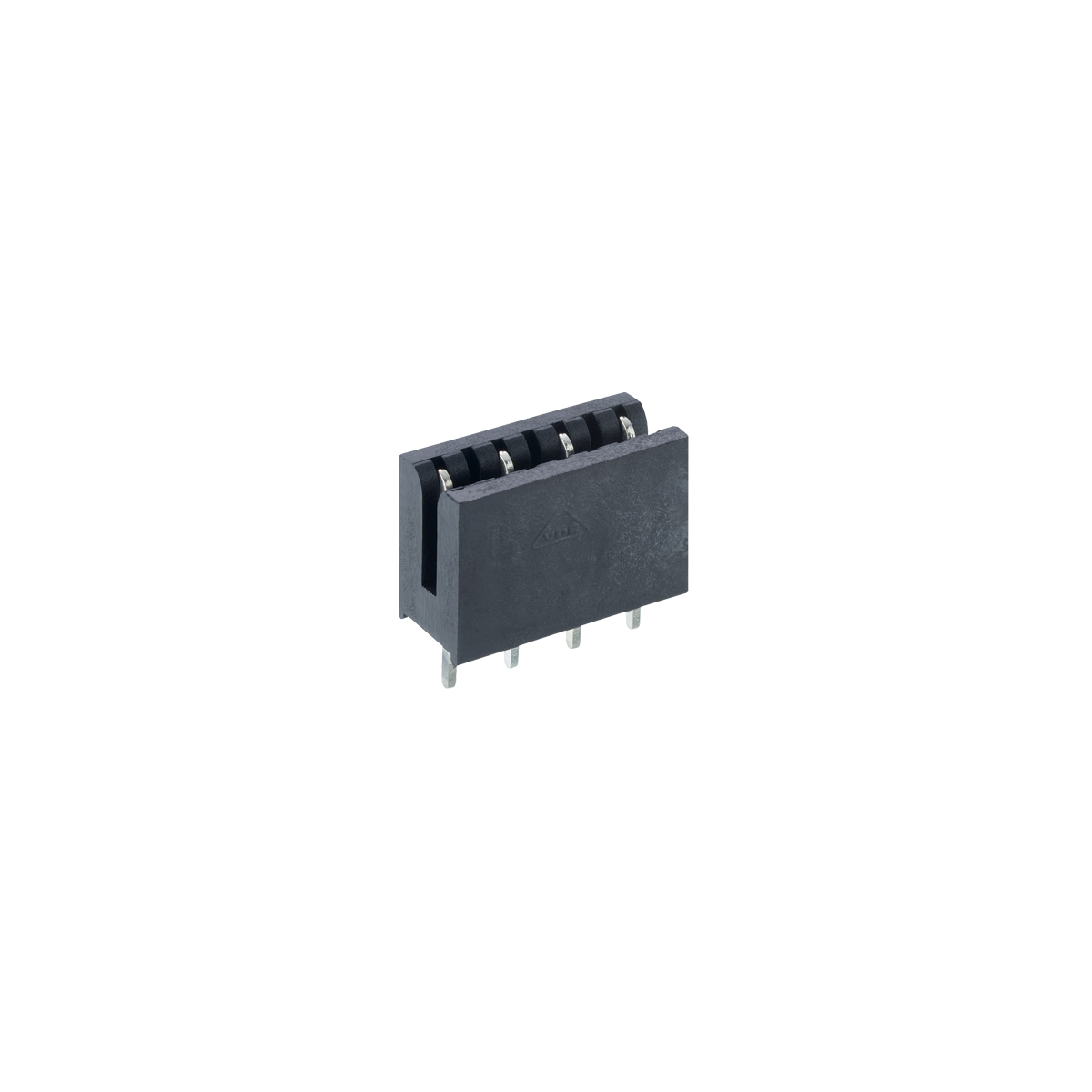

8514 A 03

Socket board for direct mating, with or without keying rib, with solder pinscontact pitch 5.08 mm

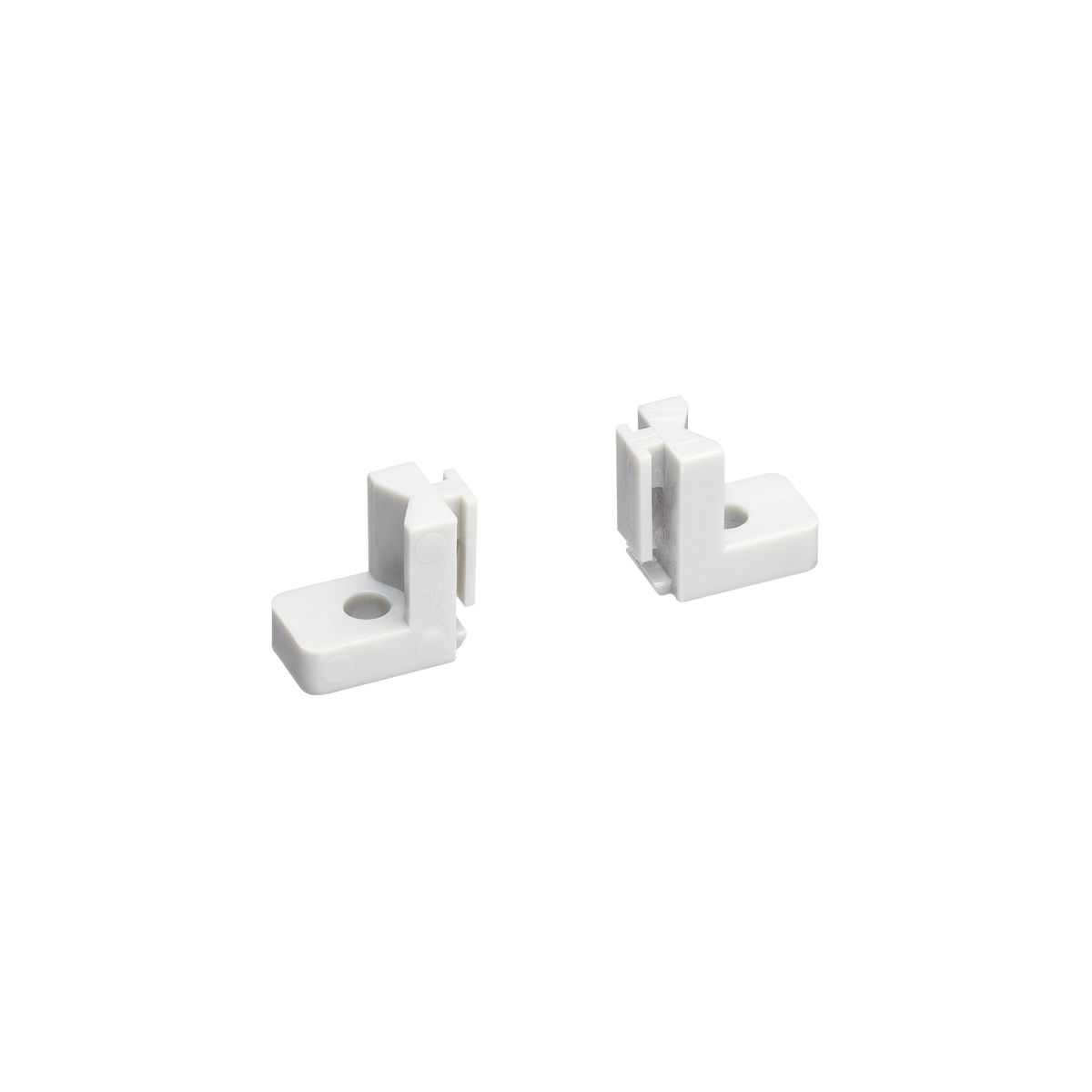

F

Flange, pair, for mounting in mating direction, attachable with loss of one contact spring each

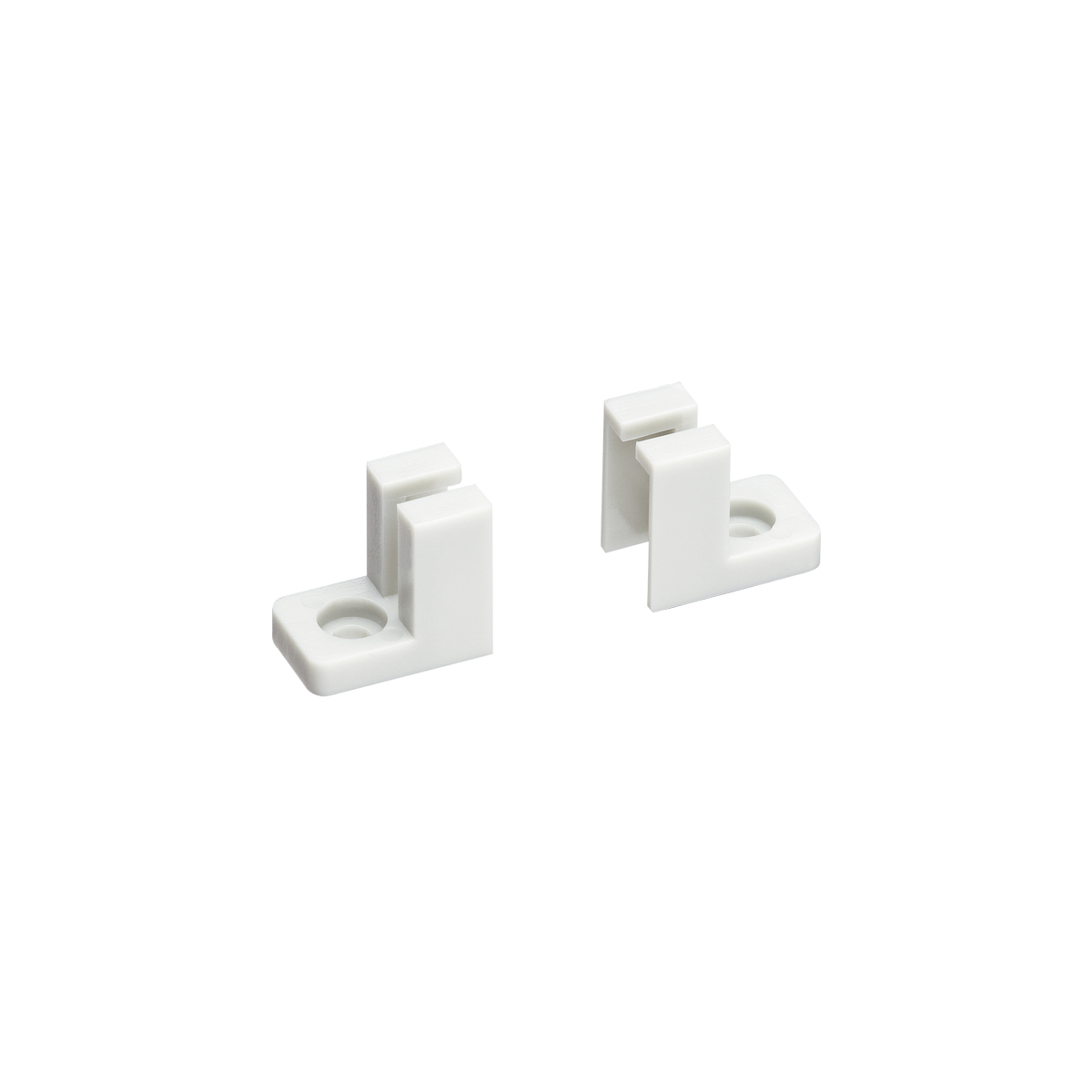

FD

Flange, pair, for mounting in mating direction, attachable without loss of contact positions

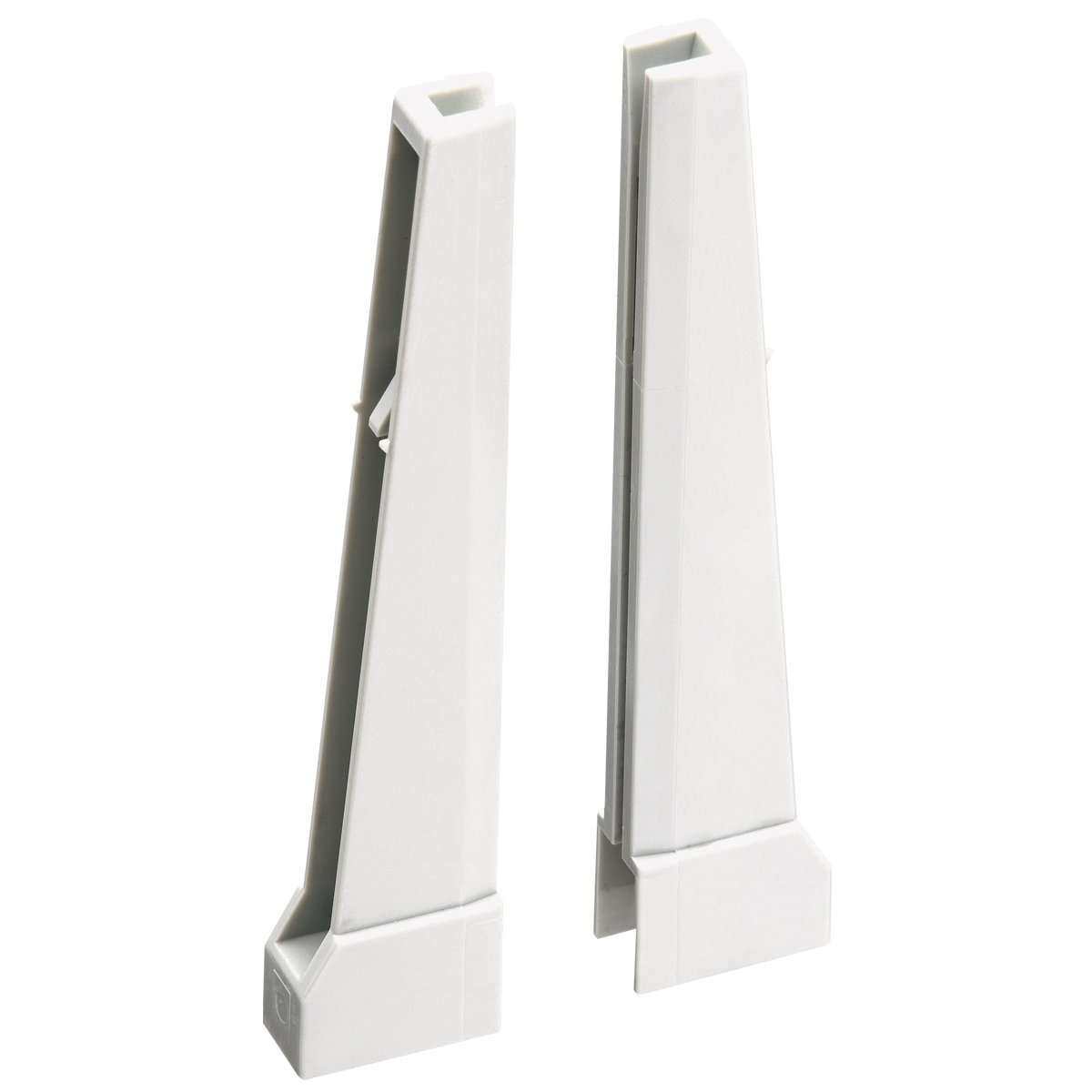

FF

Guide flange, pair, placeable onto socket boards equipped with flange F, with locking hooks

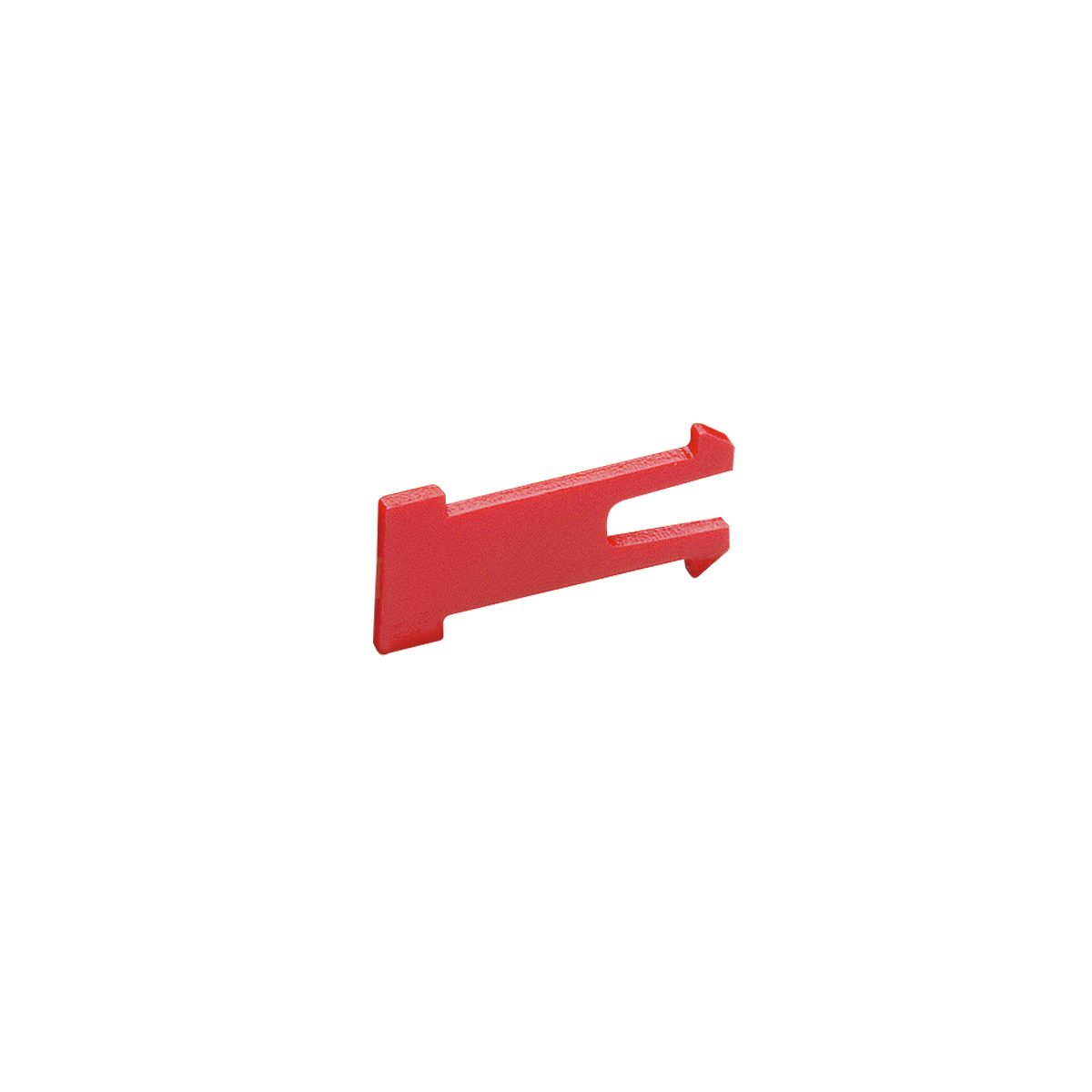

SP 3

Keying insert for socket boards 2,5..., 3,96..., 5,08, insertable instead of a contact spring

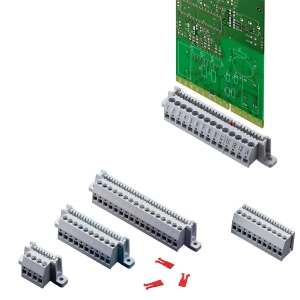

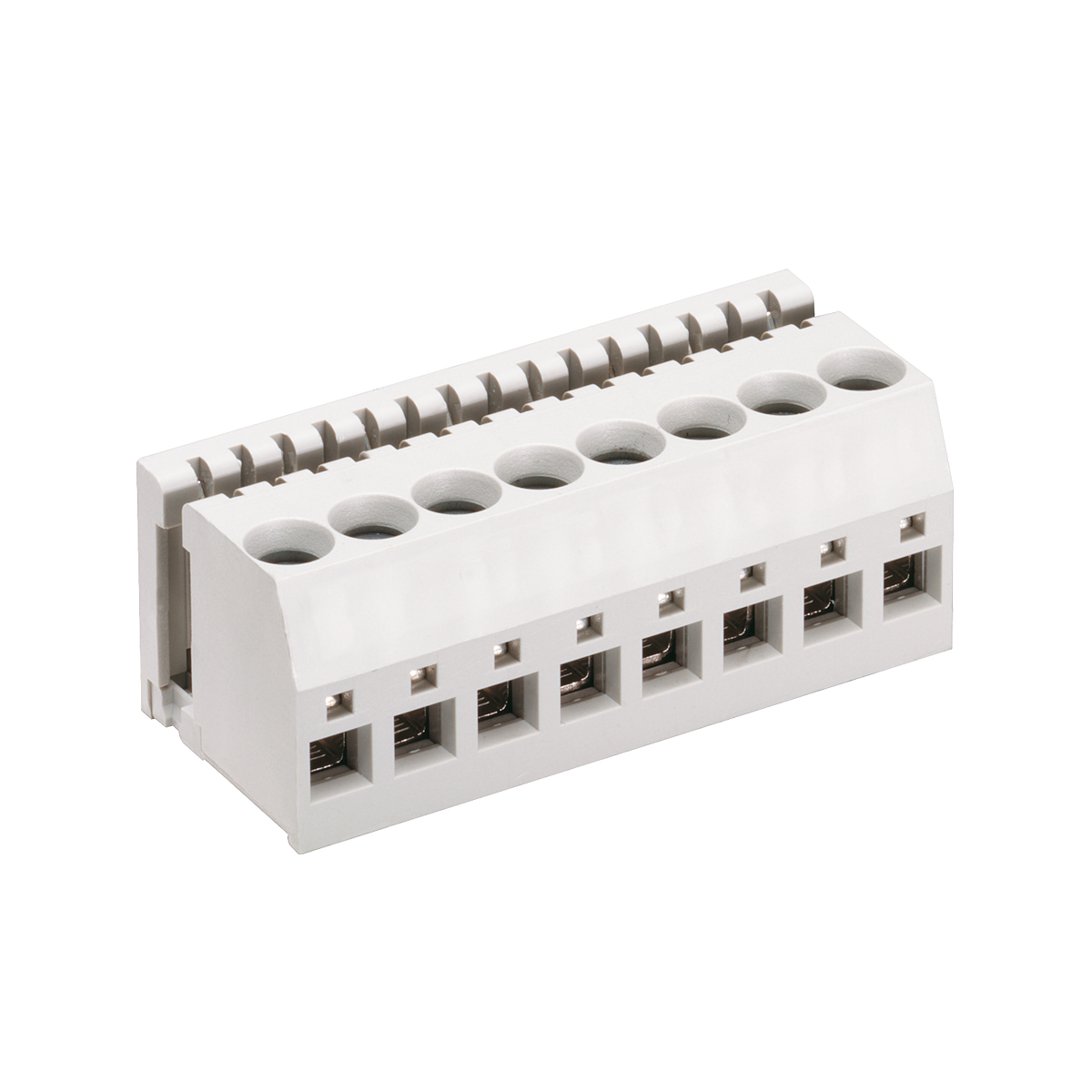

5 RS

Socket board for direct mating with screw terminals, lift clamp without protection against misplacing, with test hole, consecutive placement without loss of pitch

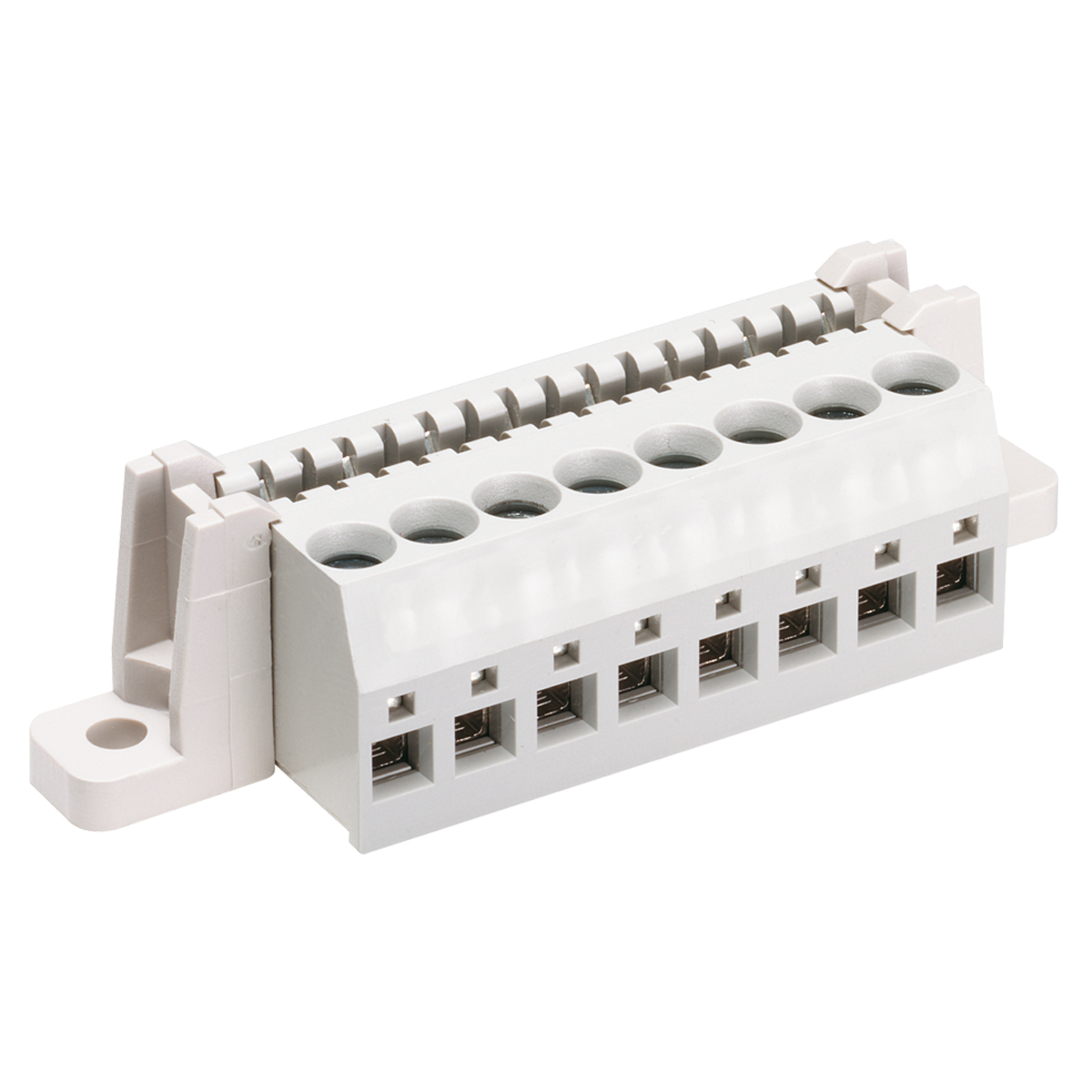

5 RS FK

Socket board for direct mating with screw terminals, lift clamp without protection against misplacing, with test hole and mounted pair of flanges FK

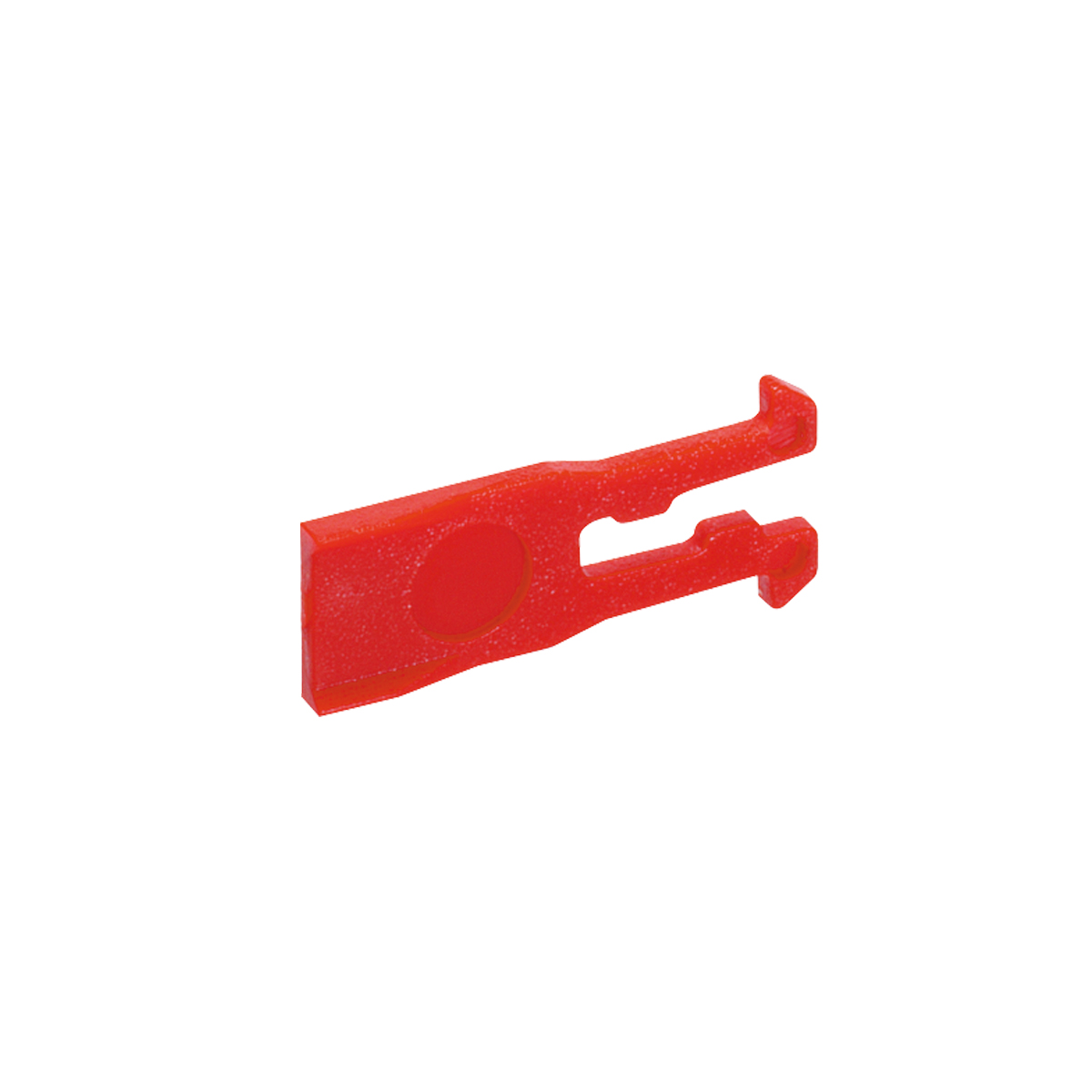

SP 4

Keying insert for socket boards with screw terminals 5 RS and 5 RS FK

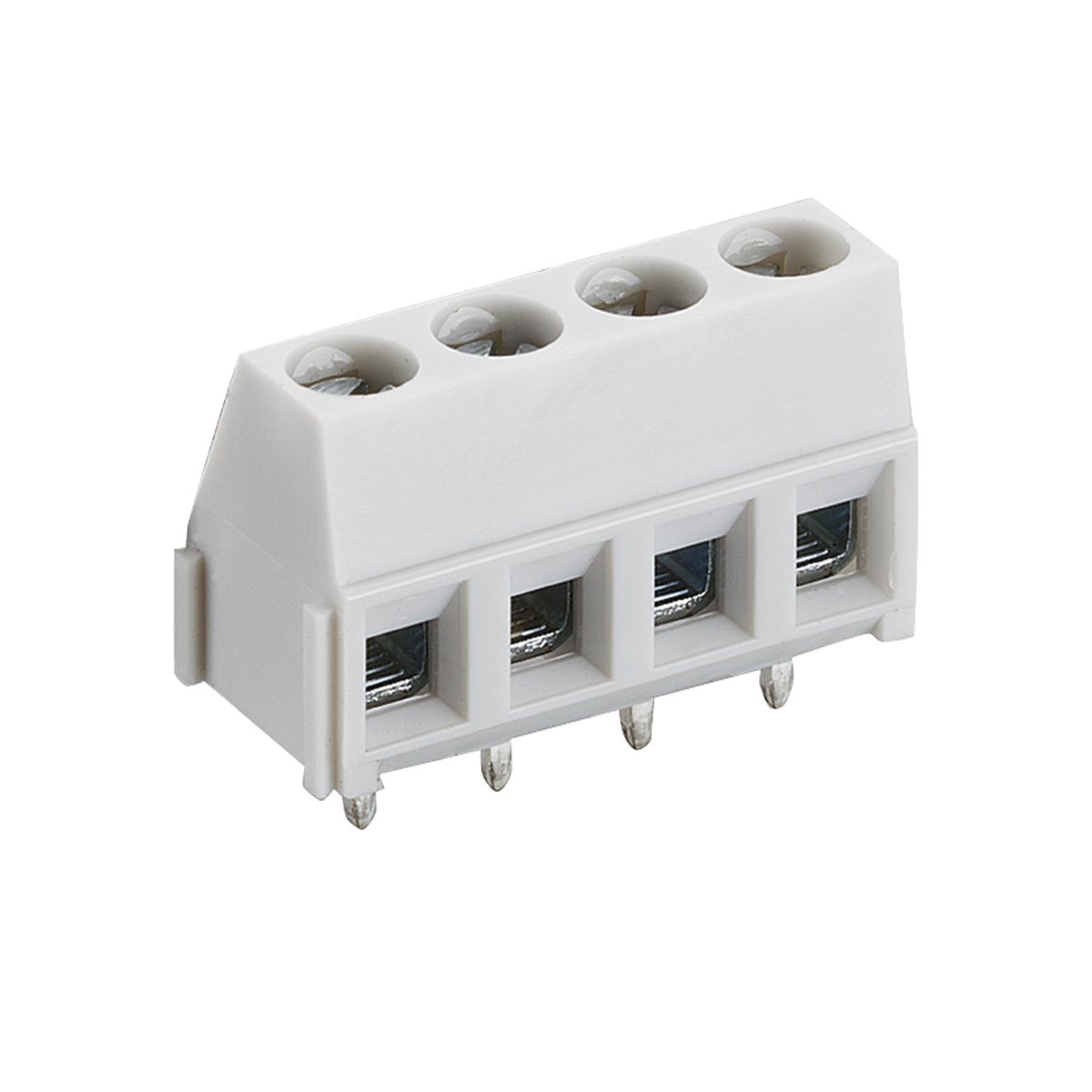

6320

Miniature screw terminal block, with lift clamp without protection against misplacing, upright version, with test hole, consecutive placement without loss of pitchcontact pitch 5.0 mm

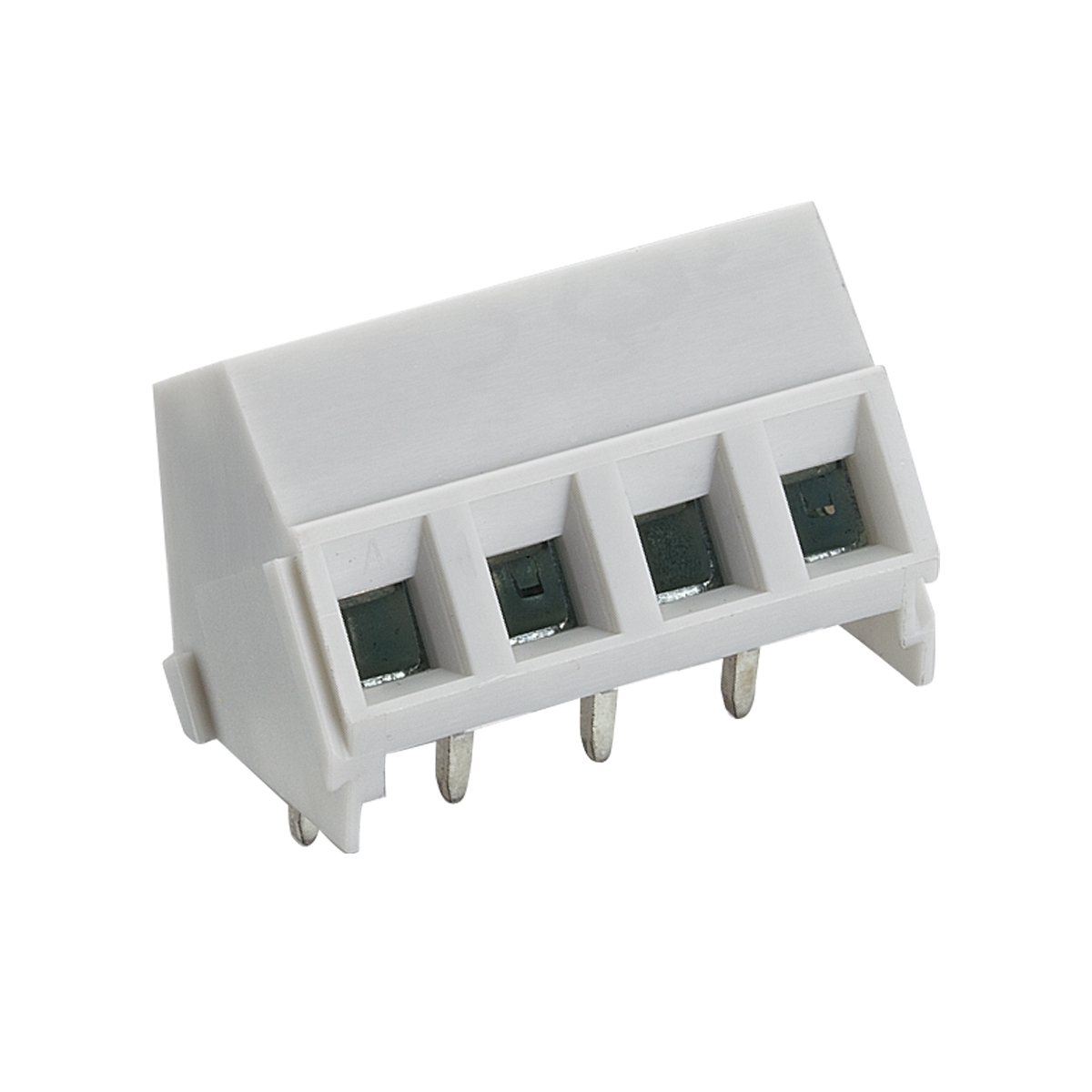

6322

Miniature screw terminal block, with lift clamp without protection against misplacing, 35° angle version, with test hole, consecutive placement without loss of pitchcontact pitch 5.0 mm

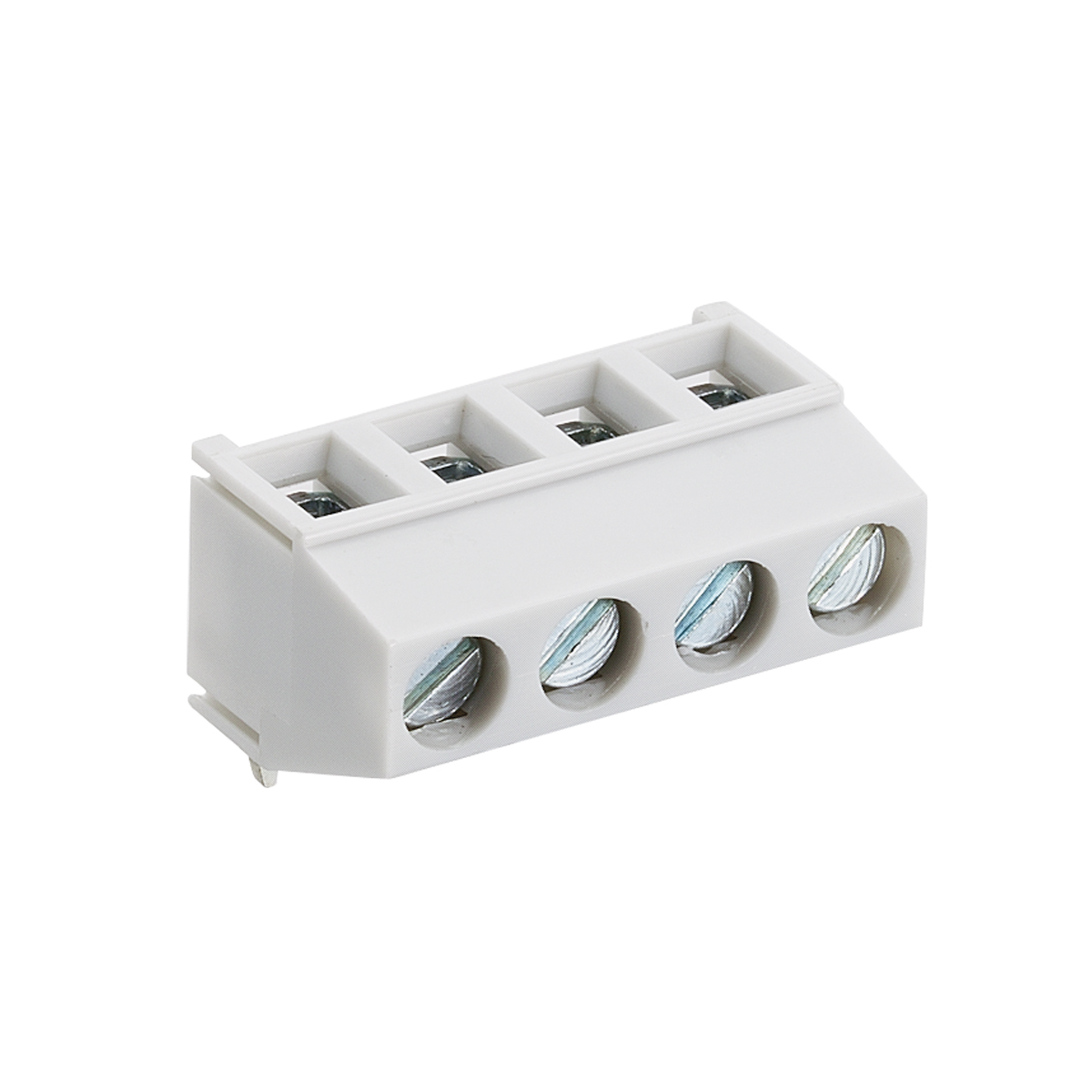

6324

Miniature screw terminal block, with lift clamp without protection against misplacing, right angle version, with test hole, consecutive placement without loss of pitchcontact pitch 5.0 mm

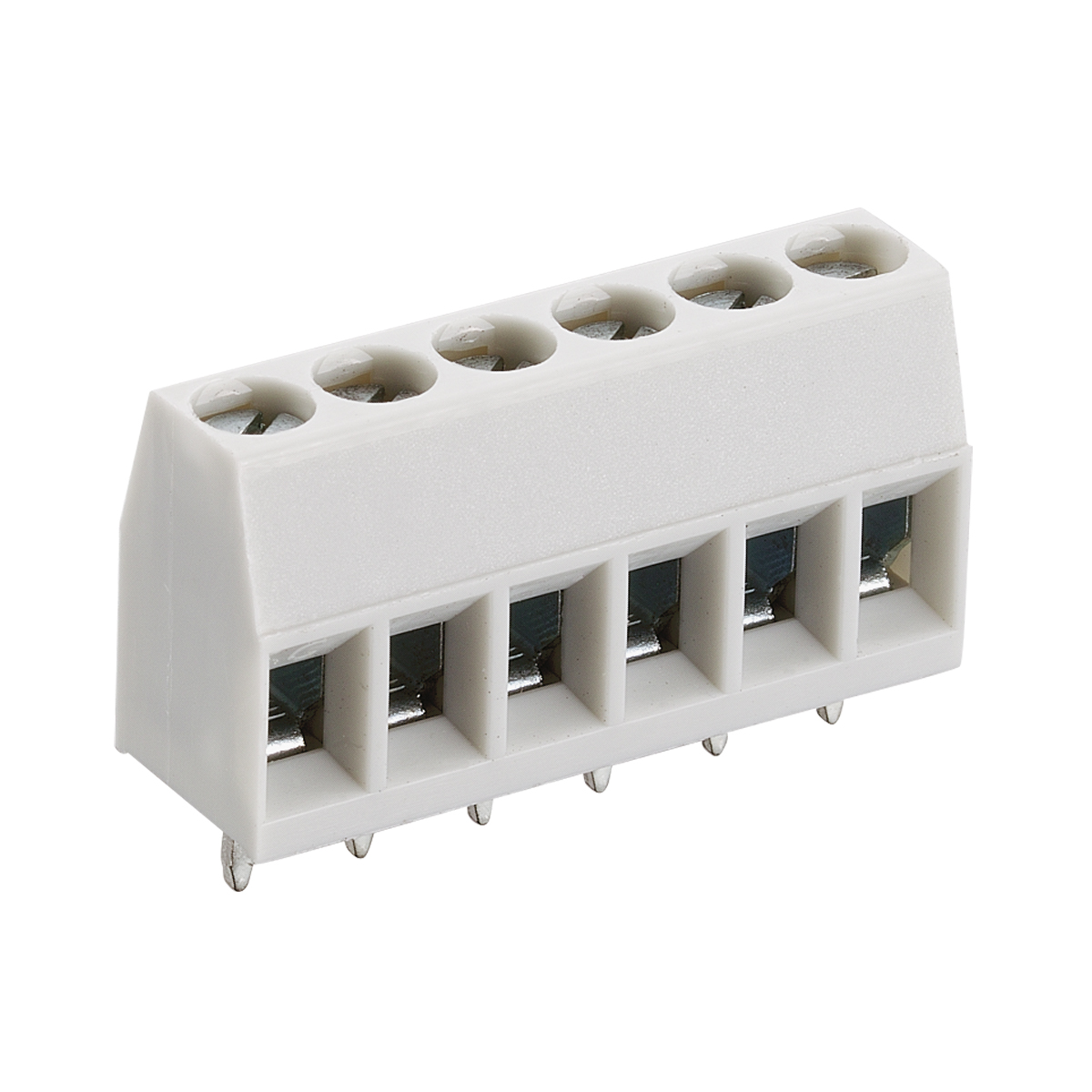

KRE

Screw terminal block, with lift clamp with protection against misplacing, upright version, consecutive placement without loss of pitchcontact pitch 5.0 mm

KREG

Screw terminal block, with lift clamp with protection against misplacing, with stronger screw, upright version, consecutive placement without loss of pitchcontact pitch 5.0 mm

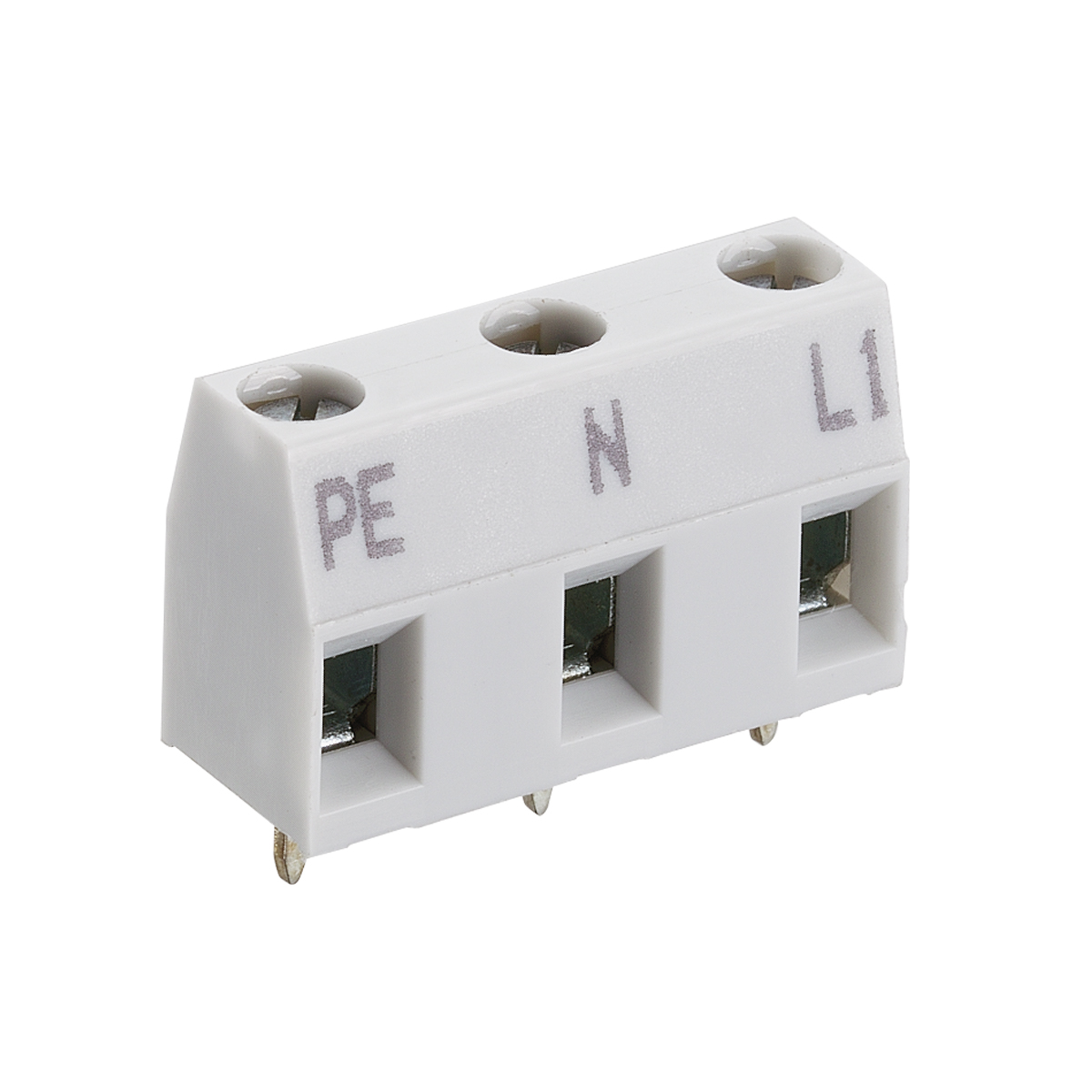

KREN

Screw terminal block for mains supply, with lift clamp with protection against misplacing, upright versioncontact pitch 10.0 mm

KRENG

Screw terminal block for mains supply, with lift clamp with protection against misplacing, with stronger screw, upright versioncontact pitch 10.0 mm

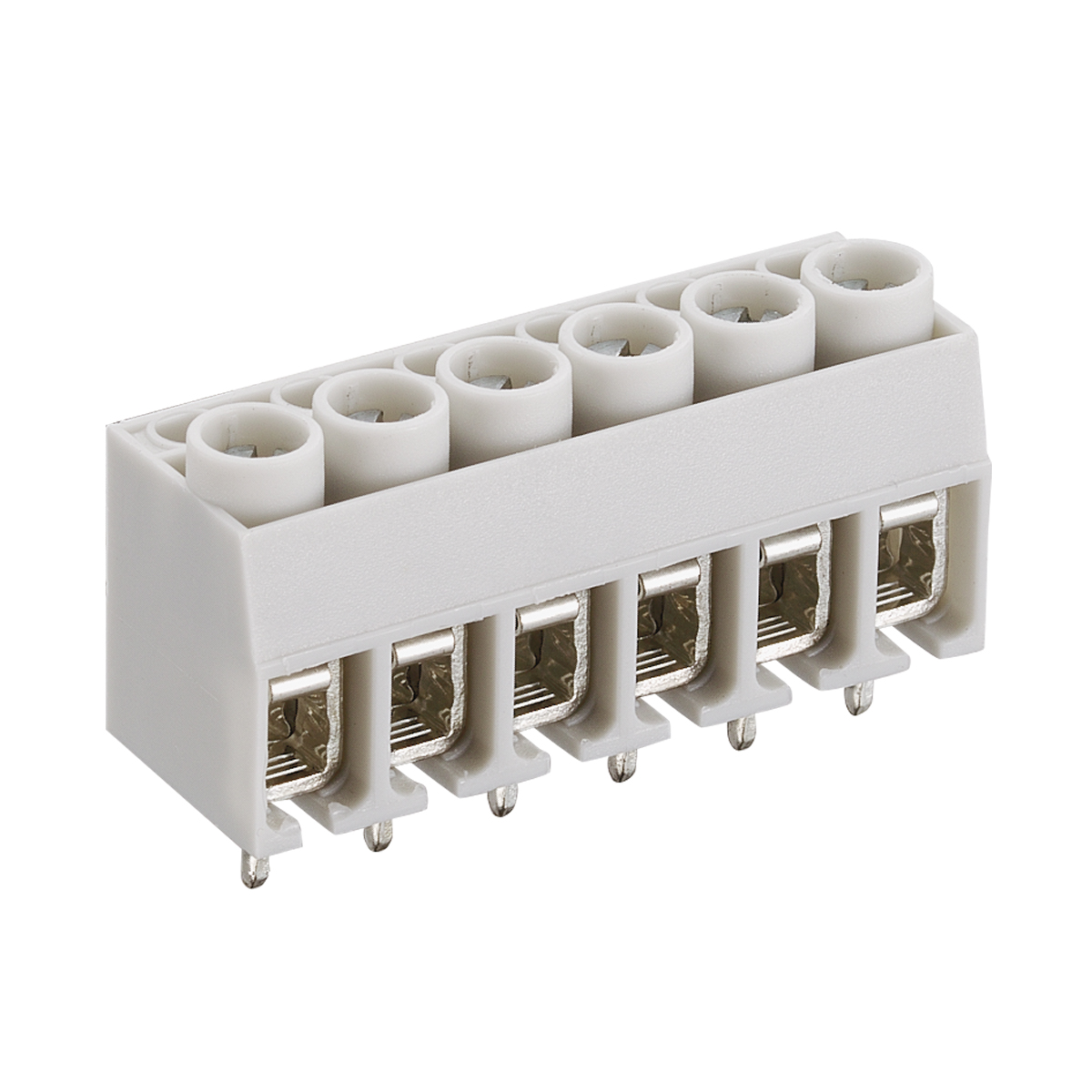

KRES

Screw terminal block, clamp with wire protector, upright version, with test hole, consecutive placement without loss of pitchcontact pitch 5.0 mm

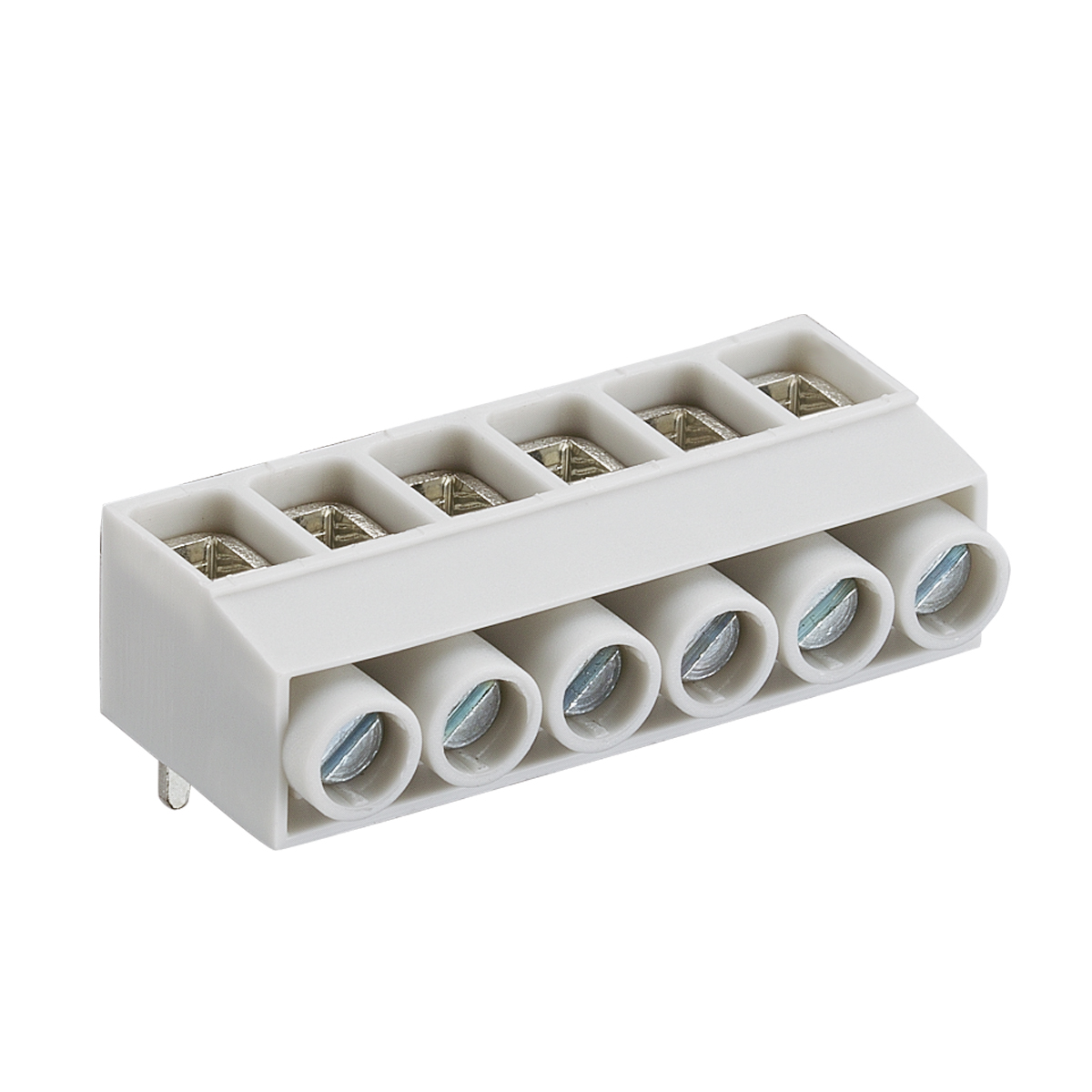

KRESL

Screw terminal block, clamp with wire protector, right angle version, with test hole, consecutive placement without loss of pitchcontact pitch 5.0 mm

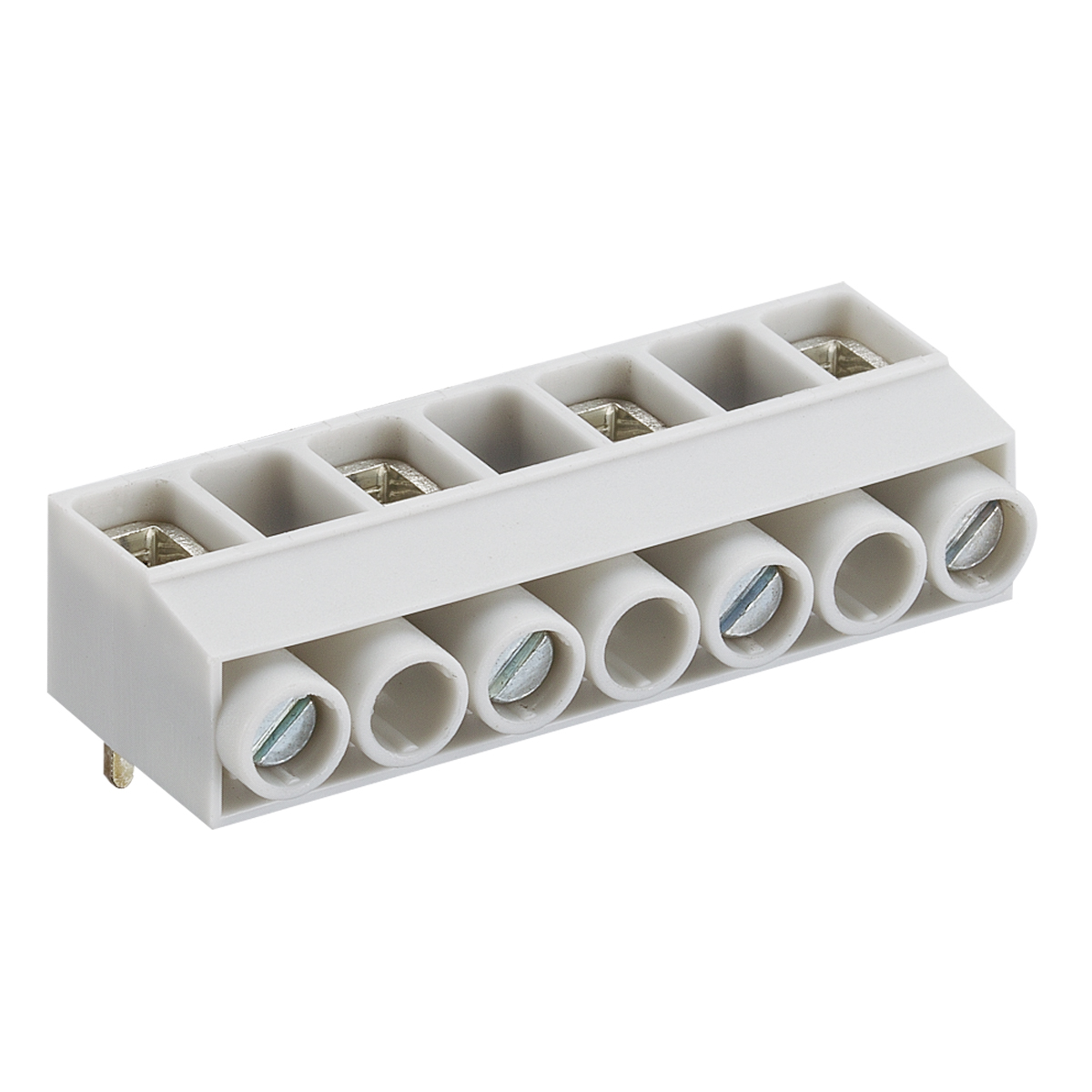

KRESL 03/02 - 05/03

Screw terminal block, clamp with wire protector, right angle versioncontact pitch 10.0 mm

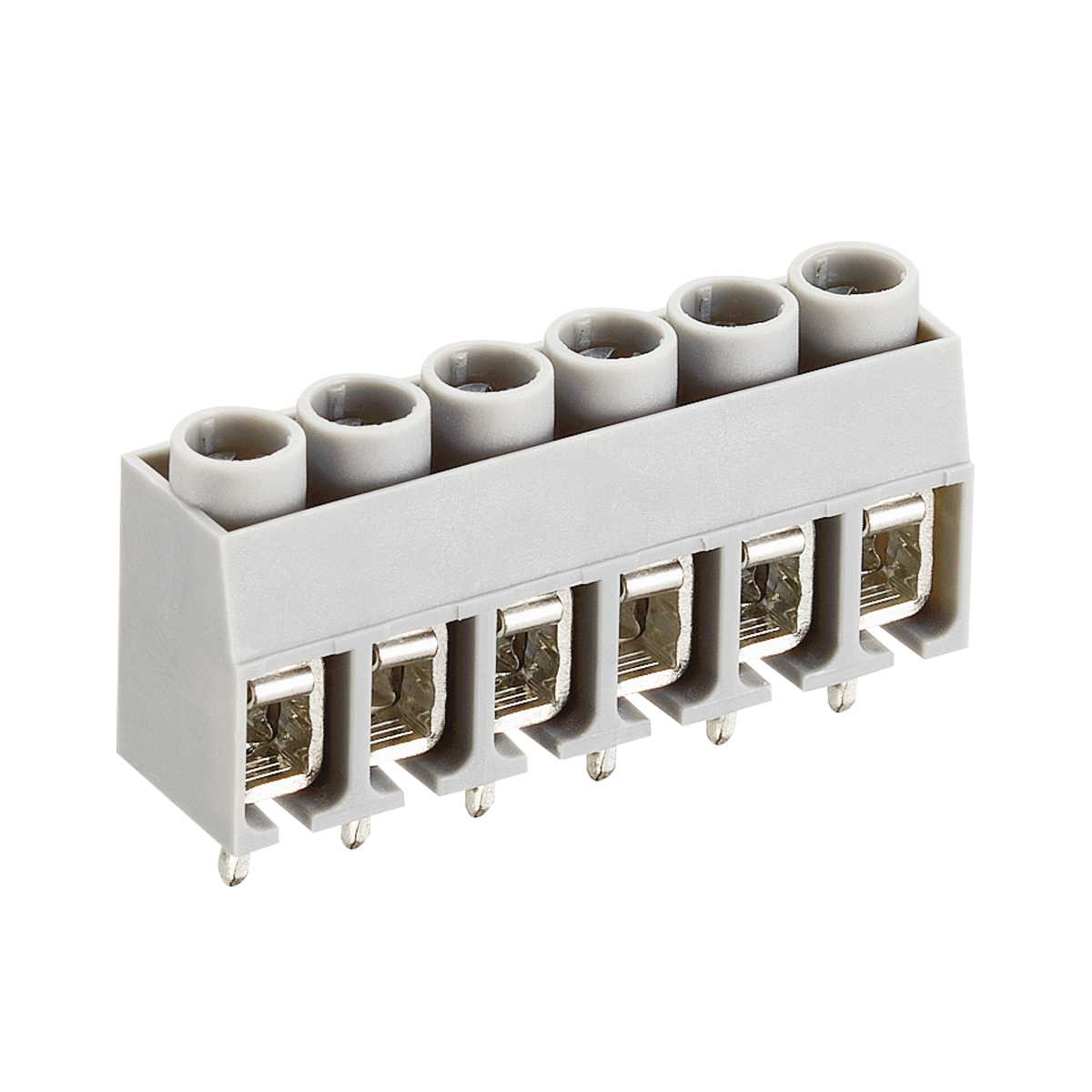

KRESS

Screw terminal block, clamp with wire protector, upright version, consecutive placement without loss of pitchcontact pitch 5.0 mm

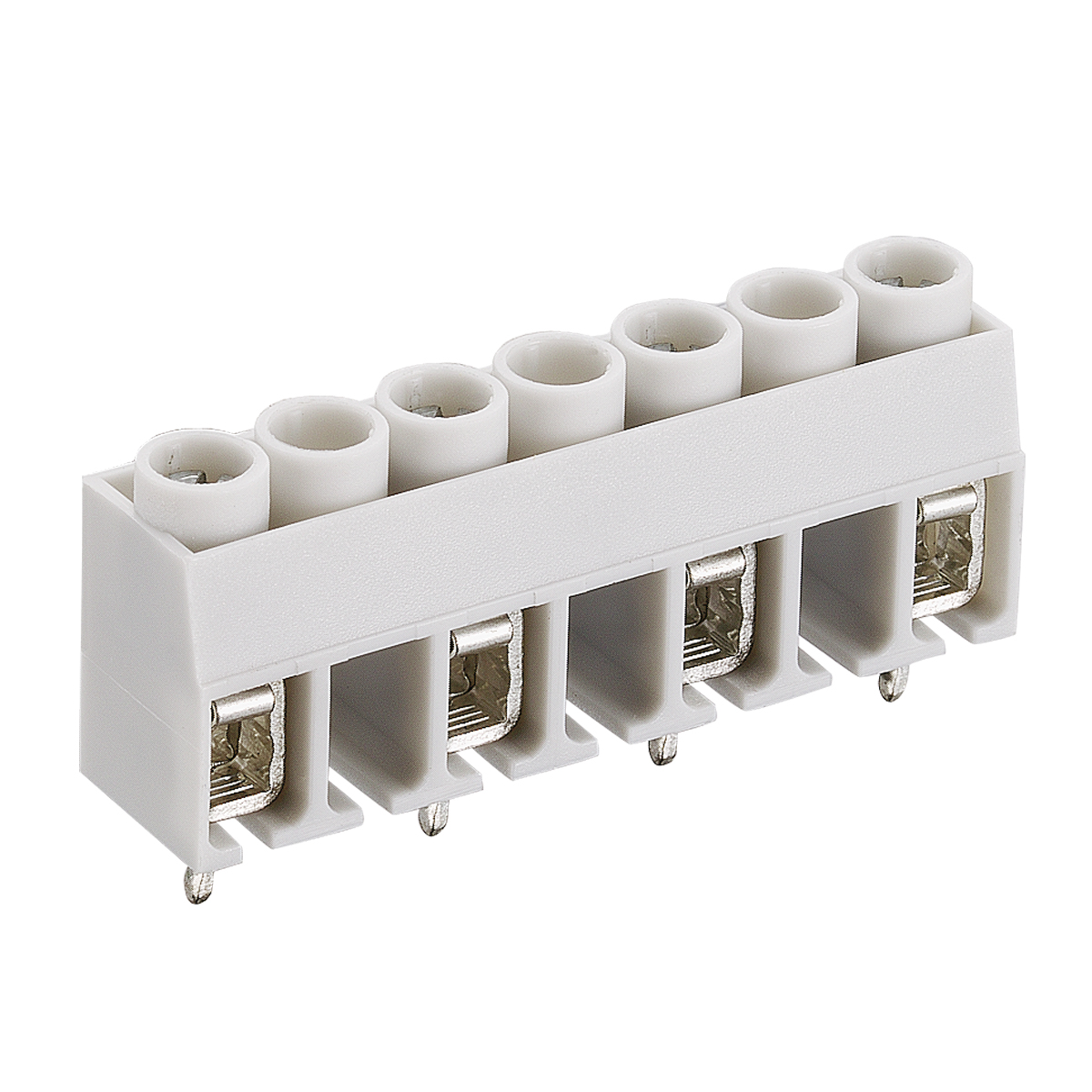

KRESS 03/02 - 07/04

Screw terminal block, clamp with wire protector, upright versioncontact pitch 10.0 mm

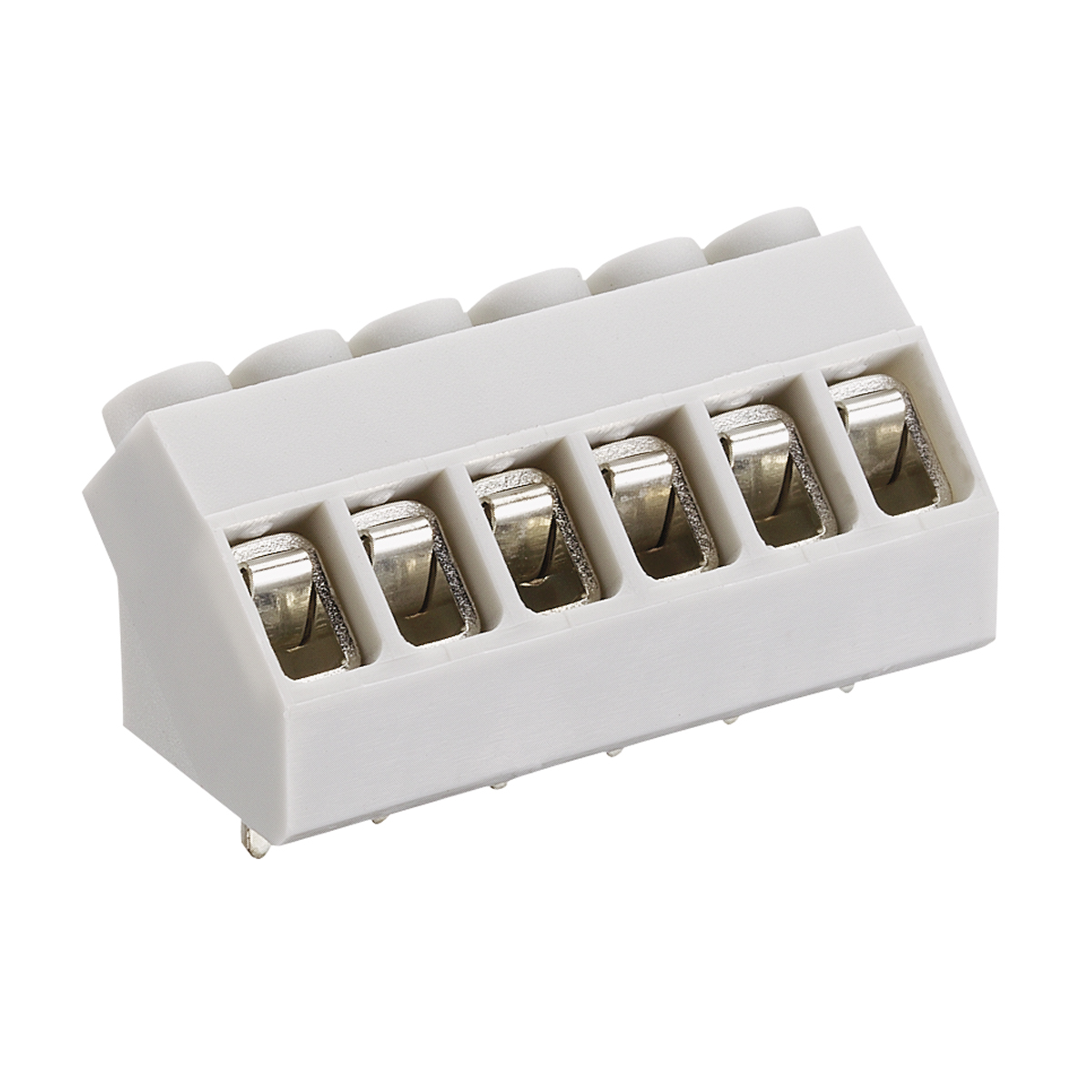

KRESW

Screw terminal block, clamp with wire protector, 45° angle version, with test hole, stringable without loss of pitchcontact pitch 5.0 mm

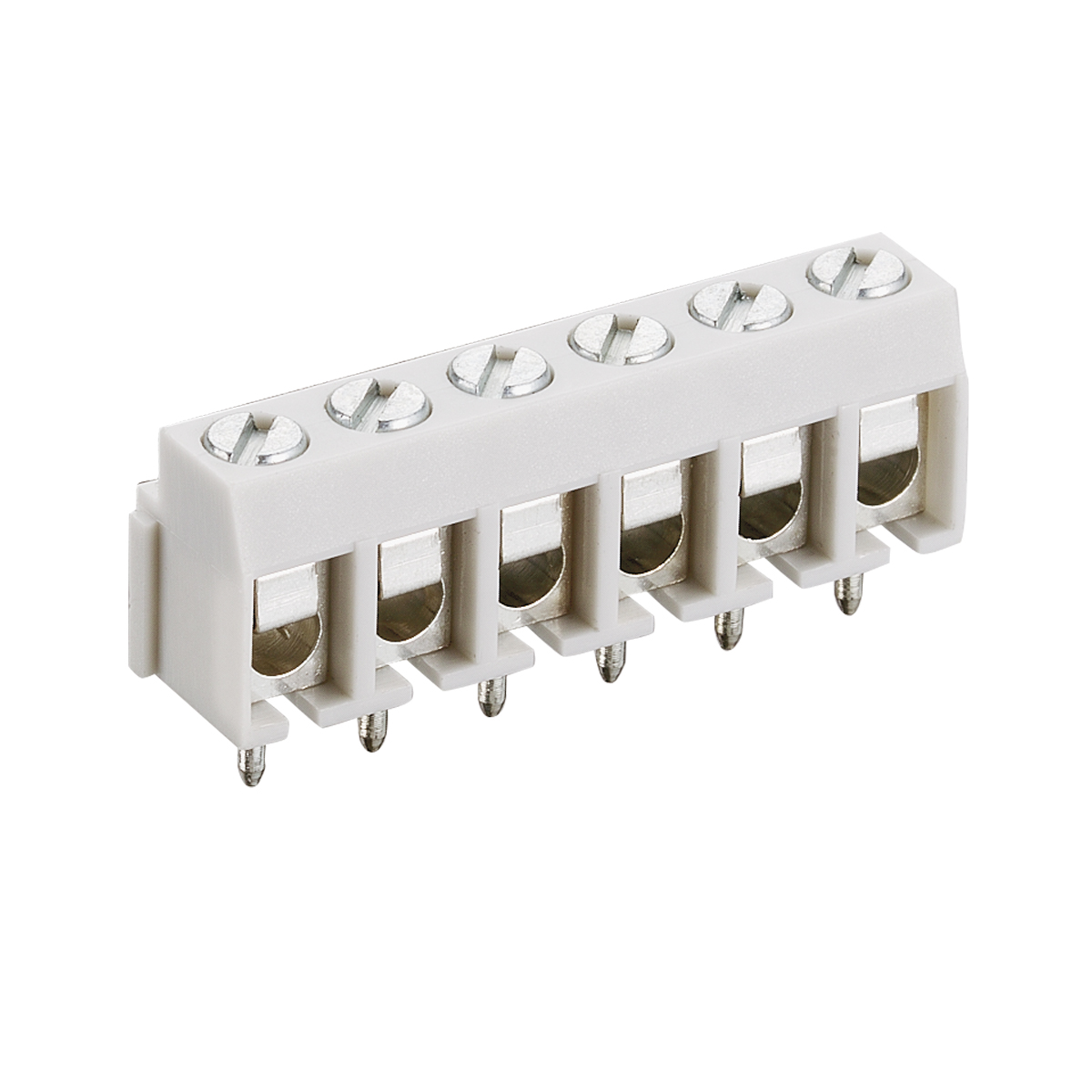

KRM

Screw terminal block, clamp with wire protector, upright version, consecutive placement without loss of pitchcontact pitch 5.0 mm

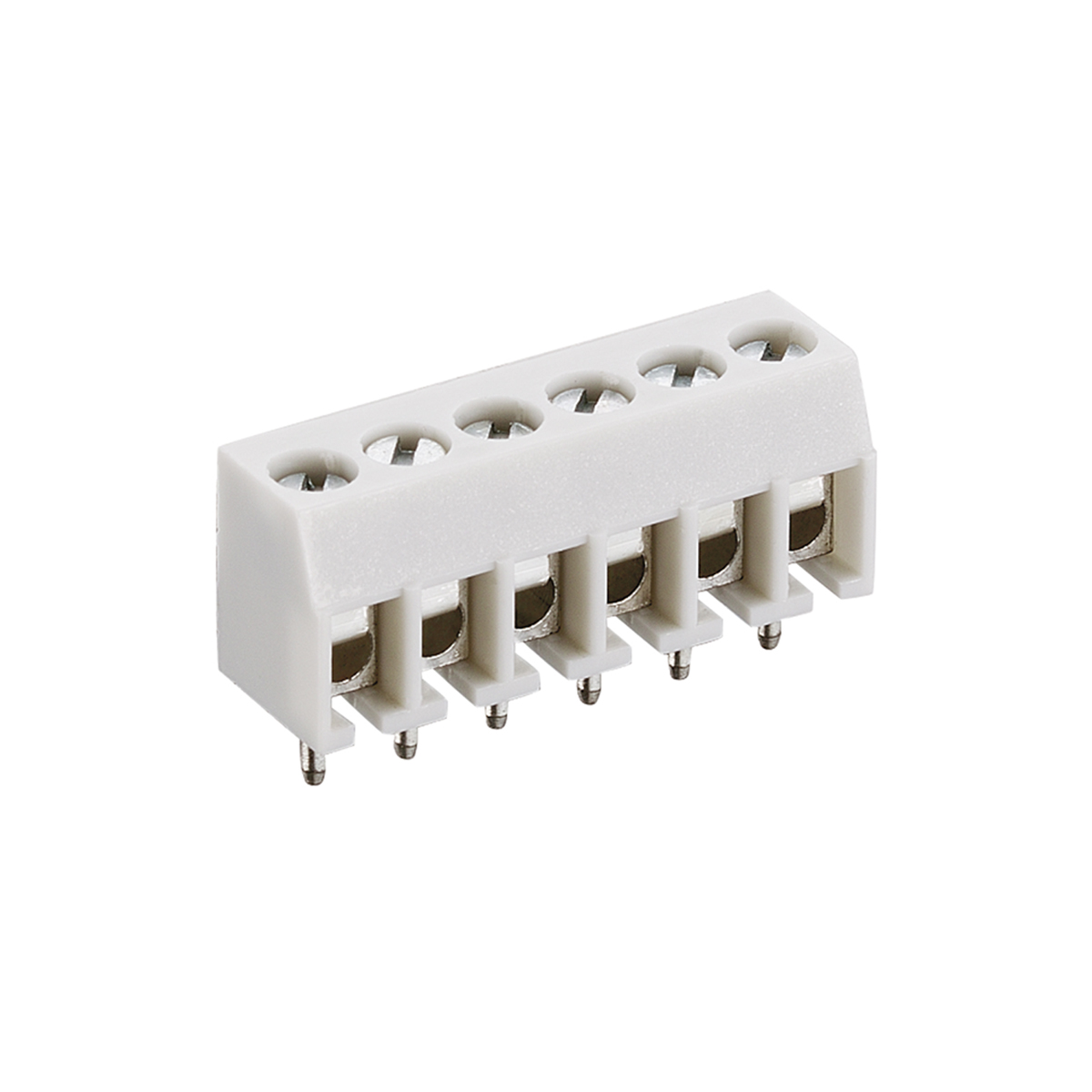

KRMC

Micro screw terminal block, clamp with wire protector, upright version, consecutive placement without loss of pitchcontact pitch 3.5 mm

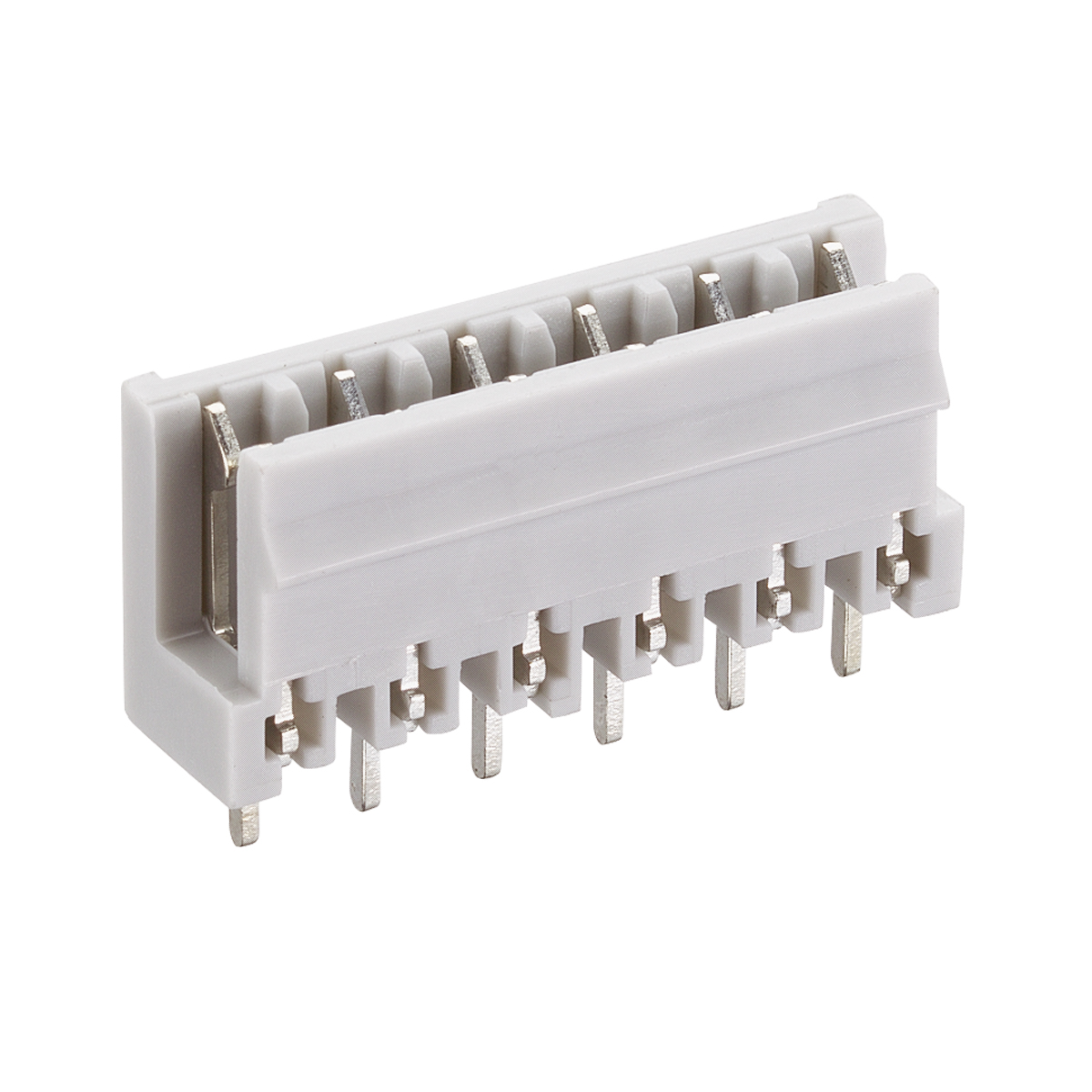

KB

Socket board, upright, solder pins single row, consecutive placement without loss of pitch

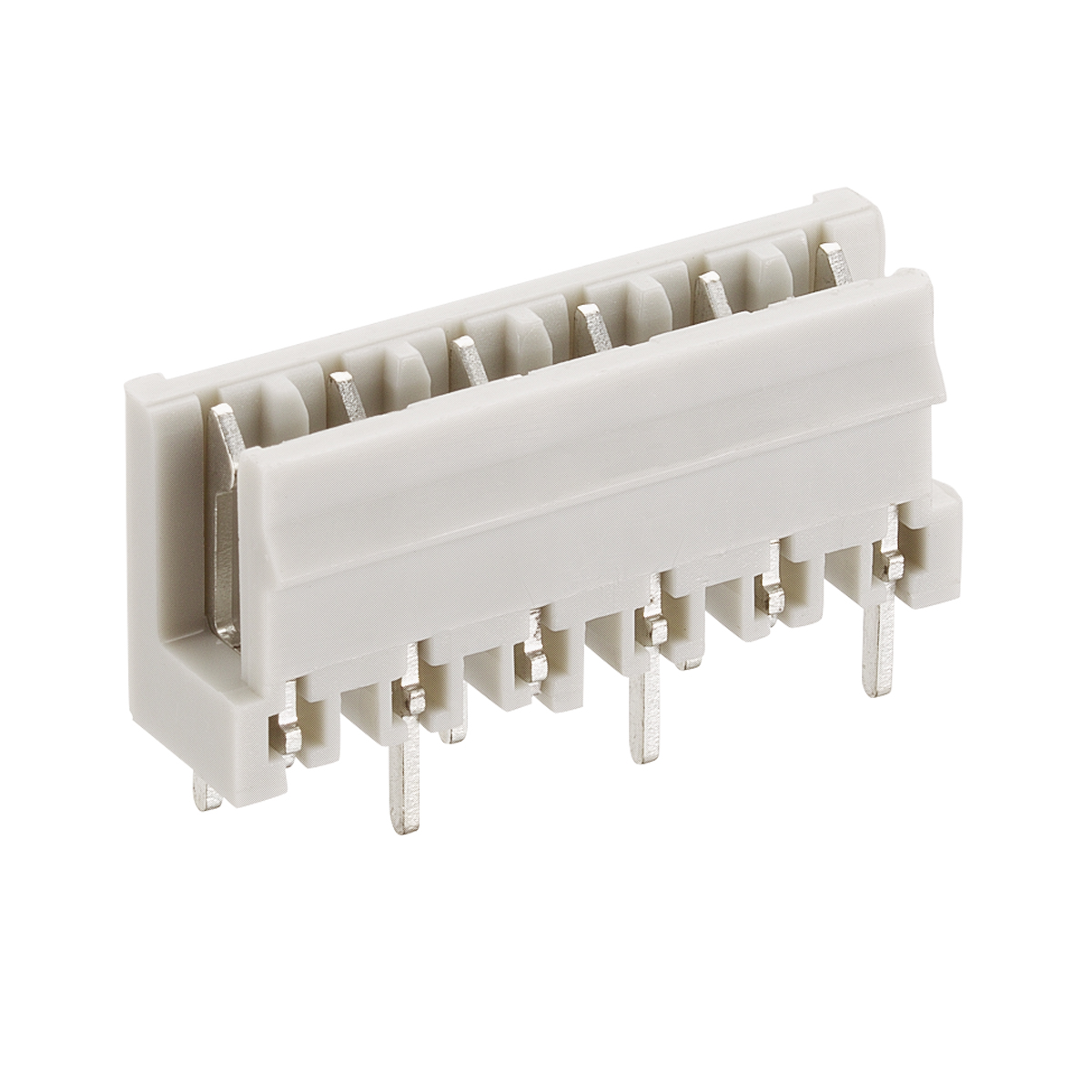

KBQ

Socket board, upright, solder pins dual row staggered, consecutive placement without loss of pitch

KBW

Socket board, angular, solder pins single row, with retaining hooks for printed circuit board edge, consecutive placement without loss of pitch

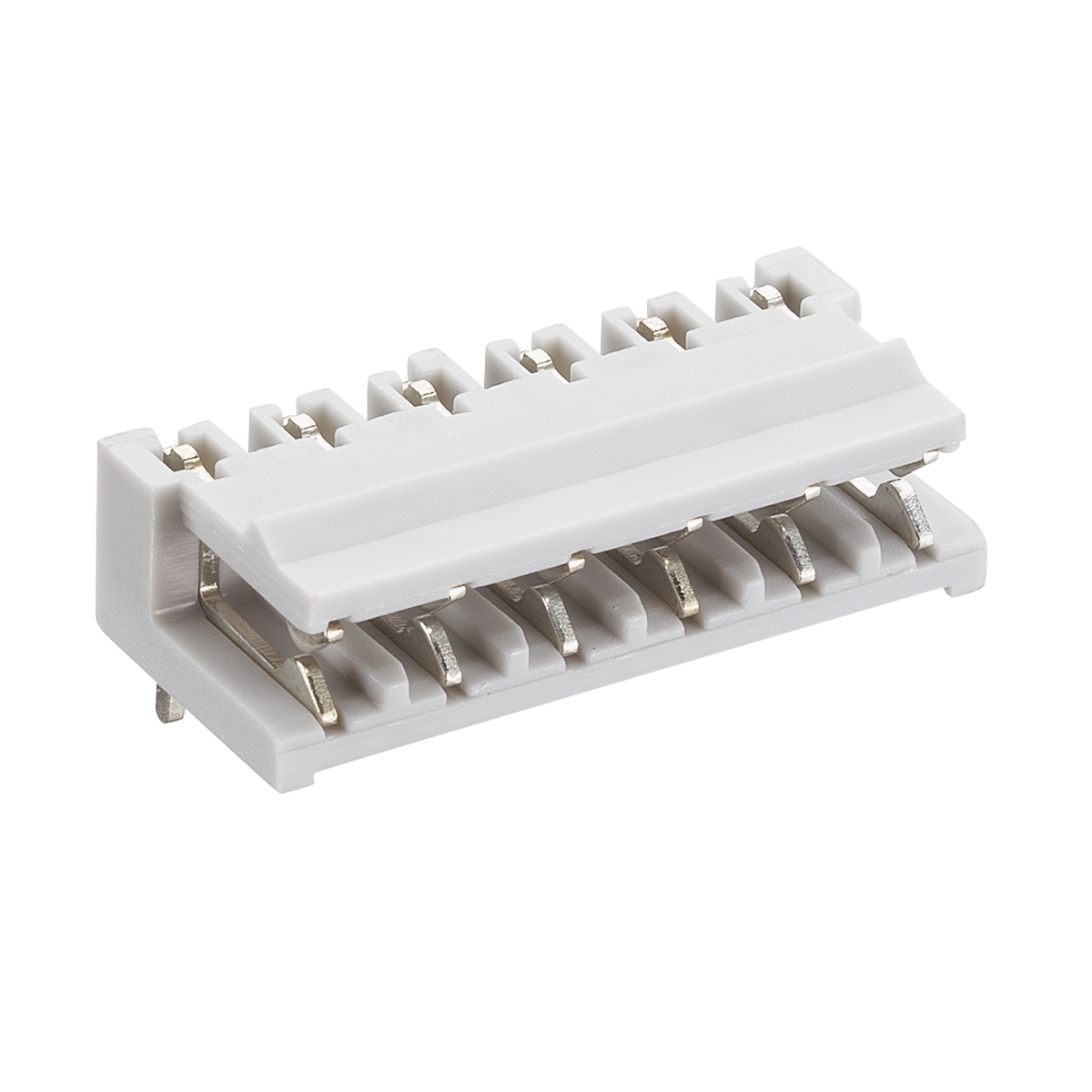

KBWO

Socket board, angular, solder pins single row, consecutive placement without loss of pitch

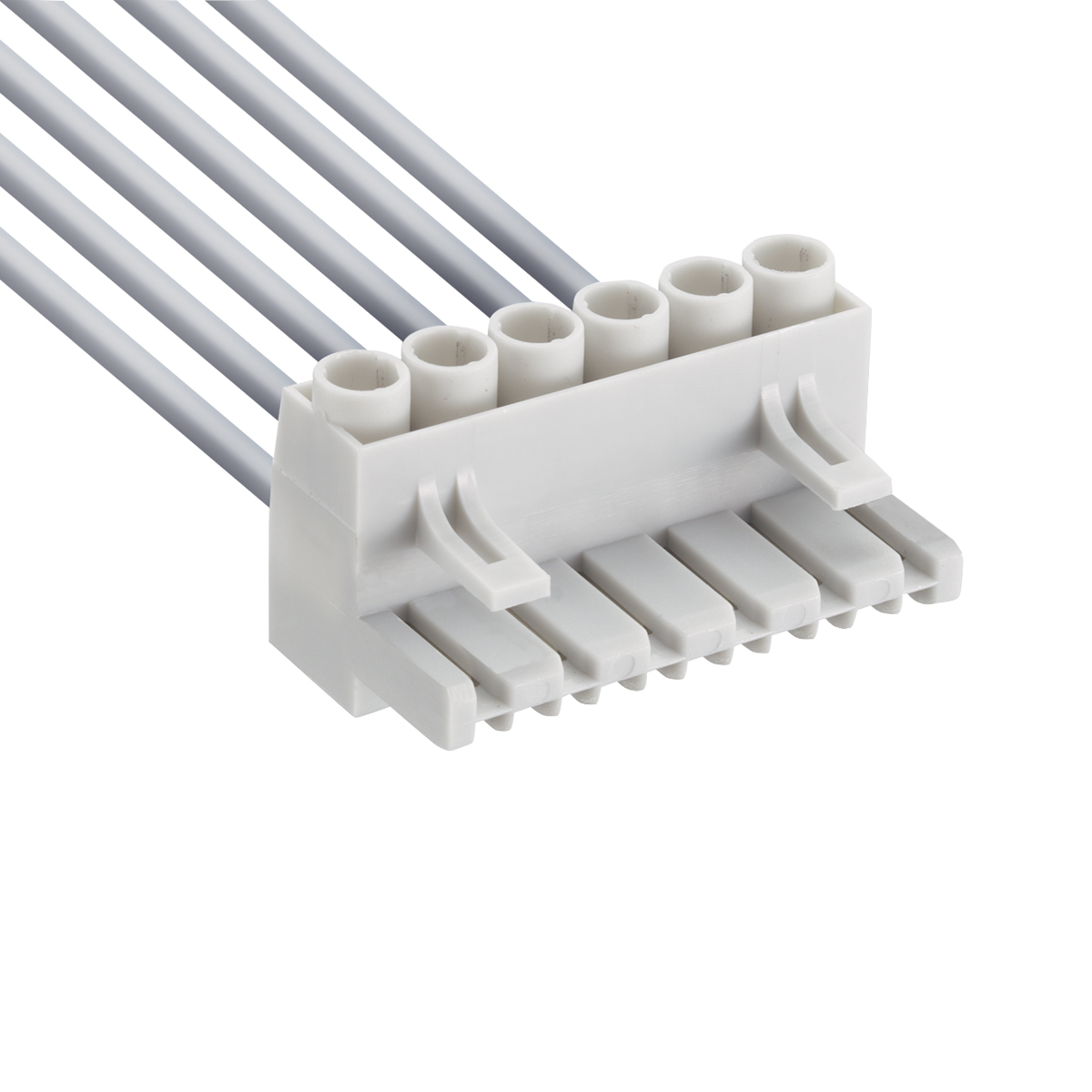

KS

Pluggable screw terminal block, clamp with wire protection, consecutive placement without loss of pitch, without side walls

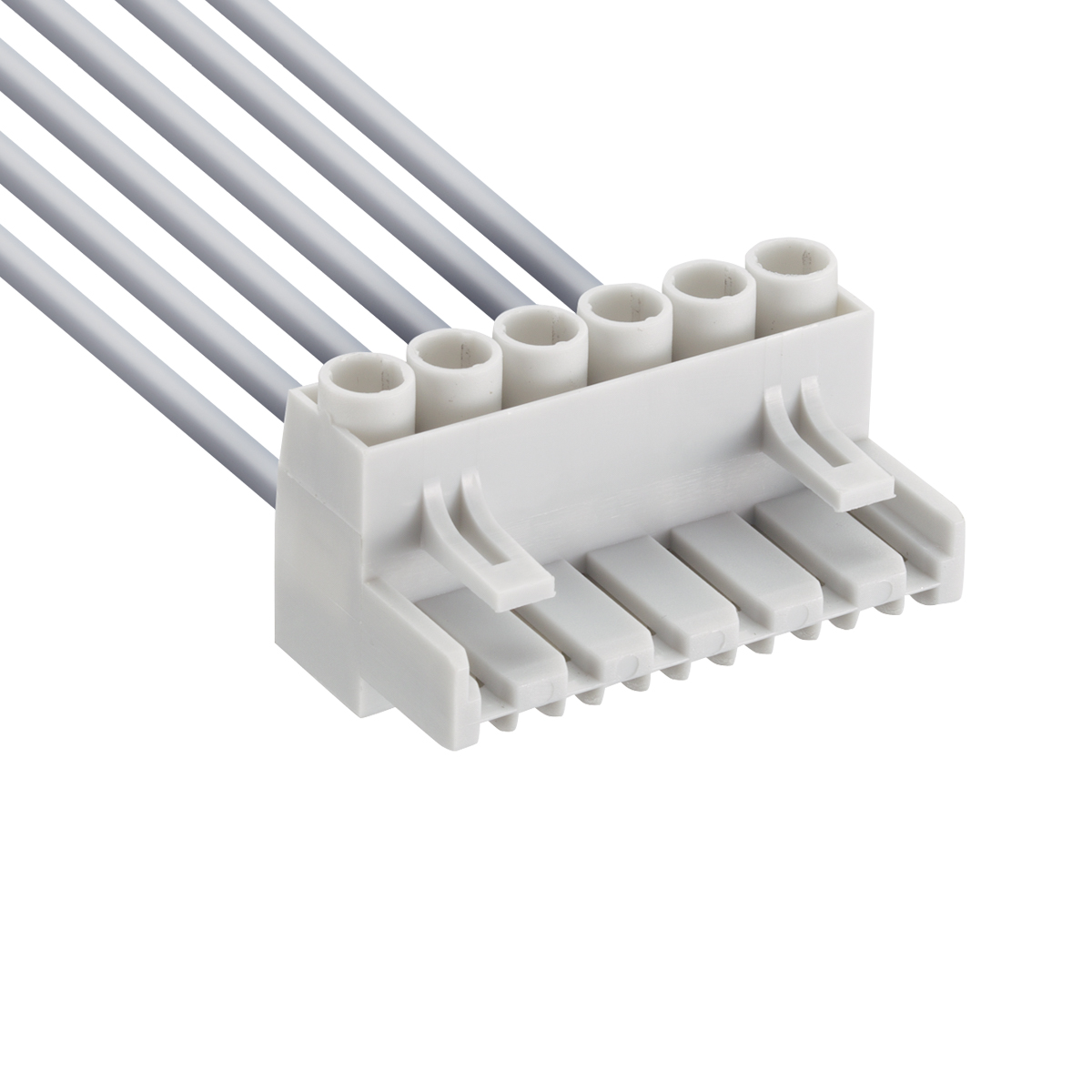

KSC

Pluggable screw terminal block, clamp with wire protection, consecutive placement without loss of pitch, with side walls

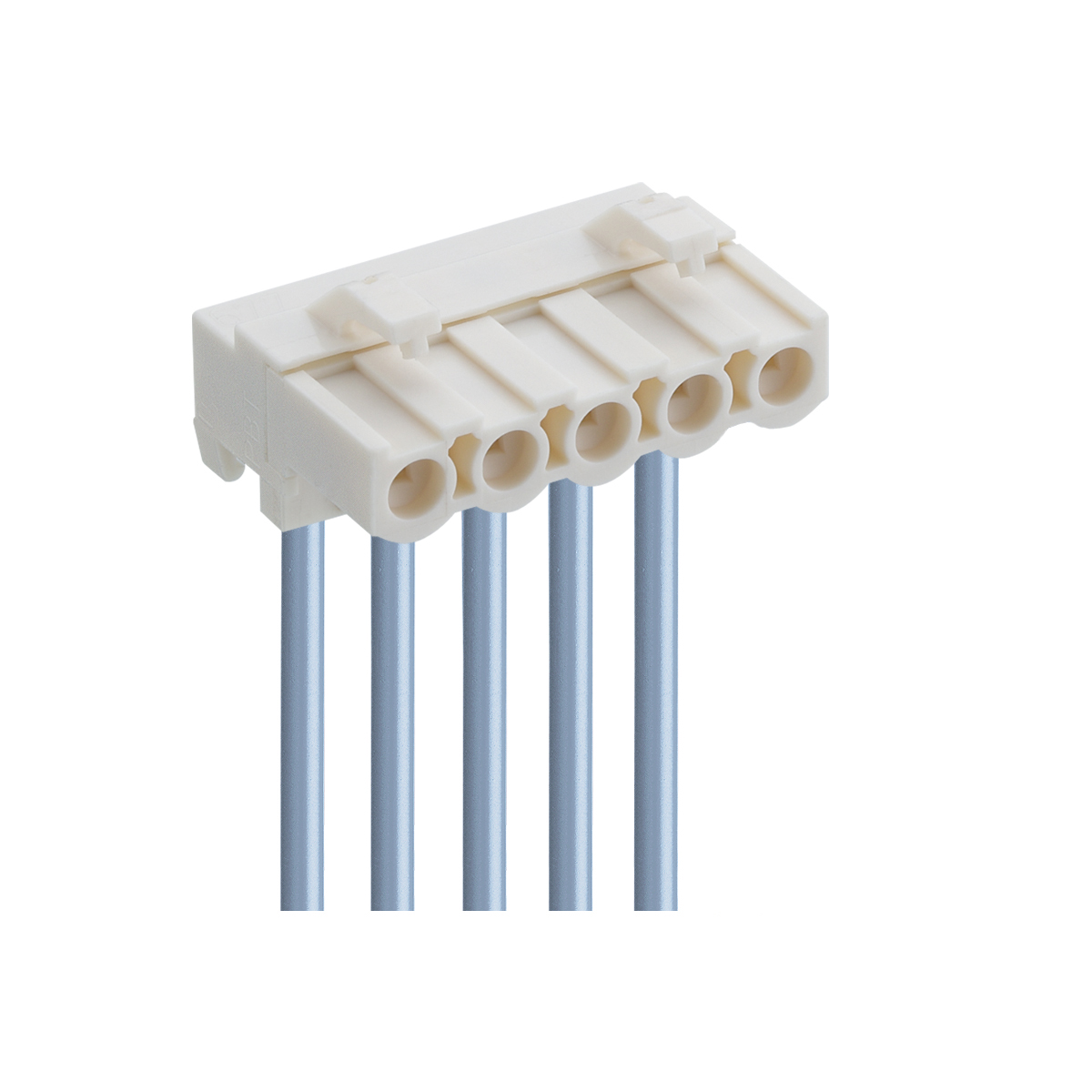

6770

Pluggable terminal block, insulation displacement technique (IDT), with locking and test hole, cable departure 90° or 180° to plugging direction, consecutive placement without loss of pitch
