Series 30 | Micromodul™ connectors, pitch 1.27 mm

For cable-to-board connections with flat cables, where space is at a premium. Plugs and solder-in connectors in insulation displacement technology, tab headers for THT and SMT soldering. For signal and low load currents up to 1.2 A, pitch 1.27 mm (.050").

Series 73 | SmartSKEDD™ direct connectors, pitch 2.5/5.0 mm

Direct mating with SKEDD technology, for cable-to-board connections in insulation displacement technology, solderless and reversible. Keying avoids mismating. For signal and low load currents up to 4 A, pitch 2.5 mm and 5.0 mm (.098" and .197").

733500

SmartSKEDD direct connector, insulation displacement technology (IDT), with keying pins, positioning spigot and double locking on the printed circuit boardcontact pitch 2.5 mm

733510

SmartSKEDD direct connector, insulation displacement technology (IDT), with keying pins, positioning spigot and double locking on the printed circuit boardcontact pitch 5.0 mm

733520

SmartSKEDD direct connector, insulation displacement technology (IDT), with keying pins, positioning spigot and locking on the printed circuit boardcontact pitch 2.5 mm

733530

SmartSKEDD direct connector, insulation displacement technology (IDT), with keying pins, positioning spigot and locking on the printed circuit boardcontact pitch 5.0 mm

Series 72 | Press-fit interconnect solutions

For cable-to-board and board-to-board connections in automotive and beyond. Solderless press-fit connections as per IEC/EN/DIN 60352-5.

7200

Press-fit contact 0.6 for customer-specific interconnect solutions, according to internal test specifications as per automotive requirements on the basis of IEC 60352-5

7201

Press-fit contact 0.8 for customer-specific interconnect solutions, according to internal test specifications as per automotive requirements on the basis of IEC 60352-5

Series 45 | High-current contact elements

High-current contacts for automotive applications and beyond. Standard components and customized solutions.

4580 03 MP T0,8

High-current contact bush with positioning pegs, mateable from top or bottom direction, for tab contacts 0.8–1.5 mm, for printed circuit boards or lead frames

4580 03 MP T2,0

High-current contact bush with positioning pegs, mateable from top or bottom direction, for tab contacts 1.5–2.0 mm, for printed circuit boards or lead frames

4580 03 OP T0,8

High-current contact bush, mateable from top or bottom direction, for tab contacts 0.8–1.5 mm, for printed circuit boards or lead frames

4580 03 OP T2,0

High-current contact bush, mateable from top or bottom direction, for tab contacts 1.5–2.0 mm, for printed circuit boards or lead frames

4580 04 MP T1,0

High-current contact bush with positioning pegs, for tab contacts 1.0 mm, for printed circuit boards or lead frames

4580 04 OP T1,0

High-current contact bush, for tab contacts 1.0 mm, for printed circuit boards or lead frames

Series 31 | Minimodul™ connectors, pitch 2.5 mm

For cable-to-board connections. Easy harnessing of single leads and flat cables with crimp technology. Especially suitable for low and middle-volume production. For signal and low load currents up to 5 A. Pitch 2.5 mm (.098").

2,5 MS

Minimodul™ pin header

2,5 MSF

Minimodul™ pin header, upright, with locking latch, solder contacts single row

2,5 MSF/O

Minimodul™ pin header, upright, solder contacts single row

2,5 MSFQ

Minimodul™ pin header, upright, with locking latch, solder contacts dual row staggered

2,5 MSFQ/O

Minimodul™ pin header, upright, solder contacts dual row staggered

2,5 MSFW

Minimodul™ pin header, angular, with locking latch, solder contacts single row

2,5 MSFW/O

Minimodul™ pin header, angular, solder contacts single row

3111 01 G

Minimodul™ crimp contact, on reel

3111 01 L

Minimodul™ crimp contact, in bulk

3111 03 G

Minimodul™ crimp contact, on reel

3111 03 L

Minimodul™ crimp contact, in bulk

3114

Empty Minimodul™ housing for reception of crimp contacts, for indirect mating

Series 38 | Multimodul™ connectors, pitch 2.5 mm

For cable-to-board and board-to-board connections. Easy harnessing of single leads and flat cables with insulation displacement and crimp technology. Especially suitable for middle and high-volume production. For signal and low load currents up to 3 A, pitch 2.5 mm (.098").

3111 01 G

Multimodul™ crimp contact, on reel

3111 01 L

Multimodul™ crimp contact, in bulk

3111 03 G

Multimodul™ crimp contact, on reel

3111 03 L

Multimodul™ crimp contact, in bulk

3800

Multimodul™ socket board, angular, with retaining hooks

3801

Multimodul™ socket board, angular, with retaining hooks, with locking nose

3823

Empty Multimodul™ housing for reception of crimp contacts, for indirect mating

3850

Multimodul™ pin header, upright, with locking latch, with retaining hooks

3851

Multimodul™ pin header, upright, with retaining hooks

3852

Multimodul™ pin header, upright, with locking latch

3853

Multimodul™ pin header, angular, with locking latch, with retaining hooks

3855

Multimodul™ pin header, upright, with locking latch, with retaining hooks and cut-outs for 3801

8385 A 01

Double Multimodul™ chassis pin header as feed-through connector, with locking latches and gasket

Series 41 | Shorting links, pitch 2.5/2.54 mm

For direkt connection of two contact pins, i.e. as a jumper for alternative circuitry. Shorting links are suitable for pin headers with pitch 2.5 mm and 2.54 mm (.098" and .100"). For signal and load currents up to 5 A.

4143 01

Shorting link, with test pick-up and handle latch

Series 51 | Direct connectors for insert cards, pitch 2.5/2.54/5.0/5.08 mm

Sockets boards for insert cards, with solder pins for board-to-board or solder eyes for cable-to-board connections. With accessory keying inserts, mounting and guide flanges. For signal and load currents up to 5 A, pitch 2.5 mm, 2.54 mm, 5.0 mm and 5.08 mm (.098", .100", .197", .200").

Lumberg: 2,5 R (Series 51 | Direct connectors for insert cards, pitch 2.5/2.54/5.0/5.08 mm)

2,5 R

Socket board for direct mating, with solder pins

2,5 RF

Socket board for direct mating, with mounted pair of flanges F, with solder pins

2,5 RFL

Socket board for direct mating, with mounted pair of flanges FL, with solder pins

Lumberg: 2,5 U (Series 51 | Direct connectors for insert cards, pitch 2.5/2.54/5.0/5.08 mm)

2,5 U

Socket board for direct mating, with solder eyes

2,5 UF

Socket board for direct mating, with mounted pair of flanges F, with solder eyes

2,5 UFL

Socket board for direct mating, with mounted pair of flanges FL, with solder eyes

Lumberg: 5 R (Series 51 | Direct connectors for insert cards, pitch 2.5/2.54/5.0/5.08 mm)

5 R

Socket board for direct mating, with solder pins

Lumberg: 5 RF (Series 51 | Direct connectors for insert cards, pitch 2.5/2.54/5.0/5.08 mm)

5 RF

Socket board for direct mating, with mounted pair of flanges F, with solder pins

5 RFL

Socket board for direct mating, with mounted pair of flanges FL, with solder pins

Lumberg: 5 U (Series 51 | Direct connectors for insert cards, pitch 2.5/2.54/5.0/5.08 mm)

5 U

Socket board for direct mating, with solder eyes

Lumberg: 5 UF (Series 51 | Direct connectors for insert cards, pitch 2.5/2.54/5.0/5.08 mm)

5 UF

Socket board for direct mating, with mounted pair of flanges F, with solder eyes

5 UFL

Socket board for direct mating, with mounted pair of flanges FL, with solder eyes

5116

Socket board for direct mating, with solder pinscontact pitch 2.54 mm

8514 A 01

Socket board for direct mating, with or without keying rib, with solder pinscontact pitch 5.08 mm

8514 A 02

Socket board for direct mating, with or without keying rib, with solder pinscontact pitch 5.08 mm

8514 A 03

Socket board for direct mating, with or without keying rib, with solder pinscontact pitch 5.08 mm

Lumberg: F (Series 51 | Direct connectors for insert cards, pitch 2.5/2.54/5.0/5.08 mm)

F

Flange, pair, for mounting in mating direction, attachable with loss of one contact spring each

Lumberg: FD (Series 51 | Direct connectors for insert cards, pitch 2.5/2.54/5.0/5.08 mm)

FD

Flange, pair, for mounting in mating direction, attachable without loss of contact positions

Lumberg: FF (Series 51 | Direct connectors for insert cards, pitch 2.5/2.54/5.0/5.08 mm)

FF

Guide flange, pair, placeable onto socket boards equipped with flange F, with locking hooks

Lumberg: SP 3 (Series 51 | Direct connectors for insert cards, pitch 2.5/2.54/5.0/5.08 mm)

SP 3

Keying insert for socket boards 2,5..., 3,96..., 5,08, insertable instead of a contact spring

Series 52 | Direct connectors with screw clamps, for insert cards, pitch 5.0 mm

Sockets boards for insert cards, with screw clamps for cable-to-board connections. With accessory keying inserts, mounting and guide flanges. For signal and load currents up to 5 A, pitch 5.0 mm (.197").

Lumberg: 5 RS (Series 52 | Direct connectors with screw clamps, for insert cards, pitch 5.0 mm)

5 RS

Socket board for direct mating with screw terminals, lift clamp without protection against misplacing, with test hole, consecutive placement without loss of pitch

5 RS FK

Socket board for direct mating with screw terminals, lift clamp without protection against misplacing, with test hole and mounted pair of flanges FK

Lumberg: SP 4 (Series 52 | Direct connectors with screw clamps, for insert cards, pitch 5.0 mm)

SP 4

Keying insert for socket boards with screw terminals 5 RS and 5 RS FK

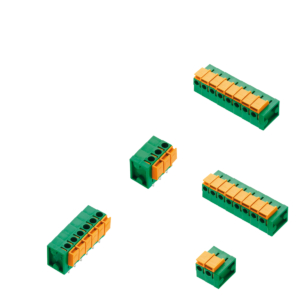

Series 60 | Spring terminal blocks, pitch 5.08 mm

Service-friendly: quick and easy connecting and detaching of conductors. For signal and load currents up to 10 A, pitch 5.08 mm (.200").

Series 61 | Screw terminal blocks, pitch 3.5/5.0/10.0 mm

For all cable-to-board connections relevant to maintainance. Lead sections up to 4.0 mm². For signal and load currents up to 15 A, pitch 3.5 mm, 5.0 mm and 10.0 mm (.138", .197" and .394").

KRENG

Screw terminal block for mains supply, with lift clamp with protection against misplacing, with stronger screw, upright versioncontact pitch 10.0 mm

KRES

Screw terminal block, clamp with wire protector, upright version, with test hole, consecutive placement without loss of pitchcontact pitch 5.0 mm

KRESL

Screw terminal block, clamp with wire protector, right angle version, with test hole, consecutive placement without loss of pitchcontact pitch 5.0 mm

KRESL 03/02 - 05/03

Screw terminal block, clamp with wire protector, right angle versioncontact pitch 10.0 mm

KRESS

Screw terminal block, clamp with wire protector, upright version, consecutive placement without loss of pitchcontact pitch 5.0 mm

KRESS 03/02 - 07/04

Screw terminal block, clamp with wire protector, upright versioncontact pitch 10.0 mm

KRESW

Screw terminal block, clamp with wire protector, 45° angle version, with test hole, stringable without loss of pitchcontact pitch 5.0 mm

Lumberg: KRM (Series 61 | Screw terminal blocks, pitch 3.5/5.0/10.0 mm)

KRM

Screw terminal block, clamp with wire protector, upright version, consecutive placement without loss of pitchcontact pitch 5.0 mm

KRMC

Micro screw terminal block, clamp with wire protector, upright version, consecutive placement without loss of pitchcontact pitch 3.5 mm

6320

Miniature screw terminal block, with lift clamp without protection against misplacing, upright version, with test hole, consecutive placement without loss of pitchcontact pitch 5.0 mm

6322

Miniature screw terminal block, with lift clamp without protection against misplacing, 35° angle version, with test hole, consecutive placement without loss of pitchcontact pitch 5.0 mm

6324

Miniature screw terminal block, with lift clamp without protection against misplacing, right angle version, with test hole, consecutive placement without loss of pitchcontact pitch 5.0 mm

Lumberg: KRE (Series 61 | Screw terminal blocks, pitch 3.5/5.0/10.0 mm)

KRE

Screw terminal block, with lift clamp with protection against misplacing, upright version, consecutive placement without loss of pitchcontact pitch 5.0 mm

KREG

Screw terminal block, with lift clamp with protection against misplacing, with stronger screw, upright version, consecutive placement without loss of pitchcontact pitch 5.0 mm

KREN

Screw terminal block for mains supply, with lift clamp with protection against misplacing, upright versioncontact pitch 10.0 mm

Series 65 | Pluggable screw terminal blocks on socket boards, pitch 5.0 mm

Space-saving solution of pluggable screw termination, no mismating, with locking. Lead sections up to 4.0 mm². For signal and load currents up to 10 A, pitch 5.0 mm (.197").

Lumberg: KB (Series 65 | Pluggable screw terminal blocks on socket boards, pitch 5.0 mm)

KB

Socket board, upright, solder pins single row, consecutive placement without loss of pitch

Lumberg: KBQ (Series 65 | Pluggable screw terminal blocks on socket boards, pitch 5.0 mm)

KBQ

Socket board, upright, solder pins dual row staggered, consecutive placement without loss of pitch

Lumberg: KBW (Series 65 | Pluggable screw terminal blocks on socket boards, pitch 5.0 mm)

KBW

Socket board, angular, solder pins single row, with retaining hooks for printed circuit board edge, consecutive placement without loss of pitch

KBWO

Socket board, angular, solder pins single row, consecutive placement without loss of pitch

Lumberg: KS (Series 65 | Pluggable screw terminal blocks on socket boards, pitch 5.0 mm)

KS

Pluggable screw terminal block, clamp with wire protection, consecutive placement without loss of pitch, without side walls

Lumberg: KSC (Series 65 | Pluggable screw terminal blocks on socket boards, pitch 5.0 mm)

KSC

Pluggable screw terminal block, clamp with wire protection, consecutive placement without loss of pitch, with side walls

Series 67 | Pluggable terminal blocks on pin headers, pitch 5.08 mm

Connectors with screw terminals and insulation displacement termination (IDT) for automated harnessing, many versions. Compatible mating with many products in the market. For signal and load currents up to 16 A, pitch 5.08 mm (.200").

6770

Pluggable terminal block, insulation displacement technique (IDT), with locking and test hole, cable departure 90° or 180° to plugging direction, consecutive placement without loss of pitch
